Lens Mount
Canon RF
Sensor Resolution
Actual: 34.4
Megapixel
Effective: 32.5 Megapixel
Sensor Type
22.3 x 14.8 mm
(APS-C) CMOS
Crop Factor
1.6x
Image Stabilization
Sensor-Shift, 5-Axis
Built-In ND Filter
None
Capture Type
Stills & Video
Shutter Type
Electronic Shutter,
Mechanical Focal Plane Shutter
Shutter Speed
Mechanical Shutter:
1/8000 to 30 Seconds
Electronic Shutter: 1/16000 to 30 Seconds
Bulb/Time Mode
Bulb Mode
ISO Sensitivity
Photo: 100 to 32,000
in Manual, Auto Mode (Extended: 100 to 51,200)
Metering Method
Center-Weighted Average, Evaluative, Partial, Spot
Exposure Modes
Aperture Priority,
Manual, Program, Shutter Priority
Exposure Compensation
-3 to +3 EV (1/3, 1/2
EV Steps)
Metering Range
-2 to 20 EV
Continuous Shooting
Electronic Shutter:
Up to 30 fps at 32.5 MP for up to 126 Frames (JPEG) / 93 Frames (Raw)
Mechanical Shutter: Up to 15 fps at 32.5 MP for up to 224 Frames (JPEG) / 187
Frames (Raw)
Interval Recording
Yes
Self-Timer
2/10-Second Delay
EOS R7: Still Image
Capture
Aspect Ratio
1:1, 3:2, 4:3, 16:9
Image File Format
C-RAW, HEIF, JPEG,
Raw
EOS R7: Internal
Video Capture
Gamma Curve
Canon Log 3, HDR-PQ
Built-In Microphone Type
Stereo
EOS R7: External
Video Capture
IP Streaming
Yes
Media/Memory Card Slot
Dual Slot:
SD/SDHC/SDXC (UHS-II)
Video I/O
1x Micro-HDMI Output
Audio I/O
1x 1/8" / 3.5 mm
TRS Stereo Headphone Input
1x 1/8" / 3.5 mm TRS Stereo Microphone Output
Other I/O
1x USB Type-C (USB
3.2 / 3.1 Gen 2) Input/Output
Wireless
2.4 GHz Wi-Fi
(802.11b/g)
Bluetooth
Global Positioning
None (GPS, GLONASS,
etc.)
Size
3.0"
Resolution
1,620,000 Dot
Display Type
Free-Angle Tilting
Touchscreen LCD
Type
Built-In Electronic
(OLED)
Resolution
2,360,000 Dot
Eye Point
22 mm
Coverage
1
Magnification
Approx. 1.15x
Diopter Adjustment
-4 to +2
Focus Type
Auto and Manual Focus
Focus Mode
Continuous-Servo AF,
Manual Focus, Single-Servo AF
Autofocus Sensitivity
-5 to +20 EV
Built-In Flash
No
Maximum Sync Speed
1/320 Second
Flash Compensation
-3 to +3 EV (1/3, 1/2
EV Steps)
Dedicated Flash System
eTTL
External Flash Connection
Hot Shoe
Battery
1x LP-E6NH
Rechargeable Lithium-Ion
Battery Info
Required, included
Battery Material
Lithium-ion
Battery Type
Non universal
Battery Quantity
1
Tripod Mounting Thread
1x 1/4"-20
Female (Bottom)
Dimensions (W x H x D)
5.2 x 3.6 x 3.6"
(132 x 90.4 x 91.7mm)
Weight
1.2 lbs (530g) (Body
Only)
1.3 lbs (612g) (Body with Battery and Memory)

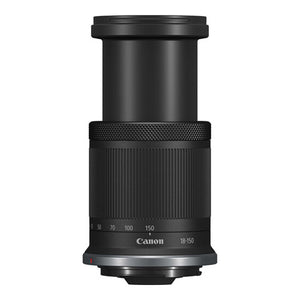

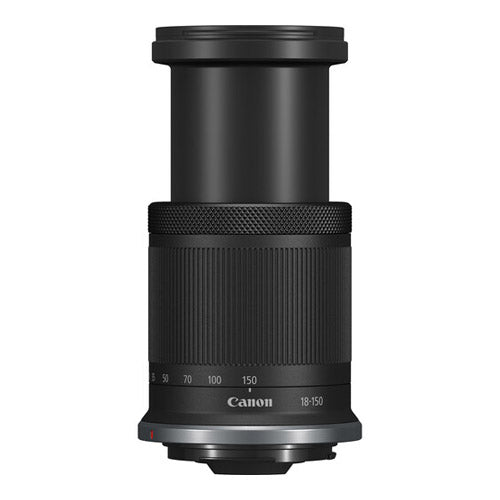

RF-S 18-150mm
f/3.5-6.3: Lens
Focal Length
18-150mm
Maximum and Minimum Aperture
f/3.5 - f/40
Lens Mount Type
RF Mount
Compatible Cameras
Canon EOS R-series,
APS-C and full-frame (automatic APS-C sensor cropping
if used on full-frame EOS R-series cameras)
Minimum Focusing Distance
0.17m (6.7") at
18mm
Maximum Magnification
0.44x (at 50mm)
Field of View, at Minimum Focus
Distance
Approx. 51mm x 34mm
(2.0 x 1.3") at 50mm (AF)
Angle of View (Diagonal)
Approx. 74 Degree 20'
- 10 Degree 25'
RF-S 18-150mm
f/3.5-6.3: Optical Design
Lens Construction
17 elements in 13
groups
Special Elements
(One) UD Lens, (Two)
Aspherical Lenses
Lens Coating
Canon SSC (Super
Spectra Coating)
Filter Size Diameter
55 mm
Aperture Blades
7
Image Stabilization
4.5 stops correction
with In-lens Optical Image Stabilization (6.5 stops correction with EOS R5
in-body coordinated Image stabilization)
RF-S 18-150mm
f/3.5-6.3: Focusing
Focusing Drive System
Canon STM (Leadscrew
type STM)
Full-time Manual Focusing
Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series
cameras)
Dual Pixel CMOS AF Coverage (H x V)
EOS R - Approx. 80% x
80%
EOS R5 - Approx. 80% x 80%
EOS FC6/FC7 - Approx. 100% x 100%
RF-S 18-150mm
f/3.5-6.3: Exterior Design
Control Ring
Dual-function Manual
focus ring / Control Ring (selected using camera menu)
Manual Focus Ring
Electronic ring
system
Full-time Manual focus possible
No physical limit to ring rotational angle
AF/MF Switch
None - focus mode
selected in camera menu
MF/Control Ring Switch
None - must be
selected in camera menu
Distance Scale
None Distance scale available in EVF or Live View LCD screen of compatible
EOS R-series cameras
Distance Limiter Switch
None
Dust / Weather Resistant Construction
None
RF-S 18-150mm
f/3.5-6.3: Physical
Dimensions (Dia. x L)
Approx. 2.7 x 5"
(69 x 126.7mm)
Weight
Approx. 10.9 oz
(310g)
