Product Series
N/A
Color
Black
Lens Mount
Canon RF
Lens Included
Without Lens
Format/Size
Full-Frame/35.9 x
24mm
Type
CMOS
Pixels
Actual: 27.1
Megapixel
Effective: 26.2 Megapixel
Aspect Ratio
3:2 (Horizontal:
Vertical)
Dust Reduction System
Yes
Image Stabilization
Digital, 5-Way
File Format
Still Images: JPEG,
RAW
Movies: AVC/H.264, MP4
Audio: AAC, Linear PCM
RAW Output
14-Bit
Video Recording
4K (UHD) 3840 x
2160: 23.98 fps, 25.00 fps
Full HD (1920 x 1080): 59.94 fps, 50.00 fps, 29.97 fps, 25.00 fps, HDR Movies,
29.97 fps, 25.00 fps
HD (1280 x 720): 59.94 fps, 50.00 fps, 29.97 fps, 25.00 fps, HDR Movies
Aspect Ratio
3:2, 4:3, 16:9, 1:1
File Size
3:2 Aspect Ratio:
Large/RAW/C-RAW: 6240 x 4160, Medium: 4160 x 2768, Small 1: 3120 x 2080, Small
2: 2400 x 1600
1.6x (Crop): Large/RAW/C-RAW: 3888 x 2592, Small 2: 2400 x 1600
4:3 Aspect Ratio: Large/RAW/C-RAW: 5536 4160, Medium: 3680 x 2768, Small 1:
2768 x 2080, Small 2: 2112 x 1600
16:9 Aspect Ratio: Large/RAW/C-RAW: 6240 x 3504, Medium: 4160 x 2336
File Size
3:2 Aspect Ratio:
Large/RAW/C-RAW: 6240 x 4160, Medium: 4160 x 2768, Small 1: 3120 x 2080, Small
2: 2400 x 1600
1.6x (Crop): Large/RAW/C-RAW: 3888 x 2592, Small 2: 2400 x 1600
4:3 Aspect Ratio: Large/RAW/C-RAW: 5536 4160, Medium: 3680 x 2768, Small 1:
2768 x 2080, Small 2: 2112 x 1600
16:9 Aspect Ratio: Large/RAW/C-RAW: 6240 x 3504, Medium: 4160 x 2336
Print
N/A
Maximum Recording Time
MOV: 29 min. 59
sec.
Camera Start-up Time/Shutter Lag
Approx. 0.82 sec. /
N/A
Picture Style
Auto
Standard
Portrait
Landscape
Fine Detail
Neutral
Faithful
Monochrome
User Defined 1-3
In Scene Intelligent Auto, [Auto] will be set automatically.
[Standard] is the default setting for [User Def. 1-3]
Microphone
Built-In Mic: With
Video (Stereo)
Touch Screen
Yes
Size
3"
Technology/Resolution

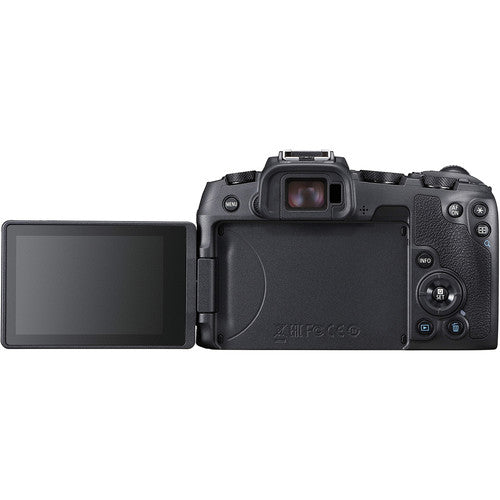

Rear Screen Swivel
Touchscreen LCD (1,040,000)
Adjustable Angle
N/A
Brightness Control
Manually adjustable
to one of seven brightness levels
Screen Coverage
Approx. 100%
vertically/horizontally
Type
OLED color electronic viewfinder
Resolution
2,360,000 Dots
Viewfinder Size
0.39"
Eye Point
22.00mm
Diopter Adjustment
-4 to +1 m
Field Coverage
1
Viewfinder Magnification
Approx. 0.70x (with
50mm lens at infinity, -1 m-1)
Playback Functions
Single image display
No information display
Basic information display
Detailed shooting information display
Detailed information
Lens/Histogram information
White balance information
Picture Style information 1
Picture Style information 2
Color space/Noise reduction information
Lens aberration correction information 1
Lens aberration correction information 2
Record of sent images
GPS information
Shutter Type
Electronically
controlled focal-plane shutter
Shutter Speed
1/4000 to 30 sec.,
bulb (total range of all shooting modes)
X-sync at 1/180 sec
ISO sensitivity
Auto, 100 to 40000
(Extended Mode:50 to 102400)
Continuous Shooting
Up to 5 fps at 26.2
MP for Unlimited Frames in JPEG Format
Up to 5 fps at 26.2 MP for up to 50 Frames in Raw Format
Remote Control
N/A
Metering
Center-weighted average metering
Metering brightness range: EV -1 - 20 (at 73A deg.
F/23A deg. C, ISO 100)
AF point-linked evaluative metering
For face detection with Face detection + Tracking AF.
Exposure Mode
Modes: Aperture
Priority, Manual, Program, Shutter Priority
Exposure Compensation
Manual: A+/-3 stops
in 1/3- or 1/2-stop increments
AEB: A+/-3 stops in 1/3- or 1/2-stop increments
Metering Range
EV -3.0 to EV 20.0
White Balance Modes
Auto, Cloudy, Color Temperature, Custom, Daylight, Flash, Fluorescent
(White), Shade, Tungsten
Scene Modes
N/A
AE Lock
Auto AE lock
The metering mode for AE lock after focus can be customized
Manual AE lock
In the Fv, P, Tv, Av and M modes, enabled with the AE
lock button. (Press again to update.)
Enabled in all metering modes
Self Timer
2, 10 Seconds
AE Bracket
N/A
Focus Mode
Continuous-Servo AF
(C), Single-servo AF (S)
Autofocus Points
Phase Detection:
4779
AF Assist Beam/Illuminator
Yes
AF Lock
No
Built In Flash
No
Guide Number
N/A
Flash Mode
N/A
Flash Range
N/A
Flash Coverage
N/A
Flash Control
External
Flash Compensation
-3 EV to +3 EV (in
1/3 or 1/2 EV steps)
Maximum Sync Speed
Mechanical Shutter:
1/180 Second
External Flash Connection
Hot Shoe
Microphone Jack
1/8"
Microphone
Headphone
1/8" Headphone
HDMI
HDMI C (Mini)
USB
USB 2.0, USB Type-C
Wi-Fi
Yes
NFC
No
Battery
1x LP-E17
Rechargeable Lithium-Ion Battery Pack, 7.2 VDC, 1040 mAh
Battery Life
N/A
AC Power Adapter
ACK-E18 (AC-6EN
& DR-E18) (Not Included)
Compatible Media
SD/SDHC/SDXC
Dimensions (WxHxD)
5.2 x 3.3 x
2.8" (13.21 x 8.38 x 7.11cm)
Weight
1.07 lbs (0.49 kg)
Face Detection
Yes
Other Functions
N/A
