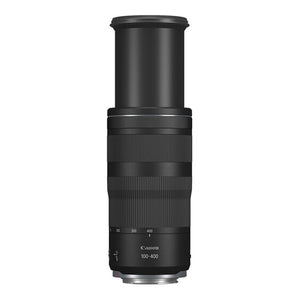

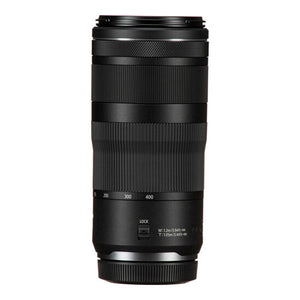

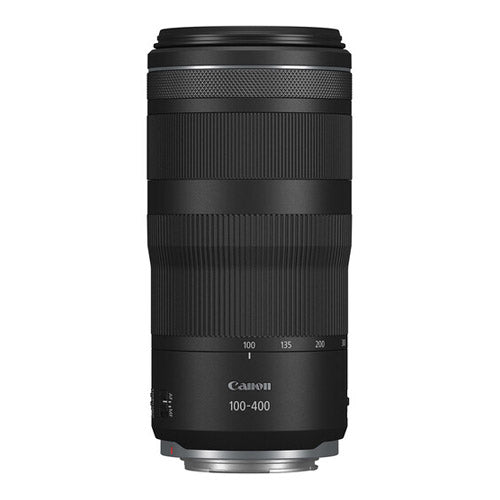

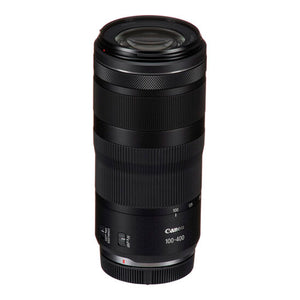

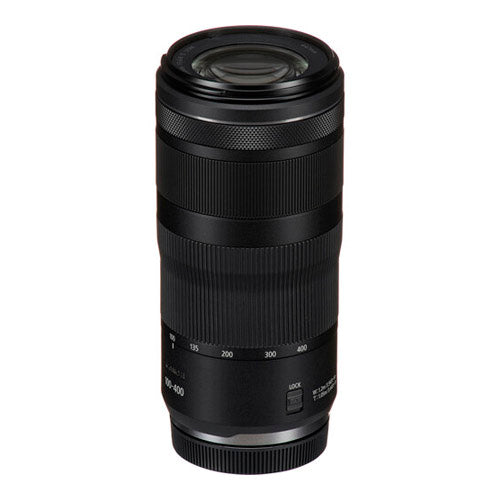

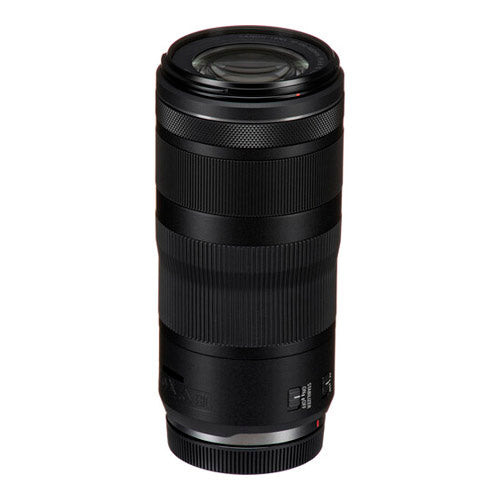

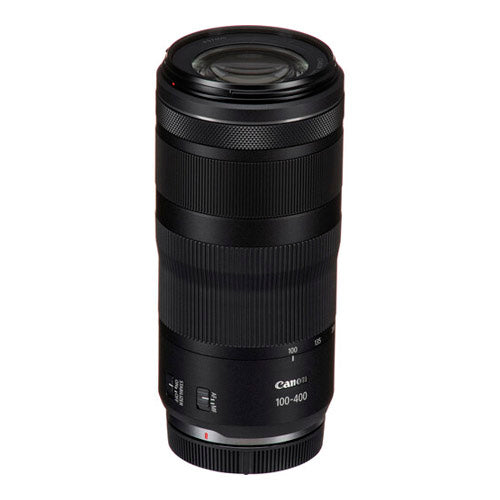

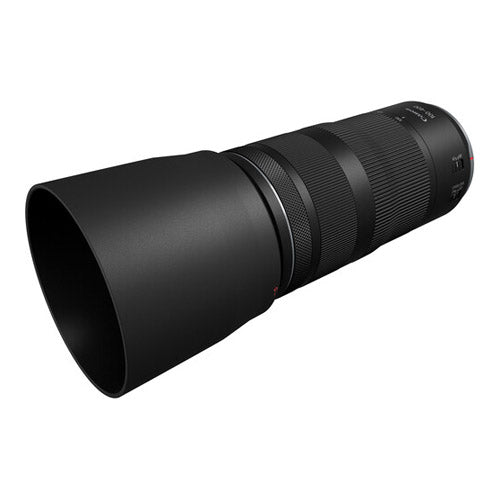

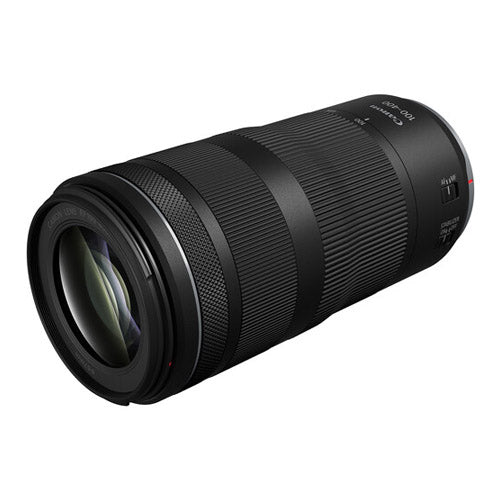

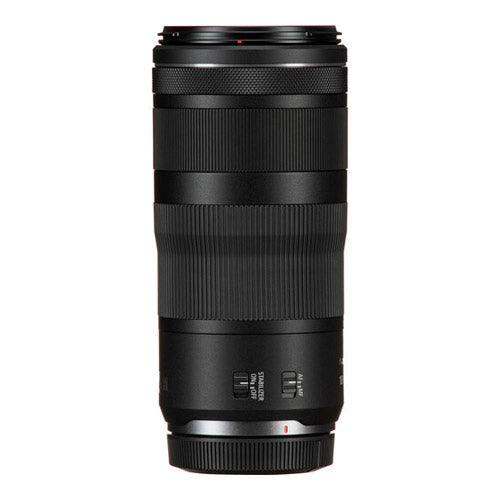

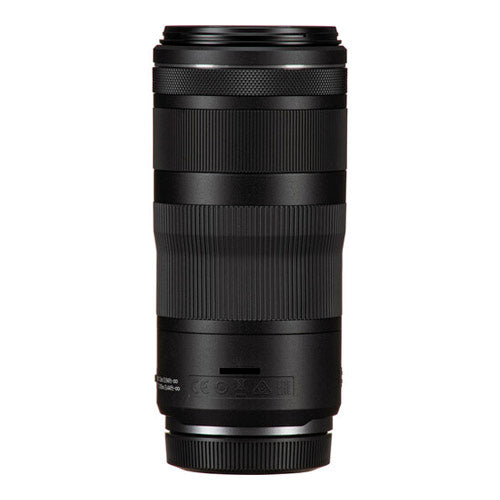

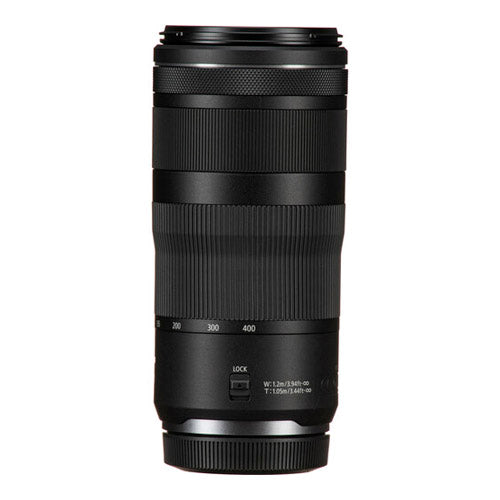

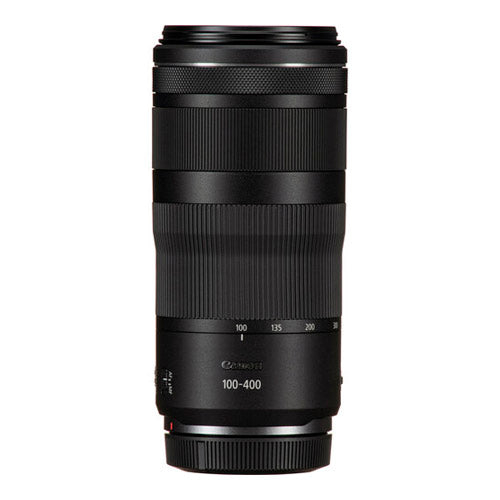

The Canon RF 100-400mm f/5.6-8 IS USM is an agile telephoto-zoom with a portable body factor that is ideal for shooting animals, sports, and travel. This zoom's expanded range allows it to achieve super-telephoto reach while maintaining a relatively slim, light design and supporting both Nano USM AF and Coordinated IS, which work together to improve focus performance and reduce camera shake by up to 6 stops.
Throughout the zoom range, the lens' optical design makes use of specialised features to control a number of aberrations and generate images with exceptional sharpness and clarity. With a maximum magnification of 0.41x at the 400mm setting, close-focusing performance is also available for up-close photography of objects as small as a credit card.
- Long-reaching telephoto zoom lens is designed for use with full-frame Canon RF-mount mirrorless cameras.
- Modest f/5.6-8 maximum aperture range promotes a relatively compact, lightweight form factor.
- One Ultra Low Dispersion element is featured toward the front of the optical design and helps to reduce chromatic aberrations and color fringing throughout the zoom range.
- One aspherical element helps control distortion and promotes a high degree of sharpness.
- Super Spectra Coating has been applied to minimize flare and ghosting for improved contrast and color fidelity when working in strong lighting conditions.
- An Optical Image Stabilizer helps to minimize the appearance of camera shake by 5.5 stops to better enable working in low-light conditions and with slower shutter speeds. Also, when working with select cameras, up to 6 stops of stabilization may be available with the Coordinated Optical Image Stabilizer and In-Body Image Stabilizer.
- Nano USM system utilizes both a ring type USM and an STM mechanism to realize quick and accurate focusing that is also smooth and near silent to suit both photography and video applications. This focusing system also affords full-time manual focus control when working in the one-shot AF mode.
- Close focusing capabilities are available throughout the zoom range, with a maximum magnification of 0.41x available at the 400mm position and a minimum focusing distance of 2.9' possible at the 200mm position.
- Rounded 9-blade diaphragm contributes to a pleasing bokeh quality.
- Configurable Control Ring can be used to adjust a variety of exposure settings, including aperture, ISO, and exposure compensation.
- Compatible with optional Extender RF 1.4x and Extender RF 2x teleconverters to further increase the effective focal length.
Lens
- Focal Length
- 100-400mm
- Aperture
- Max.: f/5.6 - f/8 (f/8 at 400mm position)
Min.: f/32 - f/45 (f/45 at 400mm position)
- Lens Mount Type
- RF Mount; Metal Mount

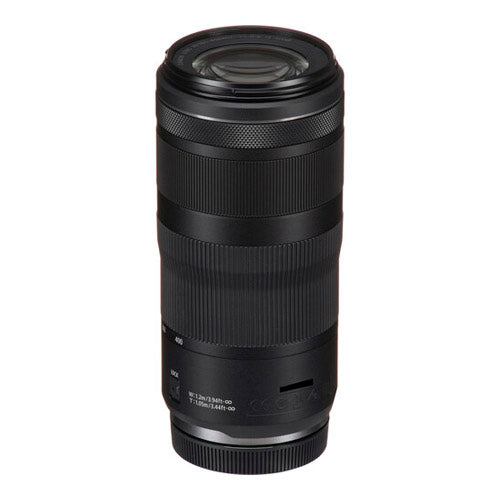

- Minimum Focusing Distance
- 3.94' (1.2m) at 100mm
2.89' (0.88m) at 200mm
3.44' (1.05m) at 400mm
- Maximum Magnification
- 0.41x, at 400mm (0.09x at 100mm)
- Field of View, at Minimum Focus Distance
- Approx.: (100mm) - 10.2 x 15.2 in. (260 x 386mm)
Approx.: (400mm) - 2.2 x 3.3 in. (57 x 85mm)
- Angle of View (Diagonal)
- Approx. 24 Degree - 6 Degree 10"
Extender RF Compatibility
- Compatibility
- Canon Extender RF1.4x / RF2x
- Equivalent Focal Length/Maximum Aperture
- RF1.4x - 140mm-560mm, f/8-11
RF2x - 200-800mm, f/11-16
- Maximum Close-focusing Magnification
- RF1.4x - 0.12x - 0.58x
RF2x - 0.18x - 0.83x
- Autofocus with EOS R Series Cameras
- Possible with either extender, at all zoom settings
- Image Stabilizer
- With EOS R series Cameras
Possible with either extender, at all zoom settings
Optical Design
- Lens Construction
- 12 elements in 9 groups
- Special Elements
- (One) UD-glass element
(One) Aspherical element
- Lens Coating
- Canon SSC (Super Spectra Coating)

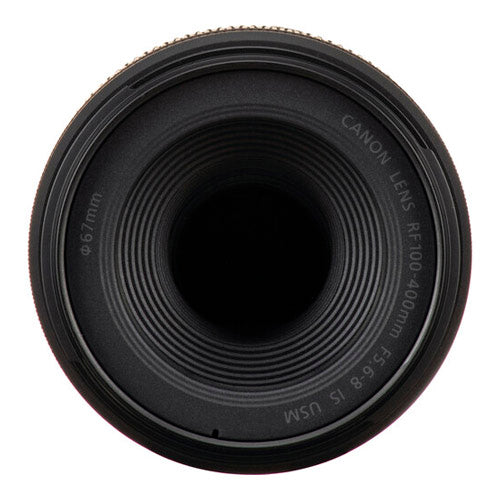

- Filter Size Diameter
- 67mm
- Aperture Blades
- 9; circular shape
Focusing
- Focusing Drive System
- Nano USM; rear focusing system
- Full-time Manual Focusing
- Yes (Lens Electronic MF)
- Dual Pixel CMOS AF Coverage
- (Horizontal x Vertical)
EOS R, EOS RP
Approx. 88% x 100%
With Extender RF1.4x - approx. 80% x 80%
With Extender RF2x - approx. 40% x 60%
EOS R5, EOS R6
Approx. 90% x 100%
Face+Tracking horizontal: approx. 100% x 100%
With Extender RF1.4x - approx. 80% x 80%
With Extender RF2x - approx. 40% x 60%
Image Stabilization

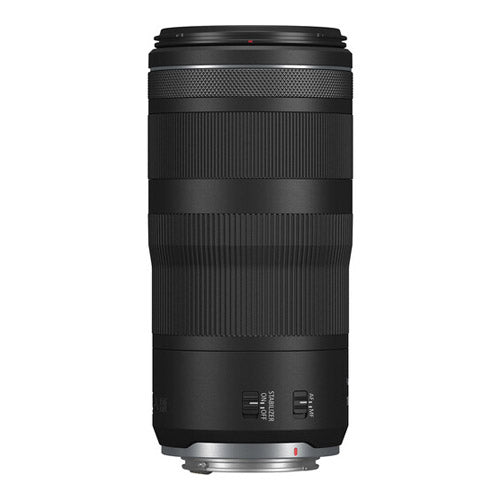

- IS on-off
- Image Stabilizer switch, on lens barrel
- Optical Image Stabilization
- Provided
5.5 stops optical IS correction (at 400mm)
Conforms to CIPA test standards, using EOS R
- Coordinated IS
- (with EOS R-series cameras having In-Body Image Stabilization)
Provided
6 stops Coordinated IS correction (at 400mm)
Conforms to CIPA test standards, using EOS R-series cameras with In-Body Image Stabilization
- IS Mode Selection
- No (Automatic switching to panning correction IS, when panning is detected)
- Panning Mode Support (SCN mode)
- Supported
Exterior Design
- Control Ring
- Provided (with click-stops)
Programmable via "Customize Dials" in camera's Custom Functions menu
58 clicks per revolution
Clicks can be removed by Canon service center, for a service fee
- Manual Focus Ring
- Electronic ring system
Full-time Manual focus possible
No physical limit to ring rotational angle
- Distance Scale
- No
Distance scale available in EVF or Live View LCD screen of compatible EOS R cameras
- Distance Limiter Switch
- No
- Dust/Weather Resistant Construction
- No
Physical
- Dimensions (Dia x L)
- Maximum Outer (Approx.): 3.13 x 6.48" (79.5 x 164.5mm)
- Weight
- Approx.: 22.4 oz (635g)
- RF-Mount Lens/Full-Frame Format
- Aperture Range: f/5.6 to f/45
- One UD Element, One Aspherical Element
- Super Spectra Coating
- Nano USM AF Motor
- Maximum Magnification: 0.41x at 400mm
- Optical Image Stabilizer
- Customizable Control Ring
- Rounded 9-Blade Diaphragm
- Canon RF 100-400mm f/5.6-8 IS USM Lens
- Canon E-67 II 67mm Lens Cap
- Canon Lens Dust Cap RF
