DESCRIPTION

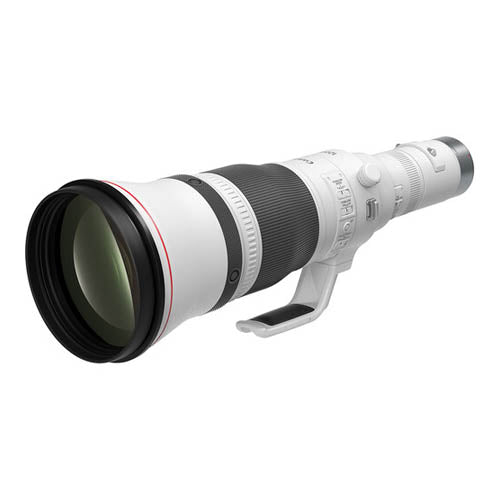

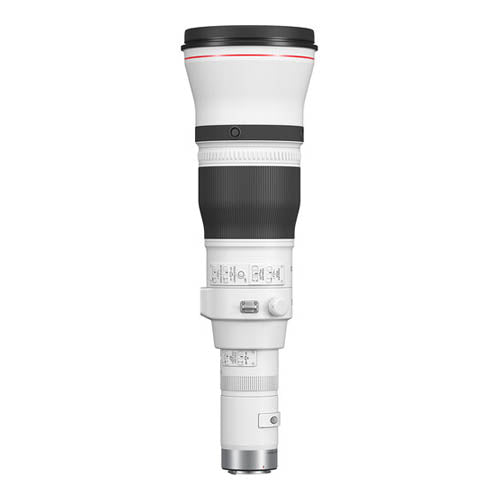

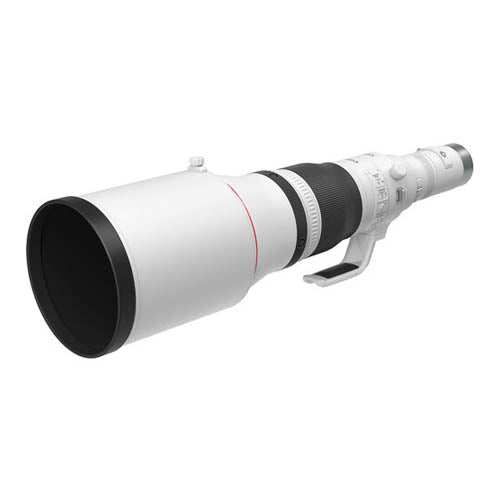

Canon RF 1200mm f/8L IS USM Overview
Colossal Focal Length, Lightweight Design
Unparalleled length with a distinctly compact and lightweight design, the Canon RF 1200mm f/8 L IS USM is a super-telephoto prime offering a premium mixture of optics quality, intuitive handling, and professional-grade durability. As one of the longest focal lengths available, this lens excels in wildlife and sports applications, offering uniquely close-up views of distant subjects. Combined with responsive AF, apt image stabilization, and a surprisingly lightweight design, the 1200mm f/8 is a specialized lens with a versatile feature-set.
L Series Optics
- Featuring an optical design based on past EF and RF super-telephoto lenses, this lens features top-range optics designed for the most demanding shooting applications.
- Two fluorite, one Super Ultra Low-Dispersion (UD), and one UD element virtually eliminate chromatic aberrations for outstanding clarity and color accuracy, void of chromatic aberrations or fringing.
- Advanced optical design also contributes to the sleeker, more portable form factor of this RF-mount, mirrorless lens.
- Both Air Sphere and Super Spectra Coatings improve image quality by maintaining high contrast and color accuracy while reducing lens flare and ghosting when working in strong lighting conditions.
- Rounded nine-blade diaphragm contributes to a smooth bokeh quality.
USM Autofocus and Image Stabilization
- Ultrasonic Motor delivers fast, accurate, and near silent autofocus performance to benefit both photo and video applications.
- Impressively close 14.1' minimum focusing distance, and a maximum magnification of 0.29x, suit working with nearby subjects, such as close-range wildlife, birds, and athletes.
- Variable speed manual focusing offers three options for greater focusing control and full-time manual focus support permits making focus adjustments without switching modes.
- Two focus presets can be stored for immediate recall to a specified focus distance.
- Focus range limiter improves responsiveness by constraining the usable focusing range.
- Benefitting handheld and monopod-based shooting, Optical Image Stabilization compensates for 4 stops of camera shake for sharper imagery. Due to the long focal length, in-body image stabilization, or Coordinated IS, from EOS R-series bodies is not supported with with this lens.
Intuitive Handling and Professional Reliability
- Relatively lightweight and compact, this 1200mm f/8 lens weighs 7.4 lb and measures 21.1"-long, making it realistic to use atop a monopod or even handheld for short periods of time.
- Built-in rotating tripod mount suits working with the lens atop a monopod or tripod and enables quick switching between vertical and horizontal shooting orientations.
- Weather-sealed design for reliable use in inclement conditions.
- Fluorine coating on the front element helps repel moisture, dust, and fingerprints and is also easier to clean.
- Distinctive heat-resistant white paint finish.
- Accepts drop-in style 52mm filters toward the rear of the lens.
- Compatible with optional Extender RF 1.4x and 2x teleconverters for further extending the effective reach of this lens.
SPECIFICATIONS
Lens
- Focal Length
- 1200mm
- Maximum and Minimum Aperture
- f/8 - f/64
- Lens Mount Type
- RF Mount, metal
- Compatible Cameras
- Canon EOS R-series
- Minimum Focusing Distance
- 14.1' (4.3m)
- Maximum Magnification
- 0.29x
- Field of View, at Minimum Focus Distance
- Approx. 9.5 x 6.3" (241 x 161mm)
- Angle of View (Diagonal)
- 02 Degree 05'
RF Extender Compatibility
- Canon RF Extender 1.4x/2x
- Compatible
- Equivalent Focal Length
- RF1.4x - 1680mm f/11
- Maximum Aperture
- RF2x - 2400mm f/16
- Max close-focusing magnification
- RF1.4x - 0.41x
RF2x - 0.60x
- Autofocus with EOS R-series cameras
- Possible with either extender (as of 2/2022)
- Image Stabilizer w/EOS R-series cameras
- Possible with either extender (as of 2/2022)
Optical Design
- Lens Construction
- 26 elements in 18 groups
- Special Elements
- (2) Fluorite, (1) Super UD Lenses, (1) UD (Ultra-low Dispersion)
- Lens Coating
- Super Spectra Coating, Fluorine Coating, ASC
- Filter Size Diameter
- 52mm
- Aperture Blades
- 9, circular shape
- Image Stabilization
- 4 stops correction with In-lens Optical Image Stabilization
Focusing
- Focusing Drive System
- Canon USM low-speed drive (Ring USM)
- Full-time Manual Focusing
- Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
- Manual Focus Speed Selection
- Yes (1, 2, and 3 settings, via switch on lens)
1= fastest MF; 3= slowest MF rotation
- Focus Distance Range Selection
- Yes (3 positions, via switch on lens)
FULL - 14.1' (4.3m) - infinity
14.1' (4.3m) - 20m/65.6 feet
98.4' (30m) - infinity
- Dual Pixel CMOS AF Coverage (HxV)
- EOS R5/R6 - approx. 100% x 100%
EOS R - approx. 88% x 100%
- With Extender RF1.4x
- EOS R5/R6 - approx. 100% x 100%
EOS R - approx. 88% x 100%
- With Extender RF2x
- EOS R5/R6 - approx. 80% x 80%
EOS R - approx. 80% x 80%
- Power Focus
- Yes, via rotation of Playback Ring
Lens Focus Preset switch set to OFF; Focus Mode switch set to PF
Two focus speeds, based on ring rotation angle
Image Stabilization
- IS On-Off
- Image Stabilizer switch, on lens barrel
- Optical Image Stabilization
- Provided
4 stops correction (CIPA standard) with both EOS R and R5
- IS Mode Selection
- IS Modes 1, 2 and 3 (via switch on lens barrel)
Mode 1 - general shake correction
Mode 2 - correction during panning
Mode 3 - correction only during exposure
- Panning Mode Support (SCN Mode)
- Supported
Exterior Design
- Control Ring
- Dual-function Manual focus ring / Control Ring (selected using camera menu)
- Manual Focus Ring
- Electronic ring system
Full-time Manual focus possible
No physical limit to ring rotational angle
- AF/MF Switch
- Yes - AF/PF/MF Switch
- MF/Control Ring Switch
- None - must be selected in camera menu
- Distance Scale
- None
Distance scale available in EVF or Live View LCD screen of compatible EOS R-series cameras
- Distance Limiter Switch
- Full (2.6m to infinity) / 2.6m to 20m / 20m to infinity
- Focus Pre-set Function
- Yes, via Playback Ring on lens barrel
Off - On - On with beep tone, via lens switch
Distance memorized via Focus Preset button
Two distances can be memorized; immediate return to either via direction of Playback Ring
- Lens Function Buttons
- Yes; four positioned on lens barrel
(AF-Stop Buttons)
- Dust / Weather Resistant Construction
- Yes - rubber ring on lens mount
Physical
- Dimensions
- Approx. 6.6 x 21.1" (168 x 537mm)
- Weight
- Approx. 7.4 lbs (3.34kg)
KEY FEATURES
RF-Mount Lens/Full-Frame Format
Aperture Range: f/8 to f/64
Fluorite, Super UD, and UD Elements
Air Sphere and Super Spectra Coatings
Ring-Type USM AF System
Optical Image Stabilizer
Focus Range Limiter, Two Focus Presets
Customizable Electronic Focus Ring
Weather-Sealed Design, Fluorine Coating
Rotating Tripod Collar
BOX CONTENTS
- Canon RF 1200mm f/8 L IS USM Lens
- Canon Lens Cap E-185C
- Canon Lens Dust Cap RF
- Canon Lens Hood ET-160 (WIII)
- Canon Drop-In Screw Filter Holder 52 (WIII) with Protect Filter
- Lens Soft Case LS1200
- Canon Wide Lens Strap B
