DESCRIPTION

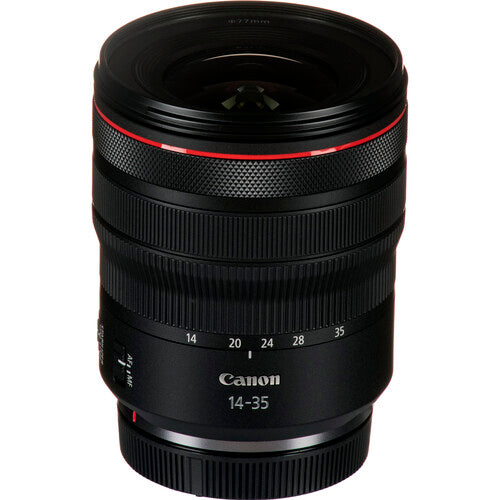

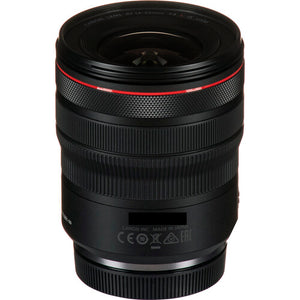

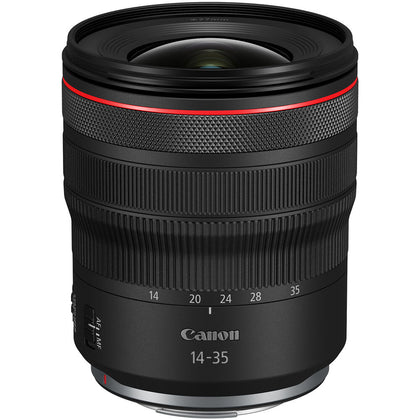

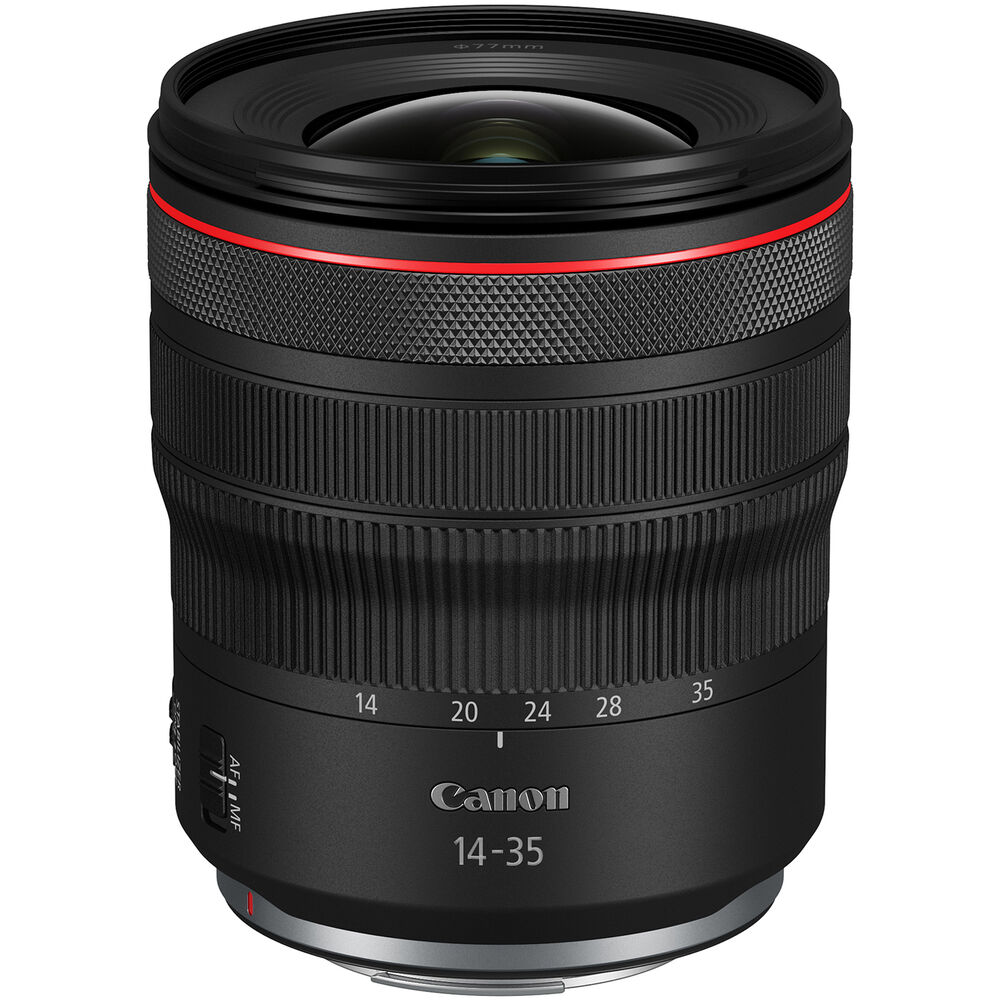

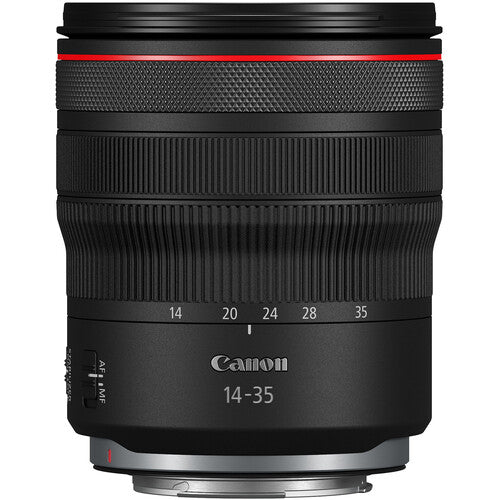

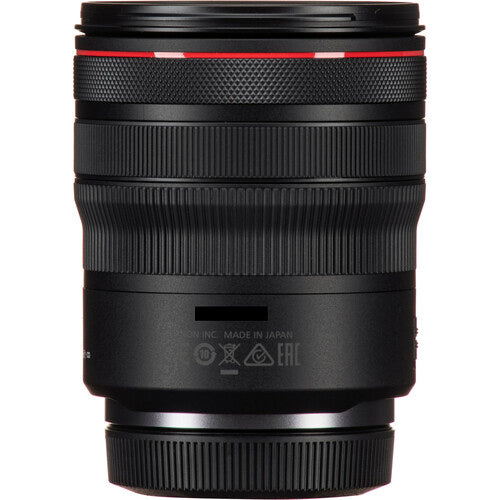

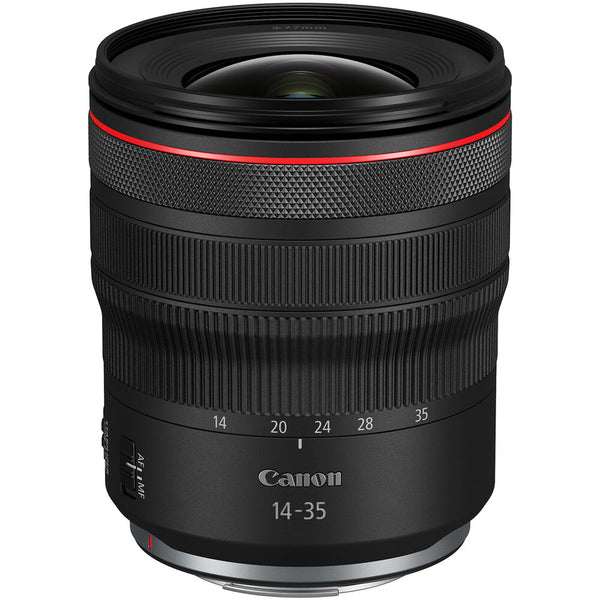

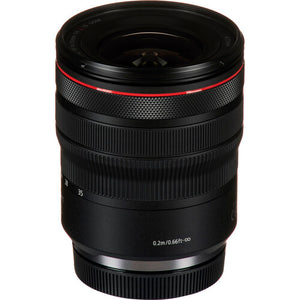

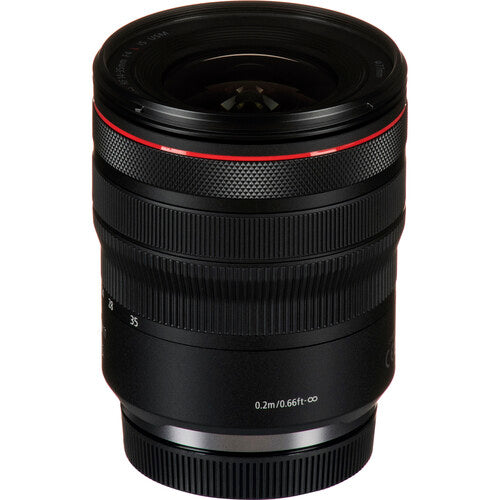

Canon RF 14-35mm f/4L IS USM Overview
Ultra-wide and stabilized, the Canon RF 14-35mm f/4 L IS USM is a uniquely versatile zoom characterize by its broad range, constant f/4 maximum aperture, and advanced optical design. Gaining a bit on the wide end, this zoom offers a broader field of view to suit landscape, nature, and architectural applications, and its modest maximum aperture also contributes to a sleek, highly portable design for walkaround shooting.
In terms of optics, the lens is befitting of its L-series designation and features three aspherical elements and three UD elements that produce a highly corrected image with high sharpness and accurate color rendering. A trio of unique coatings have also been applied to suppress flare and ghosting throughout the zoom rang. The L-series designation is also indicative of a robust physical design, and this 14-35mm is weather-sealed and features a fluorine coating on the exposed elements for further protection against trying weather conditions.
Unique among ultra-wides, this lens is also distinguished by its Optical Image Stabilizer that compensates for up to 5.5 stops of camera shake, or up to 7 stops when paired with cameras featuring IBIS. Additionally, there is also an apt Nano USM that yields fast and quiet autofocus performance and there is a minimum focusing distance of just 7.9" throughout the entire zoom range for creative wide-angle close-up shooting.
- Wide-angle zoom lens is designed for use with full-frame Canon RF-mount mirrorless cameras.
- Constant f/4 maximum aperture maintains consistent illumination throughout the zoom range.
- An Optical Image Stabilizer helps to minimize the appearance of camera shake by 5.5 stops to better enable working in low-light conditions and with slower shutter speeds.
- Up to 7 stops of correction when used on EOS R-series cameras with In-Body Image Stabilization.
- Nano USM system utilizes both a ring type USM and an STM mechanism to realize quick and accurate focusing that is also smooth and nearly silent to suit both photography and video applications. This focusing system also affords full-time manual focus control when working in the one-shot AF mode.
- Configurable Control Ring can be used to adjust a variety of exposure settings, including aperture, ISO, and exposure compensation.
- As a member of the esteemed L-series, this lens has a weather-resistant design that protects against dust and moisture to enable its use in inclement conditions.
SPECIFICATIONS
- Focal Length

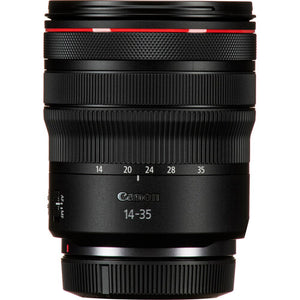

- 14-35mm
- Maximum and Minimum Aperture
- F4-F22 (at all zoom settings)
- Lens Mount Type
- RF Mount; Metal Mount
- Minimum Focusing Distance

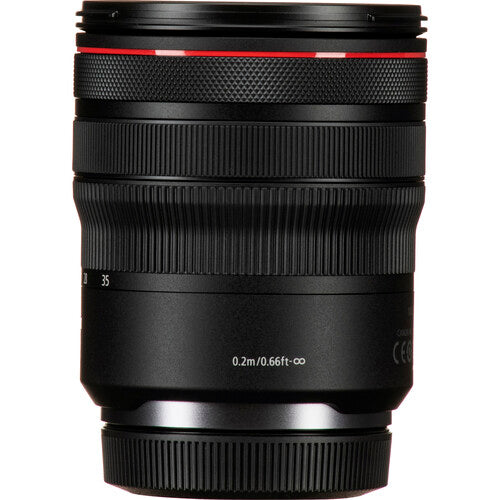

- 7.9" (0.2m), at all zoom settings
- Maximum Magnification
- 0.38x, at 35mm zoom setting
Fill frame with subject approx. 3.7 x 2.5 inches / 94 x 63mm in size, at 35mm zoom position
- Angle of View (Diagonal)
- 114 Degree 00' - 63 Degree 00'
- Lens Construction
- 16 elements in 12 groups
- Special Elements
- Three UD-glass elements, three Aspherical elements
Includes one UD Aspherical lens element
- Lens Coating
- Canon SSC (Super Spectra Coating)
Canon SWC (Sub-wavelength Structure Coating)
Canon ASC (Air Sphere Coating)
Fluorine coating on front surface of front element
- Filter Size

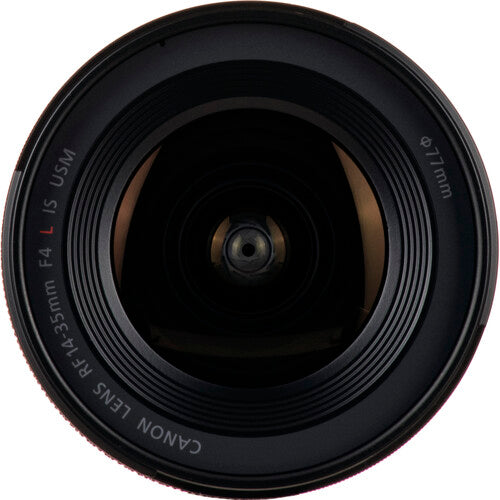

- Diameter: 77mm
- Aperture Blades
- 9; circular shape
- Lens Switches

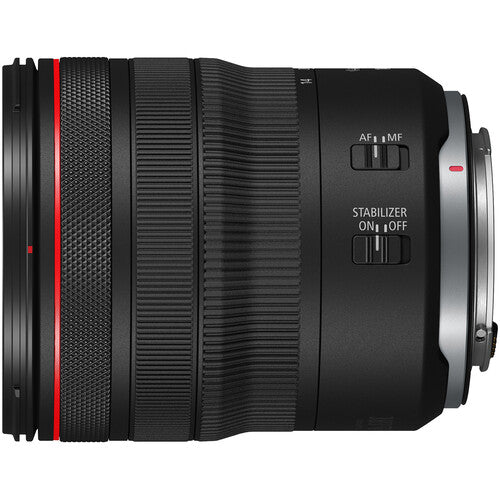

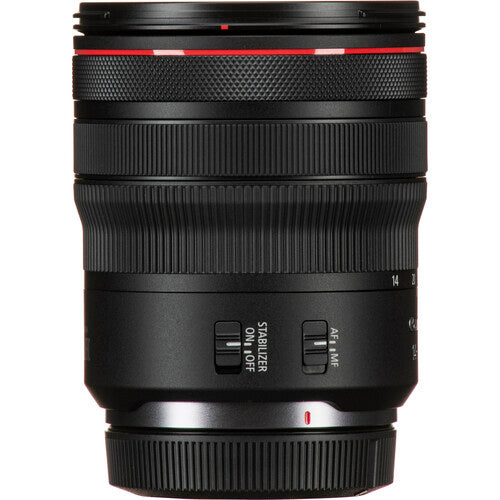

- AF/MF switch, Stabilizer ON/OFF switch
- Dust/Water Resistance
- Weather-resistant seals at lens mount, switches, zoom ring, focus ring, and Control Ring
- Focusing System
- Nano USM; rear focusing system
- Dual Pixel CMOS AF Coverage
- EOS R5, R6 - approx. 100% horizontal and vertical
EOS R, RP - approx. 88% (horizontal) x 100% (vertical)
- Full-time Manual Focusing
- Yes (One-Shot AF only)
- Control Ring
- Yes
Click-stops provided (60 clicks/full revolution)
Click stops can be removed by Canon service facility, for a service fee.
- IS Mode Selection
- None (automatic panning detection provided)
- Optical Image Stabilization
- Provided
5.5 stops optical IS correction with EOS R and RP
Conforms to CIPA test standards, using EOS R
- Coordinated IS
- (with EOS R5, R6) Up to 7 stops Coordinated IS correction
Conforms to CIPA test standards, using EOS R5
- Maximum Outer Dimensions (Dia x L)
- Approx. 3.3 x 3.9" (84.1 x 99.8mm)
Minimum length at approx. 22mm zoom position
Maximum length at 35mm zoom position - approx. 4.25" (107.9mm)
- Weight
- Approx. 1.2 lbs (540g)
KEY FEATURES
RF-Mount Lens/Full-Frame Format
Aperture Range: f/4 to f/22
Three UD Elements
Three Aspherical Elements
Air-Sphere and Fluorine Coatings
Nano USM AF System
Optical Image Stabilizer
Customizable Control Ring
Rounded 9-Blade Diaphragm
BOX CONTENTS
- Canon RF 14-35mm f/4 L IS USM Lens
- Canon E-77 II Lens Cap
- Canon Lens Dust Cap RF
- Canon LP1219 Soft Lens Case

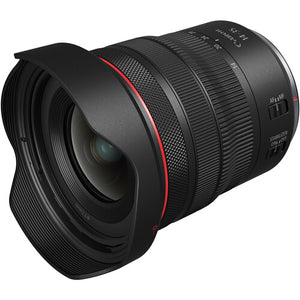

- Canon EW-83P Lens Hood
