DESCRIPTION

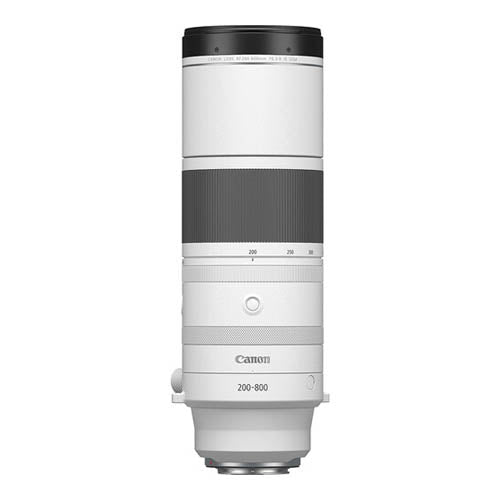

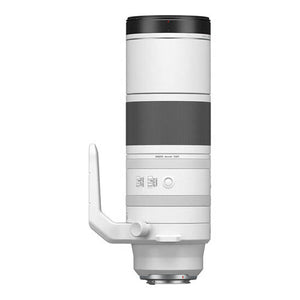

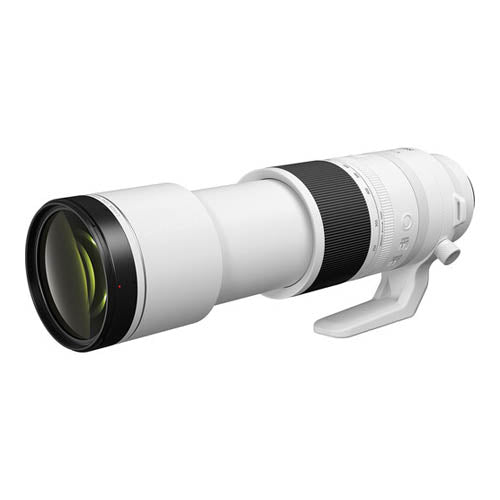

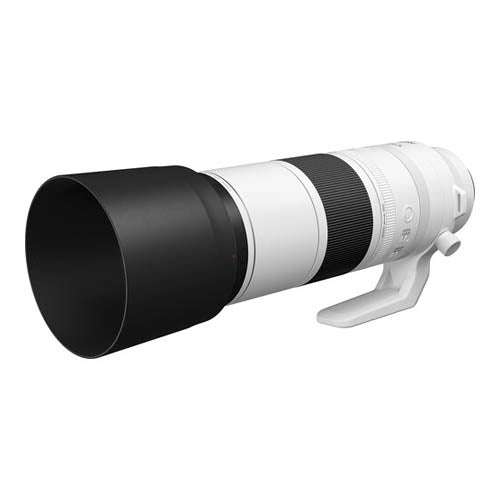

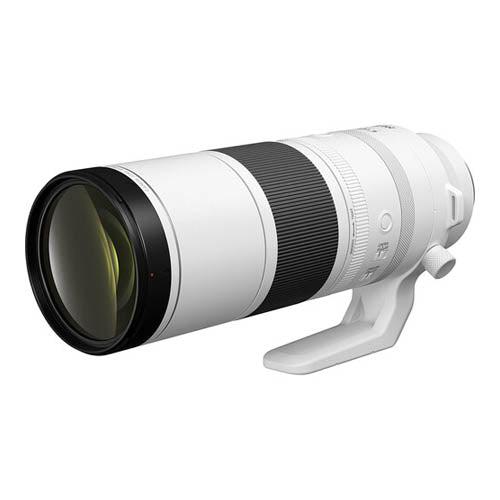

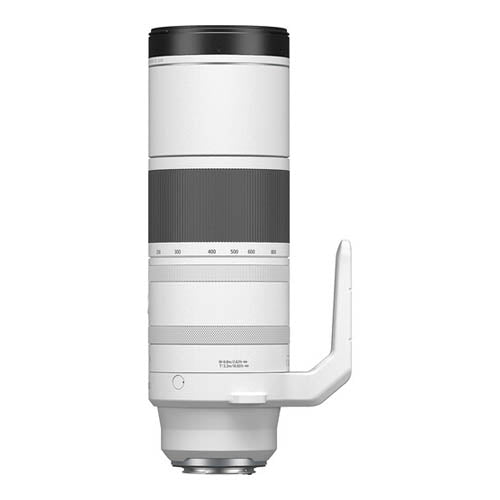

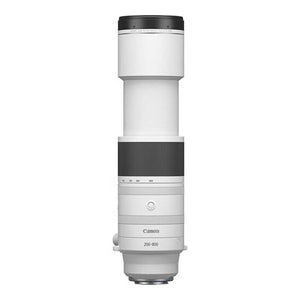

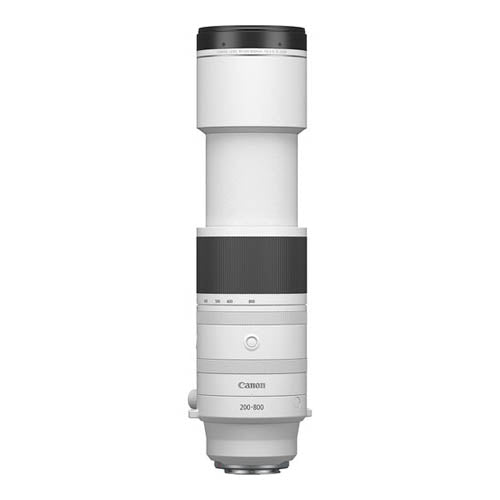

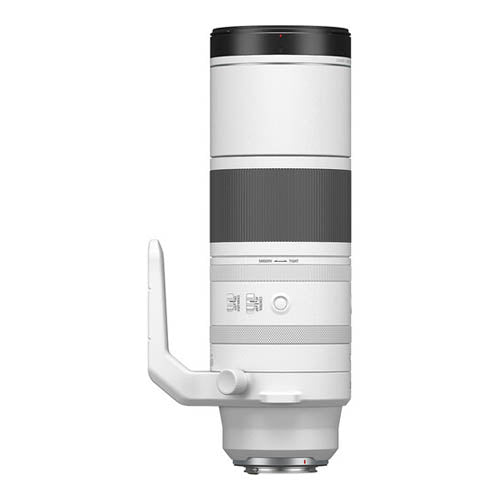

Canon RF 200-800mm f/6.3-9 IS USM Overview
Unparalleled Zoom Range
Distinguishing itself with an expansive and unique zoom range, the RF 200-800mm f/6.3-9 IS USM Lens from Canon provides superb optical performance while maintaining mobility. Its compact design is complemented by five and half stops of image stabilization to enable strong handheld performance. This lens provides a zoom range that excels in situations where you can't get closer to your subject without compromising your shot, such as wildlife, nature, and outdoors sports. Swift and nearly silent autofocusing is achieved through Canon's Nano USM drive system. A focus/control ring and two lens function buttons that are located on the barrel allow for greater control over settings adjustments. Also incorporated are three ultra-low dispersion elements to reduce chromatic and spherical aberrations as well as a Super Spectra coating to minimize ghosting and flare caused by lens surface reflection.
Excellent Operability
The focus/control ring on the lens barrel can directly adjust shutter speed, aperture, exposure compensation, and other settings. Two lens function buttons are also available on the barrel for immediate access to your preferred camera settings.
The signature white paint functions as a heat countermeasure when shooting for extended periods under harsh light and works together with the lens’s weather-resistant design to prevent damage from the elements.
SPECIFICATIONS
Lens
- Lens Mount Type
- RF Mount
- Focal Length
- 200-800 mm
- Maximum and Minimum Aperture
- f/6.3 - f/54
- Compatible Cameras
- Canon EOS R-series, full-frame and APS-C (focal length equivalent to approx.320-1280mm when used on an APS-C camera)
- Minimum Focusing Distance
- 2.62' (0.8m) (at 200mm), 5.91' (1.8m) (at 400mm)
9.19' (2.8m) (at 600mm), 10.83' (3.3m) (at 800mm)
- Maximum Magnification
- 0.25x (at 200mm), 0.2x (at 800mm)
- Field of View, at Minimum Focus Distance
- Approx. 135 x 90 mm / 5.3 x 3.5 in. (at 200 mm)
Approx. 173 x 115 mm / 6.8 x 4.5 in. (at 800 mm)
Approx. 192 x 128 mm / 7.5 x 5.0 in. (at 550 mm)
- Angle of View (Diagonal)
- Approx. 12 Degree - 3 Degree 05'
- Lens Construction
- 17 elements in 11 groups
- Special Elements
- 3 UD lenses
- Lens Coating
- Canon SSC (Super Spectra Coating)
- Filter Size Diameter
- 95 mm
- Aperture Blades
- 9
- Image Stabilization
- 5.5 stops correction with In-lens Optical Image Stabilization (5.5 stops correction with EOS R series in-body coordinated Image stabilization)
Focusing
- Focusing Drive System
- Canon Nano USM
- Full-time Manual Focusing
- Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
- Dual Pixel CMOS AF Coverage
- (Horizontal x Vertical):
EOS R/RP - Approx. 88% x 100%
EOS R5/R6 - Approx. 90% x 100%
EOS R3/R6 Mark II/R8 - Approx. 90% x 100%
EOS R7/R10/R50/R100 - Approx. 90% x 100%
Exterior Design
- Focusing / Control Ring
- Yes (Selection using focus mode/control selector switch.)
- AF/MF Switch
- Yes
- MF / Control Ring Switch
- Yes
- Distance Scale
- None (Electronic distance scale possible in viewfinder or LCD monitor, with compatible EOS R-series cameras)
- Distance Limiter Switch
- None
- Dust / Weather Resistant Construction
- Yes
Physical
- Dimensions (Dia. x L)
- Maximum Outer: Approx. 4 x 12.4" (102.3 x 314.1mm)
- Weight
- Approx. 4.5 lbs (2kg)
