DESCRIPTION

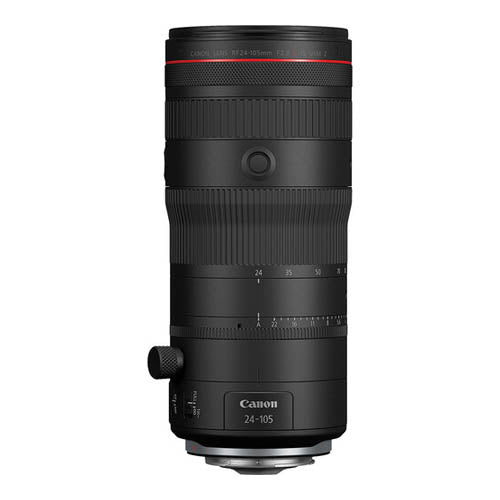

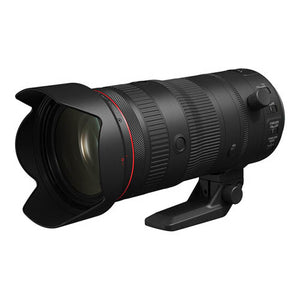

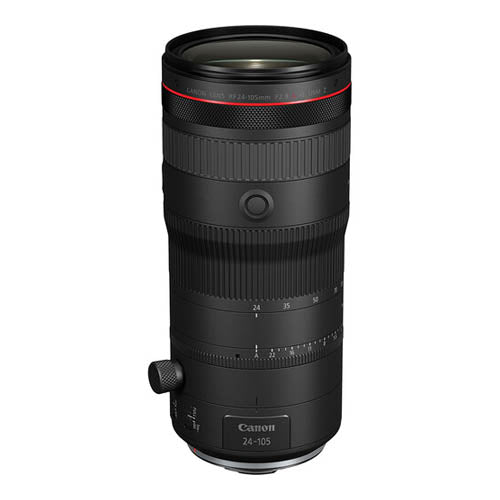

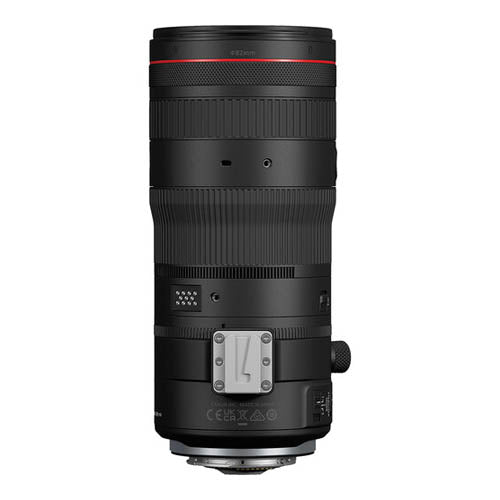

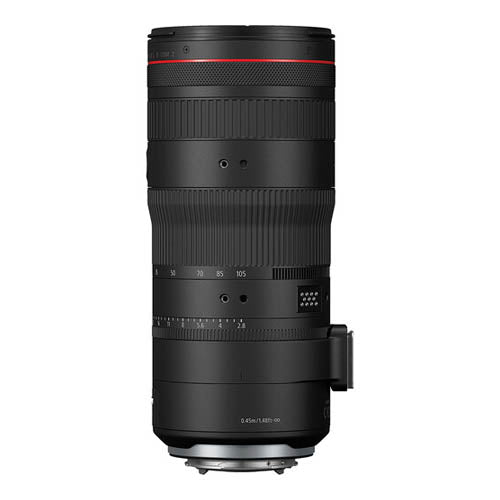

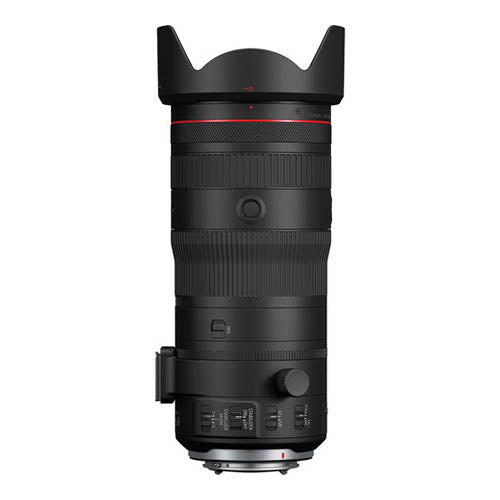

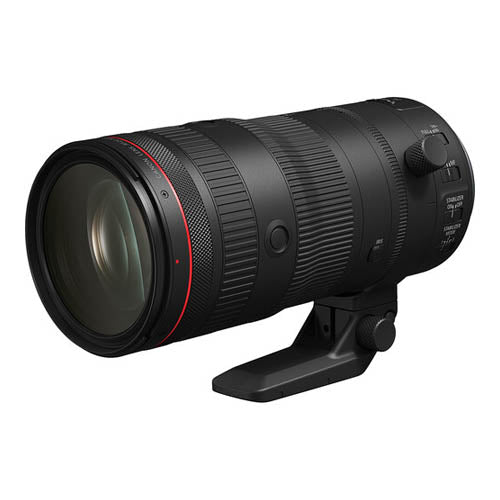

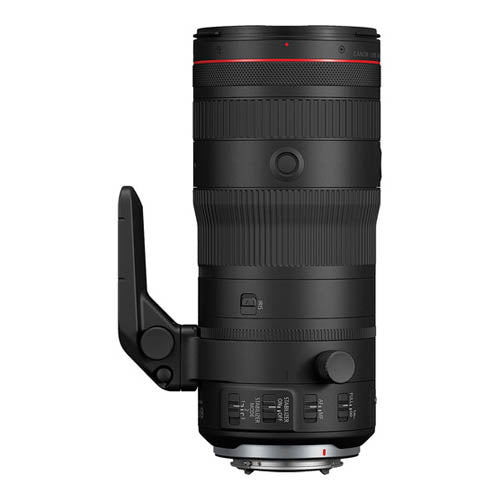

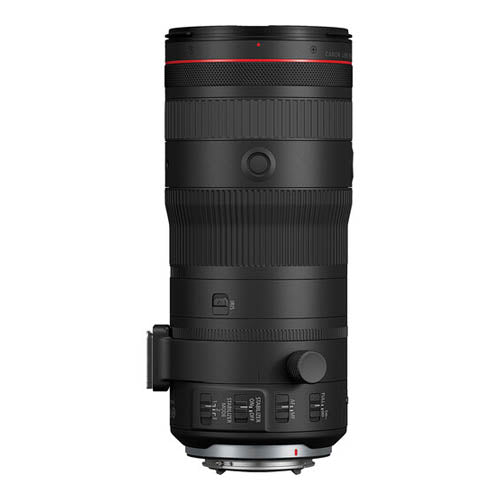

Canon RF 24-105mm f/2.8L IS USM Z Overview
World's First 24-105mm f/2.8
A powerful multiuse zoom for photo and video, the RF 24-105mm f/2.8 L IS USM Z Lens from Canon is the first of its kind at this focal length and aperture. By utilizing dual Nano USM motors, this lens achieves fast and nearly silent autofocusing. The constant f/2.8 aperture allows for optimal low light performance and provides flattering bokeh for portraits at any focal length. In-lens optical image stabilization offers five and a half stops of correction, or eight stops with Coordinated IS when paired with a compatible camera. Four ultra-low dispersion elements and three aspherical elements help create sharper images and reduce chromatic and spherical aberrations. Additionally, the RF 24-105mm f/2.8 benefits from Super Spectra, Air Sphere, and Fluorine coatings, which work together to minimize ghosting and flare caused by lens surface reflection.
Silent Nano USM Autofocus
Two Canon Nano USM autofocus motors allow smooth and responsive focusing performance from the RF 24-105mm f/2.8. Full-time manual focusing is also available. Eleven aperture blades render the out of focus areas of your frame to be more visually pleasing.
Practical in Any Shooting Scenario
With its constant f/2.8 aperture, the RF 24-105mm excels even in harsh lighting conditions making it a strong choice for weddings, events, and photojournalism. While many comparable lenses are capped at 70mm, this lens's ability to push to 105mm gives users the advantage of stronger portrait focal lengths.
Focus Ring with Tactile Feedback
As you rotate the focus ring in either direction you'll feel soft click-stops that give you a sense of how much you're adjusting.
SPECIFICATIONS
Lens
- Focal Length
- 24-105mm
- Maximum and Minimum Aperture
- f/2.8 - f/22
- Lens Mount Type
- RF Mount
- Compatible Cameras
- Canon EOS R-series, full-frame and APS-C (focal length equivelant to approx. 38.4-168mm when used on an APS-C camera)
- Minimum Focusing Distance
- 1.48' (0.45m) (at 24mm), 1.48' (0.45m) (at 105mm)
- Maximum Magnification
- 0.08x (at 24 mm), 0.29x (at 105 mm)
- Field of View
- At Minimum Focus Distance:
24mm: approx. 16.0 x 10.7" (408 x 272mm)
105mm: Approx. 4.8 x 3.2" (121 x 80mm)
- Angle of View (Diagonal)
- Approx. 84 Degree - 23 Degree 20'
Optical Design
- Lens Construction
- 23 elements in 18 groups
- Special Elements
- 4 UD elements, 3 Aspheric elements
- Lens Coating
- Canon SSC (Super Spectra Coating), ASC (Air Sphere Coating), Flourine coating
- Filter Size Diameter
- 82mm
- Aperture Blades
- 11
- Image Stabilization
- 5.5 Stops correction with In-lens Optical Image Stabilization (8.0 stops correction with EOS R series in-body coordinated Image stabilization)
Focusing
- Focusing Drive System
- (Two) Canon Nano USM focus motors
- Full-time Manual Focusing
- Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
- Dual Pixel CMOS AF Coverage (H x V)
- EOS R/RP/Ra/R100 - Approx. 88% x 100%
EOS R5/R6 - With face + tracking-priority AF: Approx. 100% x 100%
Other than with face + tracking-priority AF: Approx. 90% x 100%
EOS R3, R6, Mark II, R8 R7, R10, R50 - For whole area AF: Approx. 100% x 100%
For non-whole area AF when subject has been detected: Approx. 100% x 100%
When subject has not been detected: Approx. 90% x 100%
Exterior Design
- Focusing / Control Ring
- Yes, with click stops (click stops can be removed by a Canon service facility, for a fee)
- Manual Focus Ring
- Electronic ring system
Full-time Manual focus possible
No physical limit to ring rotational angle
- AF / MF Switch
- Yes
- Distance Scale
- None (Electronic distance scale possible in viewfinder or LCD monitor, with compatible EOS R-series cameras)
- Distance Limiter Switch
- Provided: Full/1 m to infinity
- Dust / Weather Resistant
- Yes
Physical
- Dimensions (Dia. x L)
- 3.5 x 7.8" (88.5 x 199mm)
- Weight
- 2.9 lbs (1.33kg)
