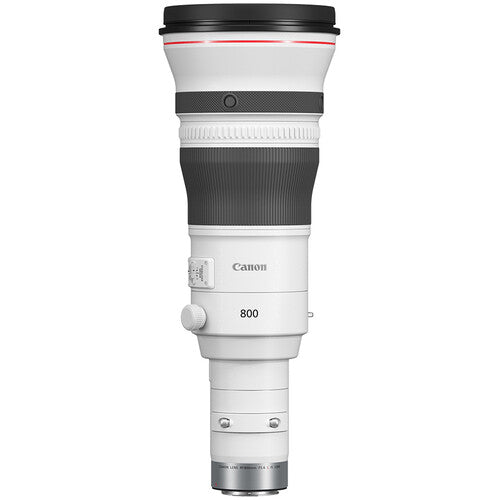

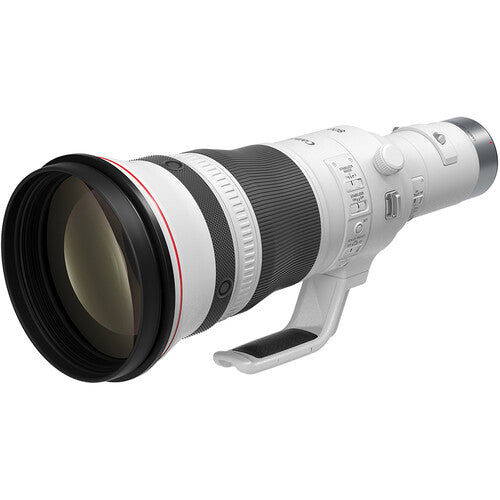

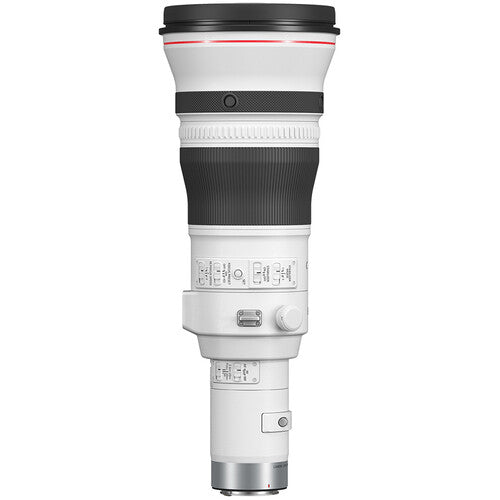

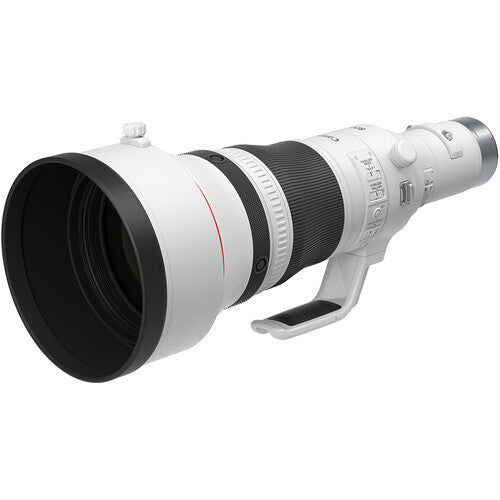

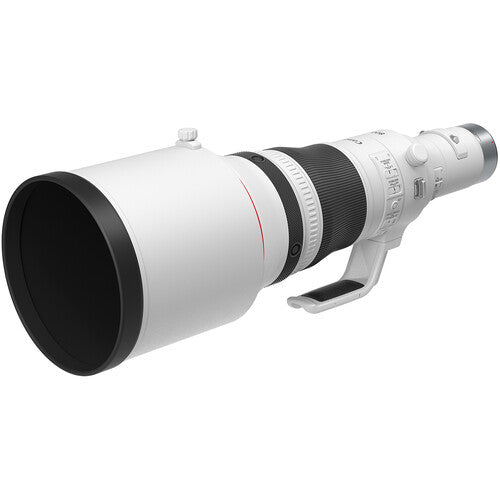

Canon RF 800mm f/5.6 L IS USM Lens

Name: Canon RF 800mm f/5.6 L IS USM Lens
Brand: Canon
SKU: 5055C002
Availability: InStock
Rating: 4.9 (257 reviews)

EMI Options

₹1,520,390

M.R.P. ₹1,599,995

Inclusive of all taxes

GST Invoice Available for Input Tax Credit

Credit Card EMI

EMI Options

Delivery

Pickup In-store

Secure Transaction

Brand Canon

Product Type Mirrorless Lens

SKU 5055C002

Rating

4.9 (257 ratings)

IN THE BOX

Canon RF 800mm f/5.6 L IS USM Lens
Canon Lens Cap E-180E
Canon Lens Dust Cap RF
Canon Lens Hood ET-155 (WIII)
Canon Drop-In Screw Filter Holder 52 (WIII) with Protect Filter
Canon Lens Soft Case LS600
Canon Wide Lens Strap B

KEY FEATURES

RF-Mount Lens/Full-Frame Format
Aperture Range: f/5.6 to f/64
Fluorite, Super UD, and UD Elements
Air Sphere and Super Spectra Coatings
Ring-Type USM AF System
Optical Image Stabilizer
Focus Range Limiter, Two Focus Presets
Customizable Electronic Focus Ring
Weather-Sealed Design, Fluorine Coating
Rotating Tripod Collar

GTIN: 13803340150 /* GTIN Display - Bottom of Description */ .gtin-display { display: flex; align-items: center; gap: 8px; margin-top: 1.25rem; padding: 0.75rem 0; color: #999; font-size: 0.9375rem; } .gtin-barcode-icon { width: 28px; height: 28px; color: #707070; flex-shrink: 0; } .gtin-label { color: #707070; font-weight: 400; } .gtin-value { color: #707070; font-weight: 400; letter-spacing: 0.5px; } @media (max-width: 768px) { .gtin-display { margin-top: 1rem; font-size: 0.875rem; } .gtin-barcode-icon { width: 24px; height: 24px; } } /* Base: Container padding */ .tt-collapse-block.prpage-tabs { padding-top: 0.75rem; } /* Base: Title styling */ .tt-collapse-block .tt-item .tt-collapse-title { font-size: 1rem !important; font-weight: 600 !important; line-height: 1.5 !important; margin: 0 !important; padding: 0 !important; display: flex; align-items: center; } /* Base: Content styling */ .tt-collapse-block .tt-item .tt-collapse-content { font-size: 0.875rem; line-height: 1.5rem; margin-top: 0.75rem; } /* Hide icons on mobile by default */ .tt-collapse-block .tt-item .tt-collapse-title .section-icon { display: none; } /* Desktop: Card-style layout */ @media (min-width: 769px) { /* Always show content - override theme.css padding-bottom: 22px */ .tt-collapse-block.prpage-tabs .tt-item .tt-collapse-content { display: block !important; padding-bottom: 0.5rem !important; /* Override 22px from theme.css */ } /* Card container with very subtle gradient */ .tt-collapse-block.prpage-tabs .tt-item { background: linear-gradient(180deg, #ffffff 0%, #fcfcfc 100%); border: 1px solid rgba(232, 232, 232, 0.8); border-radius: 12px; padding: 1.125rem 1.5rem 0.5rem 1.5rem !important; /* Reduced bottom padding */ margin-bottom: 1rem; box-shadow: 0 2px 8px rgba(0, 0, 0, 0.04); } .tt-collapse-block.prpage-tabs .tt-item:last-child { margin-bottom: 0; } /* Title row with icon - NO border-bottom */ .tt-collapse-block.prpage-tabs .tt-item .tt-collapse-title { display: flex; align-items: center; gap: 0.75rem; padding-bottom: 0 !important; border-bottom: none !important; margin-bottom: 0.625rem !important; /* 10px - Space between title and first bullet */ cursor: default; pointer-events: none; justify-content: flex-start; } /* Show icon on desktop */ .tt-collapse-block.prpage-tabs .tt-item .tt-collapse-title .section-icon { display: flex; flex-shrink: 0; width: 24px; height: 24px; align-items: center; justify-content: center; } .tt-collapse-block.prpage-tabs .tt-item .tt-collapse-title .section-icon svg { display: block; width: 24px; height: 24px; } /* Content area - override theme.css */ .tt-collapse-block.prpage-tabs .tt-item .tt-collapse-content { padding-left: 2.25rem !important; /* Align with title text (icon width 24px + gap 12px) */ margin-top: 0 !important; } /* List styling with black bullets (same color as text) */ .tt-collapse-block.prpage-tabs .tt-item .tt-collapse-content ul { margin: 0 !important; padding: 0 !important; list-style: none !important; } .tt-collapse-block.prpage-tabs .tt-item .tt-collapse-content ul li { position: relative; padding-left: 1rem; margin-bottom: 0.25rem; line-height: 1.5; color: #1d1d1f; } .tt-collapse-block.prpage-tabs .tt-item .tt-collapse-content ul li::before { content: "•"; position: absolute; left: 0; color: #1d1d1f; /* Black - same as text */ } .tt-collapse-block.prpage-tabs .tt-item .tt-collapse-content ul li:last-child { margin-bottom: 0; } }

IN THE BOX

Canon RF 800mm f/5.6 L IS USM Lens
Canon Lens Cap E-180E
Canon Lens Dust Cap RF
Canon Lens Hood ET-155 (WIII)
Canon Drop-In Screw Filter Holder 52 (WIII) with Protect Filter
Canon Lens Soft Case LS600
Canon Wide Lens Strap B

KEY FEATURES

RF-Mount Lens/Full-Frame Format
Aperture Range: f/5.6 to f/64
Fluorite, Super UD, and UD Elements
Air Sphere and Super Spectra Coatings
Ring-Type USM AF System
Optical Image Stabilizer
Focus Range Limiter, Two Focus Presets
Customizable Electronic Focus Ring
Weather-Sealed Design, Fluorine Coating
Rotating Tripod Collar

GTIN: 13803340150

.nav-tabs-holder { position: -webkit-sticky; position: sticky !important; top: 0 !important; /* Desktop: touch top (no sticky header on product pages) */ background: #ffffff !important; padding: 15px 0 0px 0; width: 100%; z-index: 100; border-bottom: 1px solid #d7d7d7 !important; margin-bottom: 10px; border-top: 10px solid #f2f3f5 !important; } /* Mobile: account for sticky header */ @media (max-width: 767px) { .nav-tabs-holder { top: 42px !important; } } .nav-tabs-holder .nav-link { padding: 0 0; }

DESCRIPTION
SPECIFICATIONS

DESCRIPTION

Canon RF 800mm f/5.6L IS USM Overview

Powerful Reach, Unprecedented Portability

Relatively sleek despite its super-telephoto reach, the Canon RF 800mm f/5.6 L IS USM is an impressive prime meshing top-of-the-line performance with an updated compact and lightweight design. Ideal for sports, wildlife, and journalism applications, this long lens offers a distinctly tight field of view for isolating distant subjects, along with responsive AF and image stabilization, reliable weather-sealing, and intuitive handling for dependable use in fast-paced situations.

L Series Optics

Featuring an optical design based on past EF and RF super-telephoto lenses, this lens features top-range optics designed for the most demanding shooting applications.
Two fluorite, one Super Ultra Low-Dispersion (UD), and one UD element virtually eliminate chromatic aberrations for outstanding clarity and color accuracy, void of chromatic aberrations or fringing.
Advanced optical design also contributes to the sleeker, more portable form factor of this RF-mount, mirrorless lens.
Both Air Sphere and Super Spectra Coatings improve image quality by maintaining high contrast and color accuracy while reducing lens flare and ghosting when working in strong lighting conditions.
Rounded nine-blade diaphragm contributes to a smooth bokeh quality.

USM Autofocus and Image Stabilization

Ultrasonic Motor delivers fast, accurate, and near silent autofocus performance to benefit both photo and video applications.
Impressively close 8.5' minimum focusing distance, and a maximum magnification of 0.34x, suit working with nearby subjects, such as close-range wildlife, birds, and athletes.
Variable speed manual focusing offers three options for greater focusing control and full-time manual focus support permits making focus adjustments without switching modes.
Two focus presets can be stored for immediate recall to a specified focus distance.
Focus range limiter improves responsiveness by constraining the usable focusing range.
Benefitting handheld and monopod-based shooting, Optical Image Stabilization compensates for 4.5 stops of camera shake for sharper imagery. Due to the long focal length, in-body image stabilization, or Coordinated IS, from EOS R-series bodies is not supported with with this lens.

Intuitive Handling and Professional Reliability

Relatively lightweight and compact, this 800mm f/5.6 lens weighs 6.9 lb and measures 17"-long, making it realistic to use atop a monopod or even handheld for short periods of time.
Built-in rotating tripod mount suits working with the lens atop a monopod or tripod and enables quick switching between vertical and horizontal shooting orientations.
Weather-sealed design for reliable use in inclement conditions.
Fluorine coating on front element helps repel moisture, dust, and fingerprints and is also easier to clean.
Distinctive heat-resistant white paint finish.
Accepts drop-in style 52mm filters toward the rear of the lens.
Compatible with optional Extender RF 1.4x and 2x teleconverters for further extending the effective reach of this lens.

SPECIFICATIONS

Lens

Focal Length: 800mm
Maximum and Minimum Aperture: f/5.6 - f/64
Lens Mount Type: RF Mount, metal
Compatible Cameras: Canon EOS R-series
Minimum Focusing Distance: 8.53' (2.6m)
Maximum Magnification: 0.34x
Field of View, at Minimum Focus Distance: Approx. 8.1 x 5.4" (206 x 138mm)
Angle of View (Diagonal): 03 Degree 05'

RF Extender Compatibility

Canon RF Extender 1.4x/2x: Compatible
Equivalent Focal Length: RF1.4x - 1120mm f/8
Maximum Aperture: RF2x - 1600mm f/11
Max close-focusing magnification: RF1.4x - 0.49x
RF2x - 0.71x
Autofocus with EOS R-series cameras: Possible with either extender (as of 2/2022)
Image Stabilizer w/EOS R-series cameras: Possible with either extender (as of 2/2022)

Optical Design

Lens Construction: 26 elements in 18 groups
Special Elements: (2) Fluorite, (1) Super UD Lenses, (1) UD (Ultra-low Dispersion)
Lens Coating: Super Spectra Coating, Fluorine Coating, ASC
Filter Size Diameter: 52mm
Aperture Blades: 9, circular shape
Image Stabilization: 4 stops correction with In-lens Optical Image Stabilization

Focusing

Focusing Drive System: Canon USM low-speed drive (Ring USM)
Full-time Manual Focusing: Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
Manual Focus Speed Selection: Yes (1, 2, and 3 settings, via switch on lens)
1= fastest MF; 3= slowest MF rotation
Focus Distance Range Selection: Yes (3 positions, via switch on lens)
FULL - 8.5' (2.6m) - infinity
8.5' (2.6m) - 20m/65.6 feet
65.6' (20m) - infinity
Dual Pixel CMOS AF Coverage (HxV): EOS R5/R6 - approx. 100% x 100%
EOS R - approx. 88% x 100%
With Extender RF1.4x: EOS R5/R6 - approx. 100% x 100%
EOS R - approx. 88% x 100%
With Extender RF2x: EOS R5/R6 - approx. 80% x 80%
EOS R - approx. 80% x 80%
Power Focus: Yes, via rotation of Playback Ring
Lens Focus Preset switch set to OFF; Focus Mode switch set to PF
Two focus speeds, based on ring rotation angle

Image Stabilization

IS On-Off: Image Stabilizer switch, on lens barrel
Optical Image Stabilization: Provided
4 stops correction (CIPA standard) with both EOS R and R5
IS Mode Selection: IS Modes 1, 2 and 3 (via switch on lens barrel)
Mode 1 - general shake correction
Mode 2 - correction during panning
Mode 3 - correction only during exposure
Panning Mode Support (SCN Mode): Supported

Exterior Design

Control Ring: Dual-function Manual focus ring / Control Ring (selected using camera menu)
Manual Focus Ring: Electronic ring system
Full-time Manual focus possible
No physical limit to ring rotational angle
AF/MF Switch: Yes - AF/PF/MF Switch
MF/Control Ring Switch: None - must be selected in camera menu
Distance Scale: None
Distance scale available in EVF or Live View LCD screen of compatible EOS R-series cameras
Distance Limiter Switch: Full (2.6m to infinity) / 2.6m to 20m / 20m to infinity
Focus Pre-set Function: Yes, via Playback Ring on lens barrel
Off - On - On with beep tone, via lens switch
Distance memorized via Focus Preset button
Two distances can be memorized; immediate return to either via direction of Playback Ring
Lens Function Buttons: Yes; four positioned on lens barrel
(AF-Stop Buttons)
Dust / Weather Resistant Construction: Yes - rubber ring on lens mount
