DESCRIPTION
Canon RF-S 10-18mm f/4.5-6.3 IS STM Overview
Widen Your Perspective

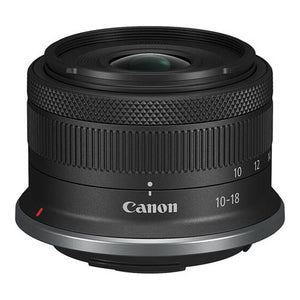

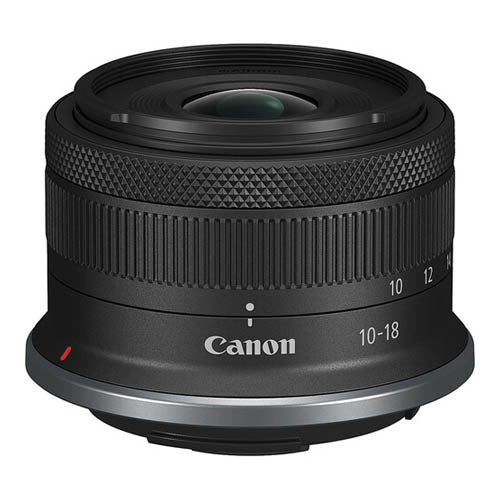

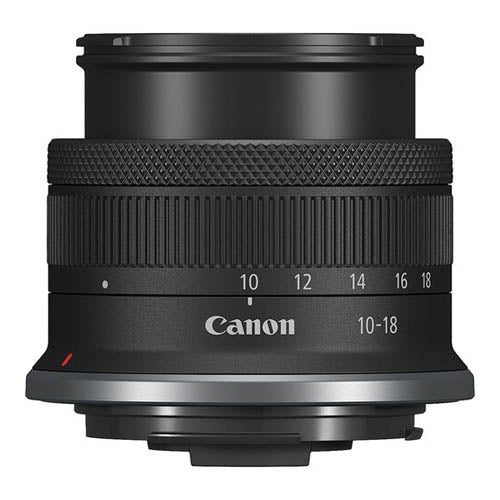

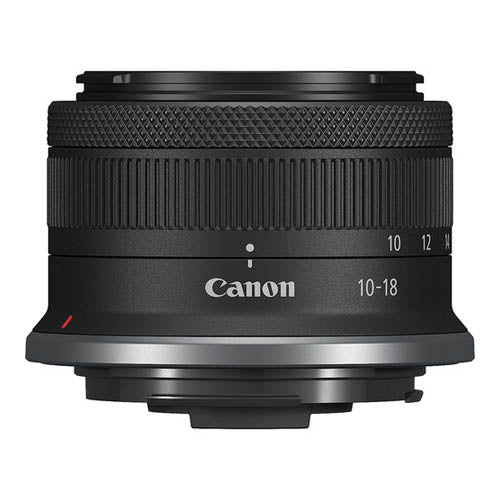

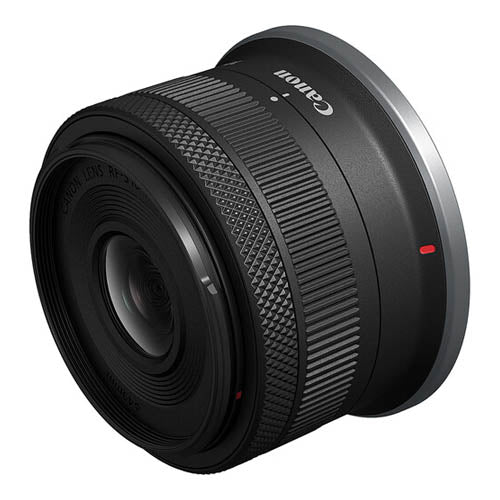

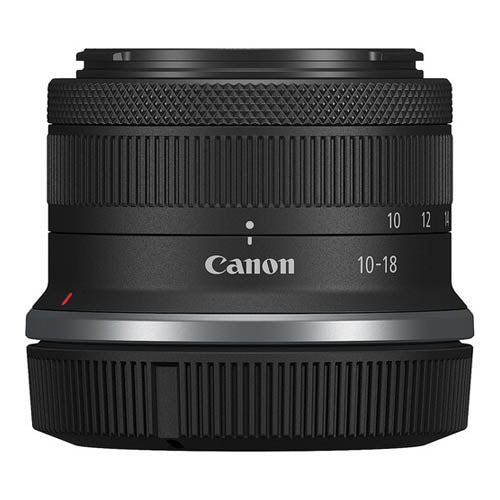

An impressively lightweight wide-angle zoom, the RF-S 10-18mm f/4.5-6.3 IS STM Lens from Canon provides high-quality imagery and peak mobility. Designed for APS-C-format RF-mount mirrorless cameras, this lens gives a 16-29mm full-frame equivalent focal length range. In-lens optical image stabilization offers four stops of correction, or six stops with Coordinated IS when paired with a compatible camera. Two ultra-low dispersion elements and one aspherical element help create sharper images and reduce chromatic and spherical aberrations. The RF-S 10-18mm benefits from Canon's Super Spectra coating, which minimizes ghosting and flare while boosting contrast. Additionally, this lens attaches to both APS-C and full-frame EOS R-series cameras without the need for an adapter because of its RF-mount.
Smooth, Quiet Autofocus
A lead screw-type STM stepping AF motor drives the RF-S 10-18mm, producing near-silent autofocus for photo and video applications. Full-time manual focus override is available allowing for more options when focusing, which is particularly useful for close-up work. Any out-of-focus areas of your frame are rendered more visually pleasing by the lens's seven-blade diaphragm.
Incredibly Lightweight
Weighing just 5.3 oz and measuring 1.8", this wide-angle zoom is the perfect travel companion that allows you to shoot handheld for hours without discomfort. While the lens's compactness allows you to store it in most camera bags, its versatile zoom range is practical for vlogging as well as an array of shooting applications such as landscape, interior, nature, and architecture photography.
SPECIFICATIONS
Lens
- Focal Length
- 10-18 mm (equivalent to 16-29 mm in 35 mm format)
- Maximum and Minimum Aperture
- f/4.5 - f/32
- Lens Mount Type
- RF Mount
- Compatible Cameras
- Canon EOS R-series, full-frame and APS-C
- Minimum Focusing Distance
- AF: 0.14 m / 5.5 in. (at 10-18 mm)
MF: 0.086 m / 3.4 in. (at 10 mm)
- Maximum Magnification
- AF: 0.23x (at 18 mm)
MF: 0.5x (at 10 mm)
- Field of View
- AF: Approx. 165 x 110 mm / 6.5 x 4.3 in. (at 10 mm) to approx. 96 x 64 mm / 3.8 x 2.5 in. (at 18 mm)
MF: Approx. 45 x 30 mm / 1.8 x 1.2 in. (at 10 mm) to approx. 96 x 64 mm / 3.8 x 2.5 in. (at 18 mm)
- Angle of View (Diagonal)
- Approx. 107 Degree 30'- 74 Degree 20'
Optical Design
- Lens Construction
- 12 elements in 10 groups
- Special Elements
- 2 UD lenses and 1 aspheric lenses
- Lens Coating
- Canon SSC (Super Spectra Coating)
- Filter Size Diameter
- 49mm
- Aperture Blades
- 7
- Image Stabilization
- 4.0 stops correction with In-lens Optical Image Stabilization (6.0 stops correction with EOS R series in-body coordinated Image stabilization)
Focusing
- Focusing Drive System
- Canon STM (Leadscrew type STM)
- Full-time Manual Focusing
- Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
- Dual Pixel CMOS AF Coverage (H x V)
- EOS R - Approx. 80% x 80%
EOS R5 - Approx. 80% x 80%
EOS R7/R10 - Approx. 100% x 100%)
EOS R100 - Approx. 100% x 100%
Exterior Design
- Focusing / Control Ring
- Yes (Does not have a focusing/control selector switch, camera menus are used to switch between the focusing ring and control ring. On cameras that do not support the above menu-based switching, this ring only operates as a focusing ring - EOS R, RP, Ra, R5, R6)
- AF/MF Switch
- No
- MF/Control Ring Switch
- No
- Distance Scale
- None (Electronic distance scale possible in viewfinder or LCD monitor, with compatible EOS R-series cameras)
- Distance Limiter Switch
- None
- Dust / Weather Resistant Construction
- None
Physical
- Dimensions (Max Outer Dia x L)
- Approx. 2.7 x 1.8" (69 x 44.9mm) (retracted)
- Weight
- Approx. 5.3 oz (150g)
KEY FEATURES
APS-C | f/4.5-6.3 to f/32
16-29mm (Full-Frame Equivalent)
STM Stepping AF Motor
7-Blade Diaphragm
Optical Image Stabilizer
One Aspherical Element, Two UD Elements
BOX CONTENTS
- Canon RF-S 10-18mm f/4.5-6.3 IS STM Lens (Canon RF)
- Canon E-49 Lens Cap
- Canon Lens Dust Cap RF
