DESCRIPTION

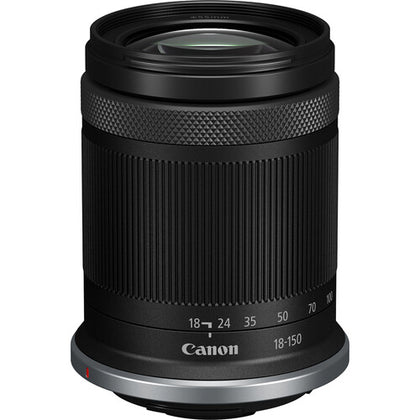

Canon RF-S 18-150mm f/3.5-5.6 IS STM Overview

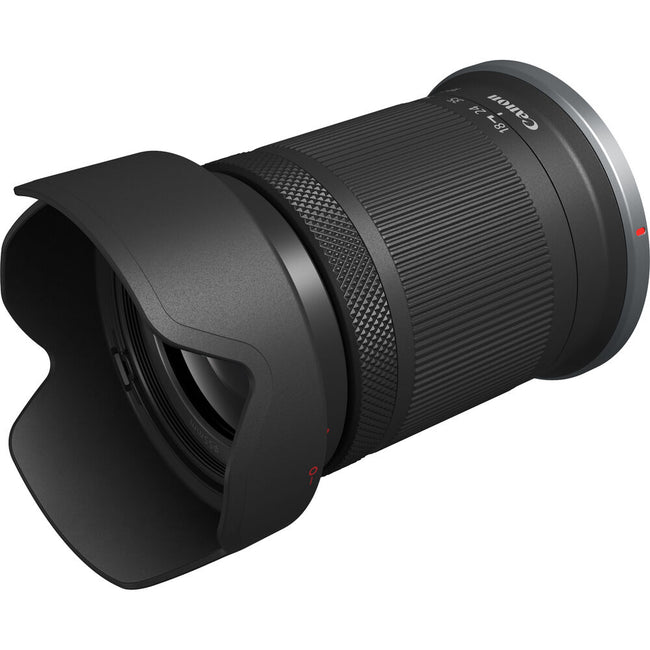

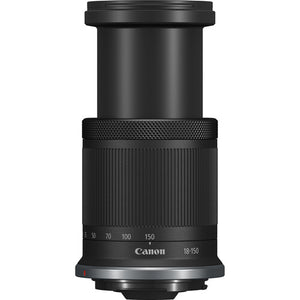

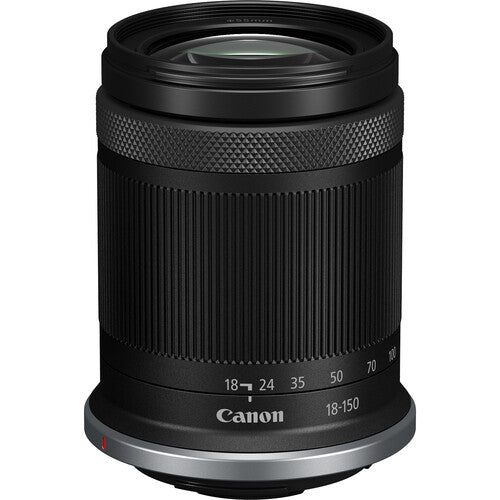

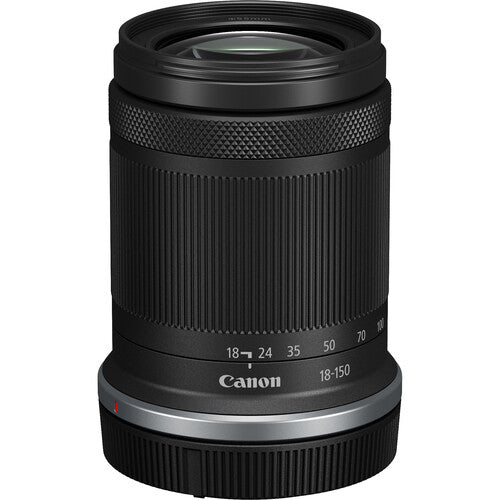

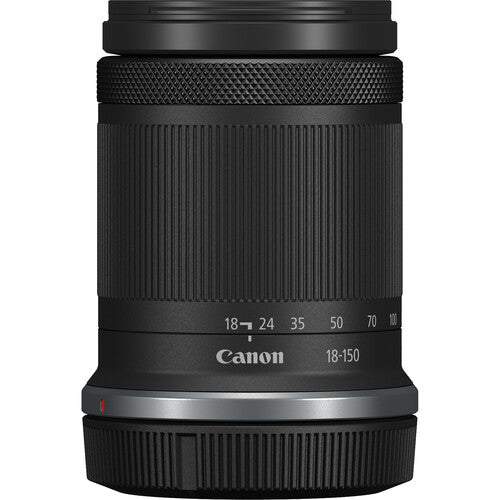

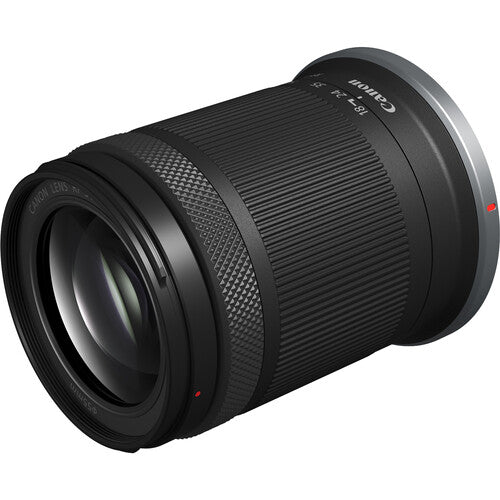

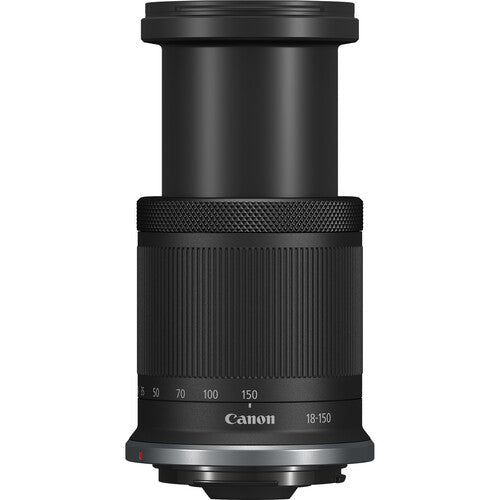

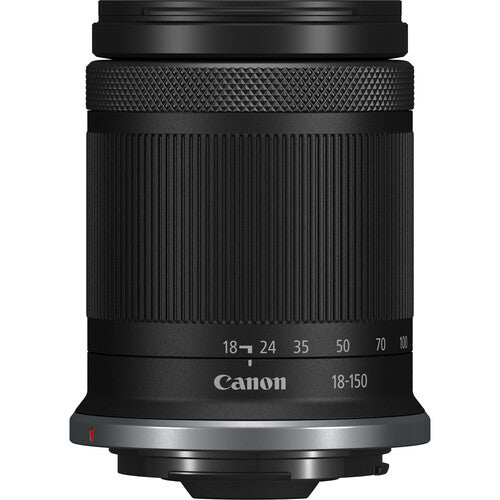

Cover all your needs with one lightweight optic with the Canon RF-S 18-150mm f/4.5-6.3 IS STM Lens. Designed to be an all-around lens for Canon's APS-C R Series mirrorless cameras, it will offer an equivalent zoom range of 29-240mm which covers wide-angle to telephoto perspectives. The 18-150mm uses an UD elements along with two aspherical elements to create aberration-free imagery. A Super Spectra Coating further helps by minimizing ghosting and flaring.
Users will be able to make use of a customizable Control Ring for either manual focus or a programmable setting. Autofocus is smooth and quiet, great for stills and video, thanks to a lead screw-type STM stepping AF motor. Additionally, the lens has an Optical Image Stabilizer that will compensate for up to 4.5 stops of camera shake, or up to 6.5 stops with Coordinated IS when paired with a compatible camera.
SPECIFICATIONS
Lens
- Focal Length
- 18-150mm
- Maximum and Minimum Aperture
- f/3.5 - f/40
- Lens Mount Type
- RF Mount
- Compatible Cameras
- Canon EOS R-series, APS-C and full-frame (automatic APS-C sensor cropping if used on full-frame EOS R-series cameras)
- Minimum Focusing Distance
- 0.17m (6.7") at 18mm
- Maximum Magnification
- 0.44x (at 50mm)
- Field of View, at Minimum Focus Distance
- Approx. 51mm x 34mm (2.0 x 1.3") at 50mm (AF)
- Angle of View (Diagonal)
- Approx. 74 Degree 20' - 10 Degree 25'
Optical Design
- Lens Construction
- 17 elements in 13 groups
- Special Elements
- (One) UD Lens, (Two) Aspherical Lenses
- Lens Coating
- Canon SSC (Super Spectra Coating)
- Filter Size Diameter
- 55 mm
- Aperture Blades
- 7
- Image Stabilization
- 4.5 stops correction with In-lens Optical Image Stabilization (6.5 stops correction with EOS R5 in-body coordinated Image stabilization)
Focusing
- Focusing Drive System
- Canon STM (Leadscrew type STM)
- Full-time Manual Focusing
- Yes (Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
- Dual Pixel CMOS AF Coverage (H x V)
- EOS R - Approx. 80% x 80%
EOS R5 - Approx. 80% x 80%
EOS FC6/FC7 - Approx. 100% x 100%
Exterior Design
- Control Ring
- Dual-function Manual focus ring / Control Ring (selected using camera menu)
- Manual Focus Ring
- Electronic ring system
Full-time Manual focus possible
No physical limit to ring rotational angle
- AF/MF Switch
- None - focus mode selected in camera menu
- MF/Control Ring Switch
- None - must be selected in camera menu
- Distance Scale
- None Distance scale available in EVF or Live View LCD screen of compatible EOS R-series cameras
- Distance Limiter Switch
- None
- Dust / Weather Resistant Construction
- None
Physical
- Dimensions (Dia. x L)
- Approx. 2.7 x 5" (69 x 126.7mm)
- Weight
- Approx. 10.9 oz (310g)
KEY FEATURES
RF-S-Mount Lens/APS-C Format
29-240mm (35mm Equivalent)
Aperture Range: f/3.5-6.3 to f/40
One UD Element & Two Aspherical Elements
Super Spectra Coating
STM Stepping AF Motor
Optical Image Stabilizer
Customizable Control Ring
Rounded 7-Blade Diaphragm
BOX CONTENTS
- Canon RF-S 18-150mm f/3.5-6.3 IS STM Lens
- Canon E-55 Lens Cap
- Canon Lens Dust Cap RF
