DESCRIPTION

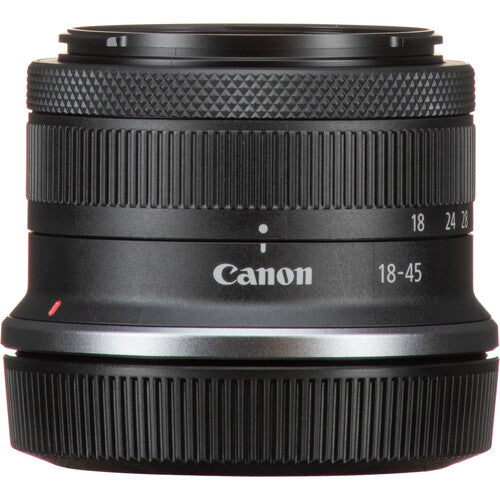

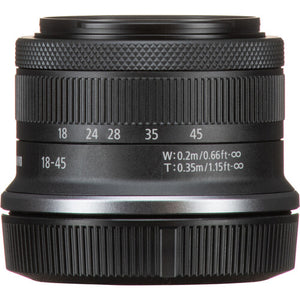

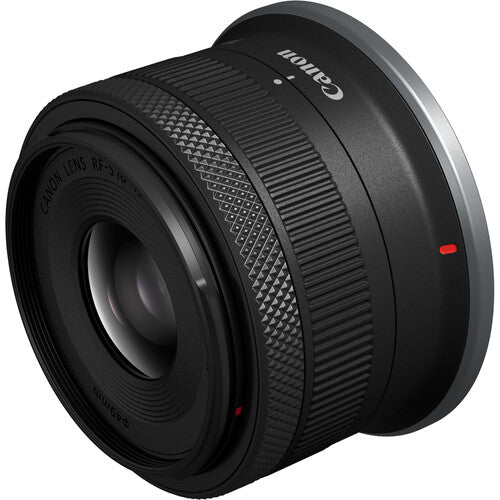

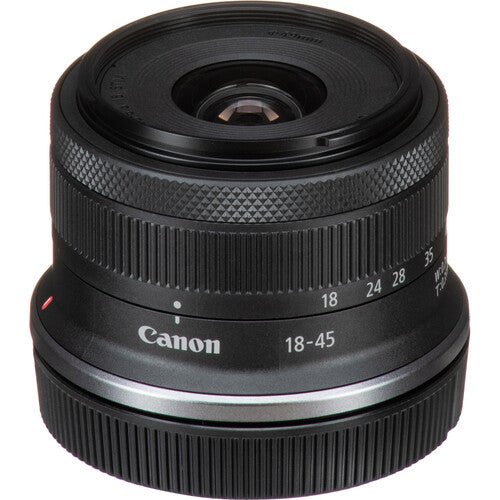

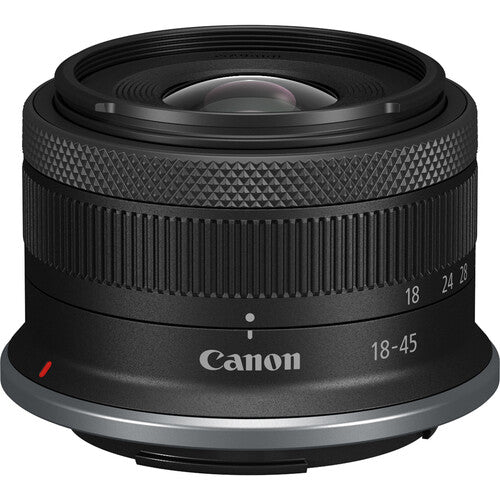

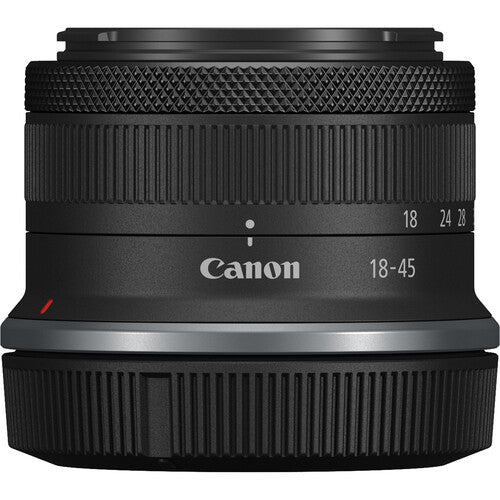

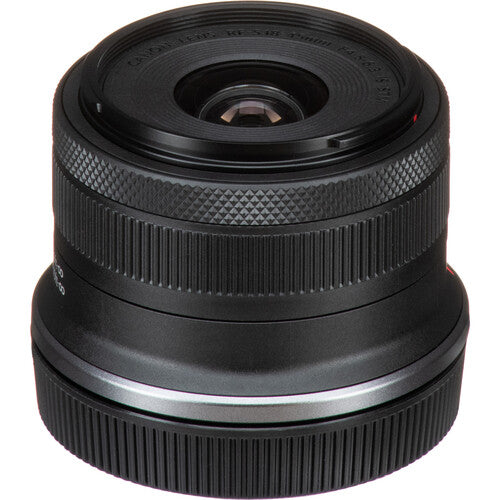

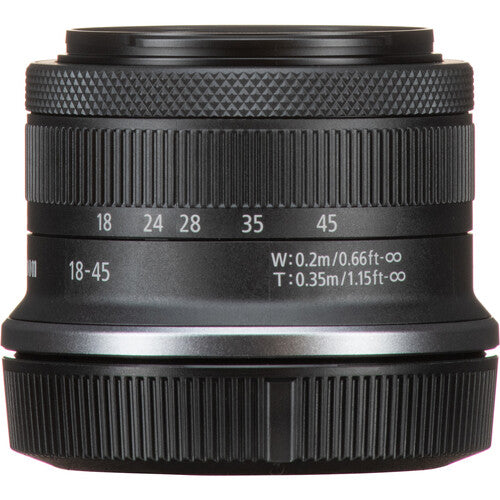

Canon RF-S 18-45mm f/4.5-6.3 IS STM Overview

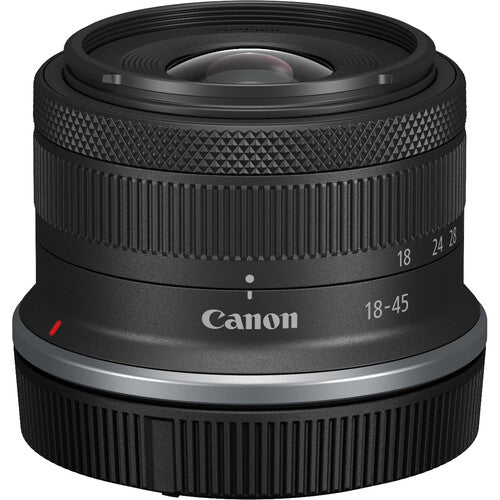

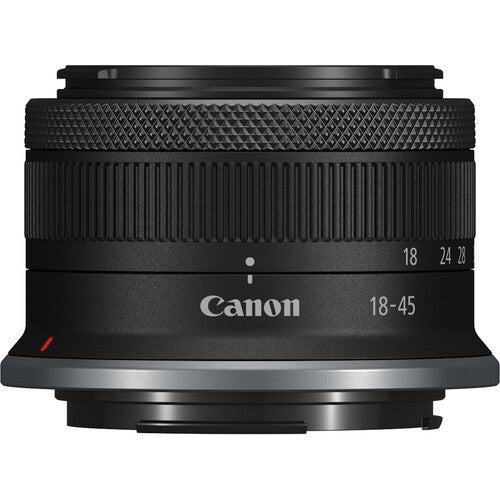

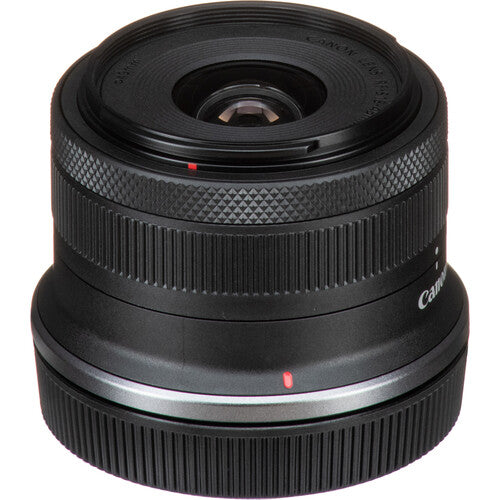

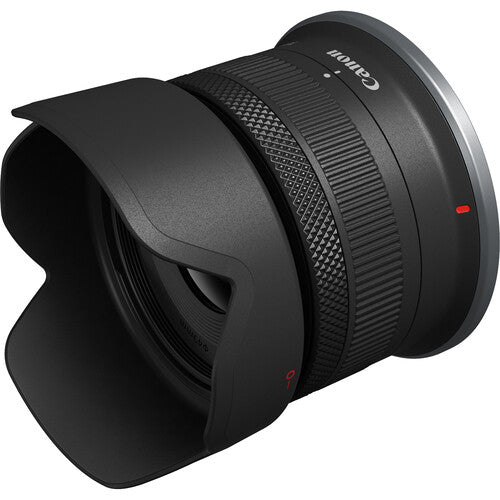

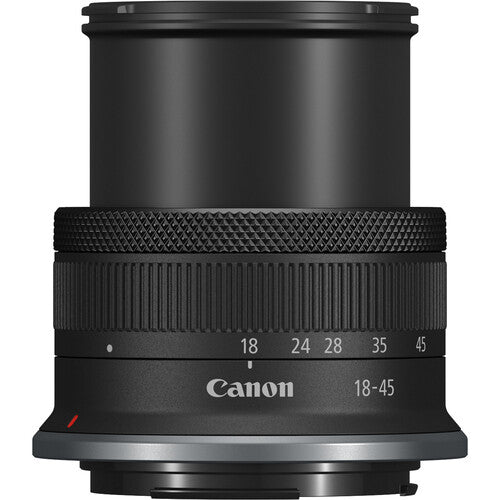

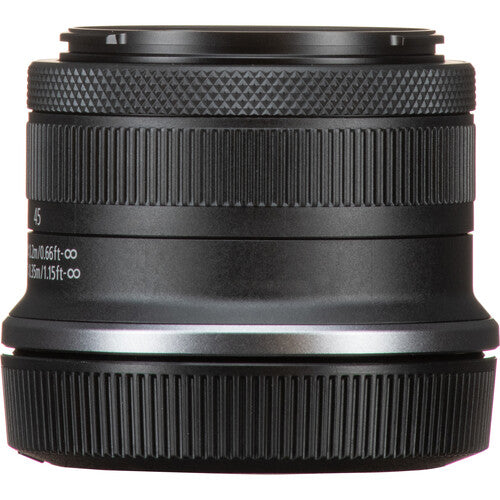

A versatile zoom range in a compact package is the promise of the Canon RF-S 18-45mm f/4.5-6.3 IS STM Lens. Made specifically for Canon's APS-C-format R Series mirrorless line, it delivers a wide-angle to short telephoto equivalent zoom range of 29-72mm. Plus, a retractable design makes it ideal for everyday carry where you want to stuff the camera in a bag.
Canon has taken care with the optical design, using two aspherical elements and the Super Spectra Coating to minimize aberrations and reduce ghosting and flare. An Optical Image Stabilizer will help ensure sharp imagery, providing up to 4 stops of shake correction or up to 6 stops of Coordinated IS with a compatible camera body. Additionally, the lead screw-type STM AF system is fast enough to keep up with speedy continuous focus while being smooth and quiet enough to work for video.
SPECIFICATIONS
Lens
- Focal Length
- 18-45mm
- Maximum and Minimum Aperture
- f/4.5 - f/32
- Lens Mount Type
- RF Mount
- Compatible Cameras
- Canon EOS R-series, APS-C and full-frame (automatic APS-C sensor cropping if used on full-frame EOS R-series cameras)

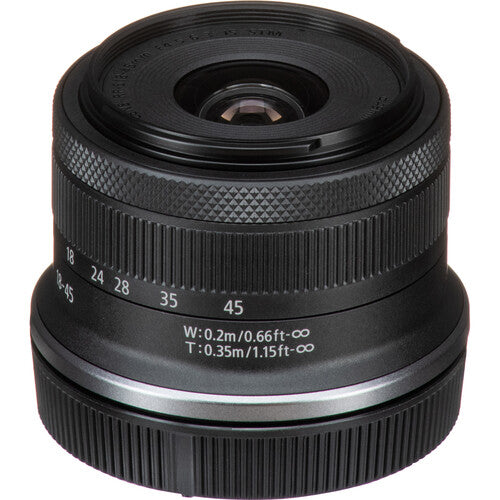

- Minimum Focusing Distance
- 0.20m (at 18mm)
- Maximum Magnification
- 0.16x (at 45mm)
- Field of View, at Minimum Focus Distance
- Approx. 153 x 102mm (at 18mm) to approx. 137 x 92mm (at 45mm)
- Angle of View (Diagonal)
- Approx. 74 Degree 20' - 33 Degree 40'
Optical Design
- Lens Construction
- 7 elements in 7 groups
- Special Elements
- 2x Aspherical elements
- Lens Coating
- Canon SSC (Super Spectra Coating)
- Filter Size Diameter
- 1.92" (49mm)
- Aperture Blades
- 7
- Image Stabilization
- 4 stops correction with In-lens Optical Image Stabilization (6 stops correction with EOS R5 in-body coordinated Image stabilization)
Focusing
- Focusing Drive System
- Canon STM (Leadscrew type STM)
- Full-time Manual Focusing
- Yes
(Supports both ONE SHOT AF and SERVO AF with compatible EOS R-series cameras)
- Dual Pixel CMOS AF Coverage (H x V)
- EOS R - Approx. 80% x 80%
EOS R5 - Approx. 80% x 80%
EOS R7/R10 - Approx. 100% x 100%
Exterior Design
- Control Ring
- Dual-function Manual focus ring / Control Ring (selected using camera menu)
- Manual Focus Ring
- Electronic ring system
Full-time Manual focus possible
No physical limit to ring rotational angle
- AF/MF Switch
- None - focus mode selected in camera menu
- MF/Control Ring Switch
- None - must be selected in camera menu
- Distance Scale
- None
Distance scale available in EVF or Live View LCD screen of compatible EOS R-series cameras
- Distance Limiter Switch
- None
- Dust/Weather Resistant Construction
- None
Physical
- Dimensions (Dia. x L)
- Approx. 2.7 x 1.7" (68.9 x 44.3mm)
- Weight
- Approx. 4.6 oz (130g)
