DESCRIPTION

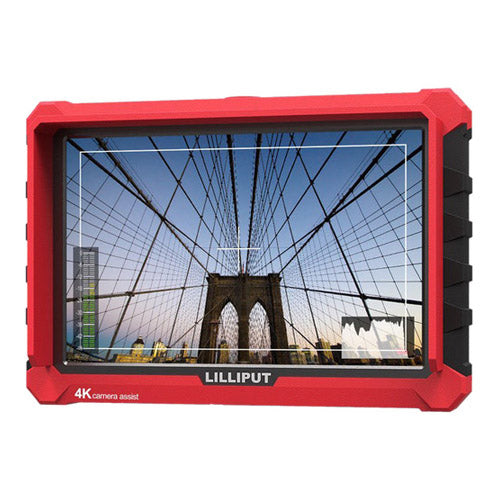

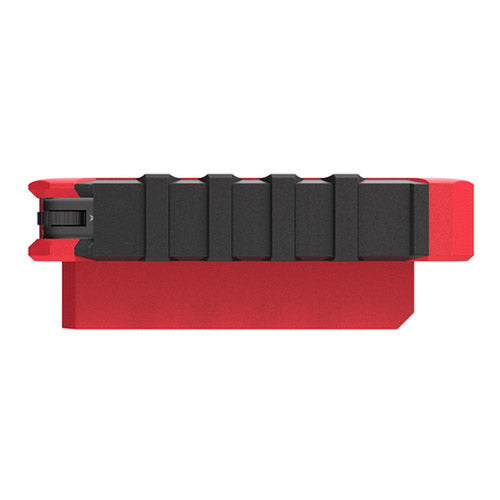

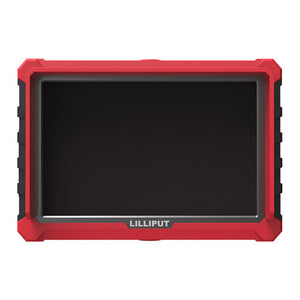

Lilliput A7S 7" Full HD Monitor

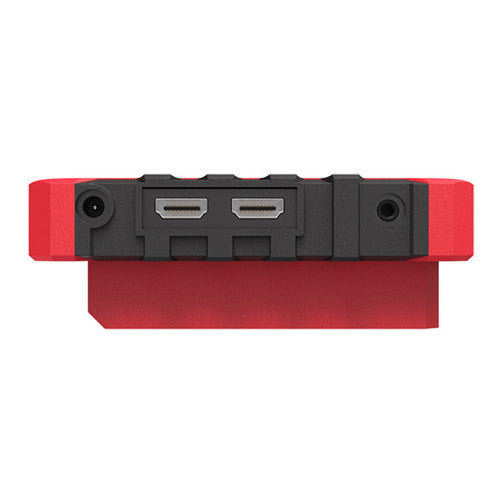

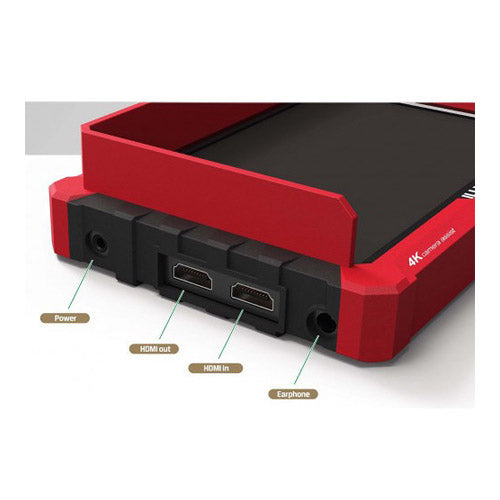

With an HDMI 1.4 input, Lilliput's A7S 7" Full HD Monitor with red rubber case is appropriate for UHD 4K filmmaking and photography. The LCD panel shows Full HD images with a 1000:1 contrast ratio and a 16:10 aspect ratio. You can output via HDMI to any additional device that is compatible by using the HDMI loop-through feature.

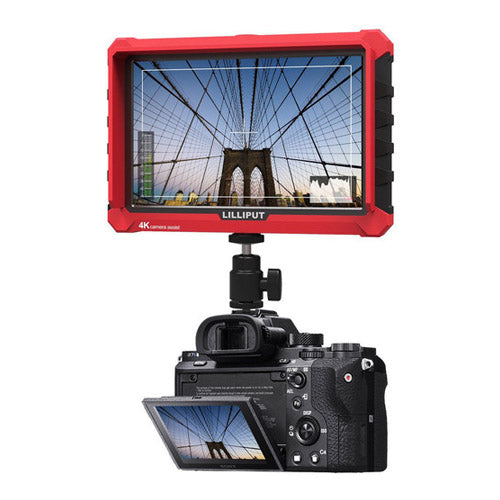

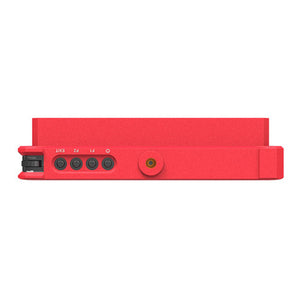

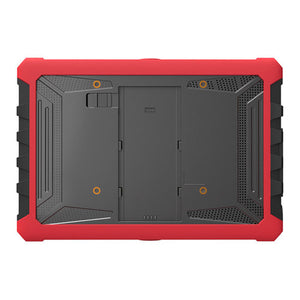

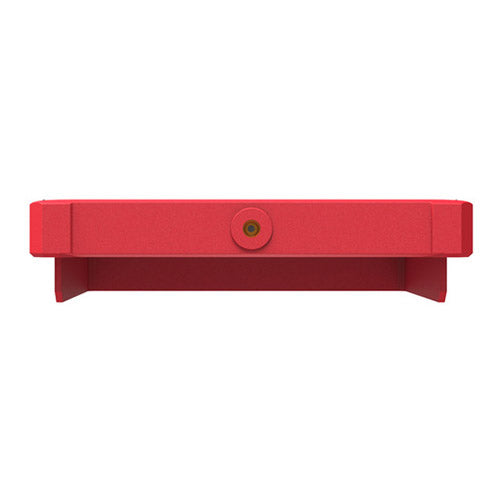

The A7S offers control over your shooting workflow in both the field and the studio if you have upgraded to the 4K workspace. The two programmable function keys can be used to create shortcuts to your preferred and frequently used monitor functions. By screwing the included shoe mount adapter onto the 1/4"-20 threads at the bottom, you can mount the monitor to your camera. The A7S can be mounted to other devices using the VESA 75 hole on the back.
Features
- DCI 4K and UHD 4K-compatible via HDMI input, 1080p60 input via 3G-SDI
- Native 1920 x 1200, 8-bit resolution display with a wide 170° viewing angle
- 1000:1 contrast ratio, 500 cd/m² brightness
- Functions include aspect markers, audio level meters, peaking, false color, histogram, exposure, and image flip
- Includes L-series type battery plate, compatible with a Sony F-970 battery
- Includes AC adapter, sunshade, ball head shoe mount adapter, and HDMI cable
SPECIFICATIONS
- Screen Size (diagonal)
- 7" IPS
- Native Resolution
- 1920 x 1200 (Compatible with UHD 4K 3840 x 2160)
- Aspect Ratio
- 16:10
- Brightness
- 500 cdm2
- Contrast Ratio
- 1000:1
- Viewing Angle
- 170 deg. x 170 deg. (H/V)
Audio
- Speaker
- 1x Speaker (c. 1W) 1x Earphone Slot
Input
- HDMI Video Input
- 1x HDMI 2.0 (Compatible with UHD 4K 3840 x 2160)
Output
- HDMI Video Output
- 1x HDMI 2.0
Power
- Current
- 1A
- Input Voltage
- DC 7-24V
- Power Consumption
- = 12W
- Battery Plate
- F970
Environment
- Operating Temperature
- -20 to 60 deg. C (-4 to 140 deg. F)
- Storage Temperature
- -30 to 70 deg. C (-22 to 158 deg. F)
General
- Dimensions (HxWxD)
- 124 x 182.1 x 20.5mm (4.88 x 7.17 x 0.81")
- Weight
- 320g (11.29 oz)
KEY FEATURES
- 1920 x 1200 Native Resolution
- 500 cd/m² Brightness
- 1000:1 Contrast Ratio
- 170° Viewing Angle
- Red Silicone Rubber Case
- Peaking / False Color / Histogram
- Exposure / Level Meter / Image Flip
- 1/4"-20 and VESA 75 Mounting Options

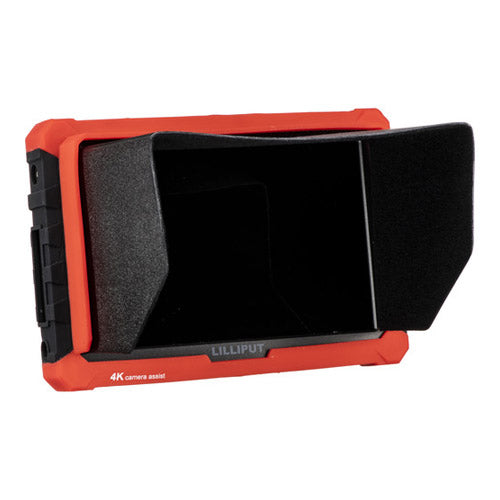

- Sun Hood Included
BOX CONTENTS
- Lilliput A7S 7" Full HD Monitor with 4K Support (Red Case)
- Sony F-970 Type Battery Plate
- Lilliput Battery Mount Plate for Canon Batteries
- Shoe Mount Adapter
- Mini-HDMI to HDMI Cable
- AC Adapter
- Sun Hood
- Red Silicone Rubber Case
- Limited 1-Year Manufacturer Warranty
