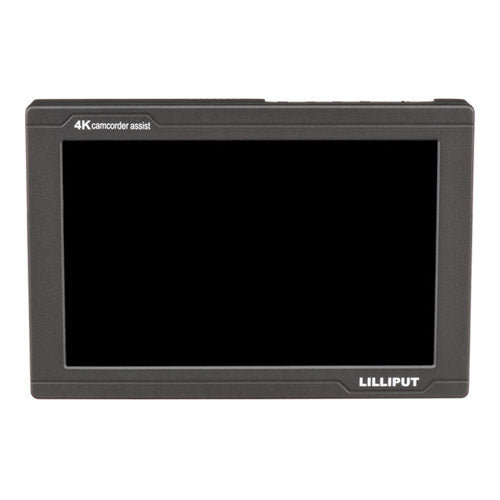

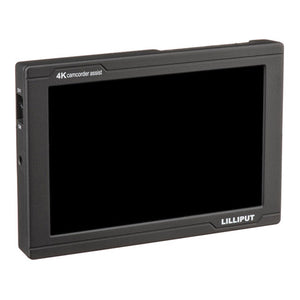

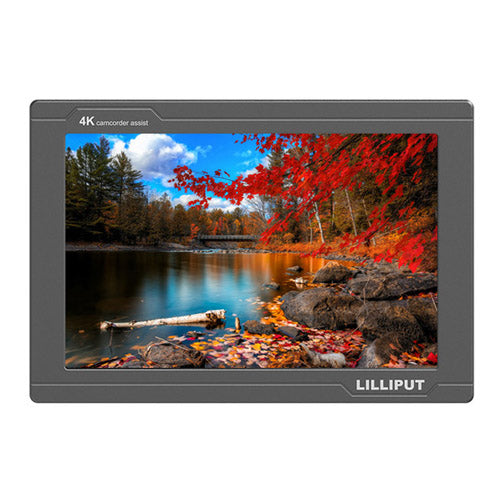

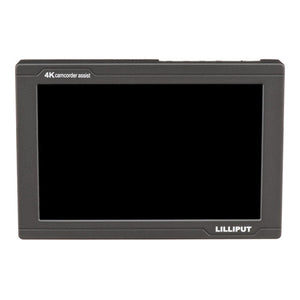

The Lilliput FS7 7" 4K HDMI/3G-SDI Monitor
The Lilliput FS7 7" 4K HDMI/3G-SDI Monitor has a native 1920 x 1200, 8-bit resolution display and is a high-contrast on-camera monitor. View crisp, clear images via HDMI up to DCI 4K 4096 x 2160 and via the 3G-SDI input up to 1080p60. A wide 170° viewing angle, 500 cd/m2 brightness, and a 1000:1 contrast ratio are all features of the FS7. The signals from both HDMI and 3G-SDI can be extended to other hardware.

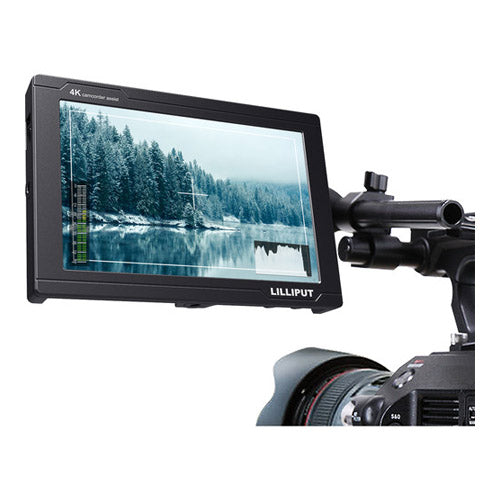

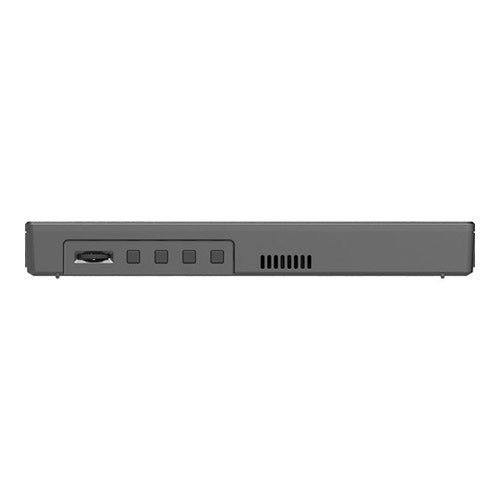

Your favorite monitor functions can be accessed more quickly using two user-definable buttons. False color, level meters, freeze, DSLR, exposure, and image flip modes are among the display features. With the help of the provided ball head shoe mount adapter, mount the monitor to your camera setup.

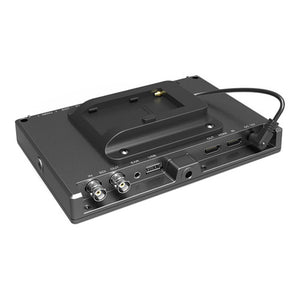

The Lilliput FS7 comes with a Sony L-series type battery plate and can operate with a wide range of 7 to 24 VDC power. The FS7 is housed in a sturdy metal body and includes an AC adapter, an HDMI cable, and a folding sunshade.
Features
- DCI 4K and UHD 4K-compatible via HDMI input, 1080p60 input via 3G-SDI
- Native 1920 x 1200, 8-bit resolution display with a wide 170° viewing angle
- 1000:1 contrast ratio, 500 cd/m² brightness
- Functions include aspect markers, audio level meters, peaking, false color, histogram, exposure, and image flip

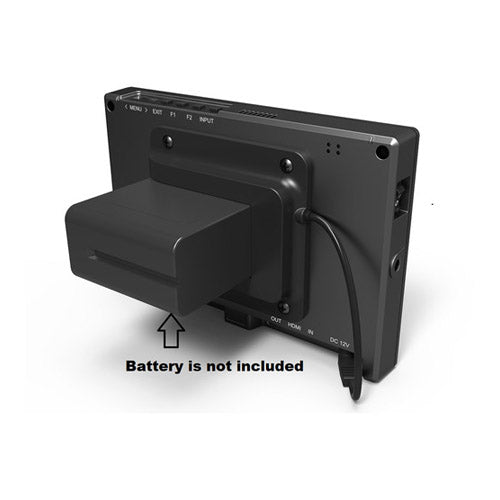

- Includes L-series type battery plate, compatible with a Sony F-970 battery
- Includes AC adapter, sunshade, ball head shoe mount adapter, and HDMI cable
- Aspect Ratio
- 16:10
- Native Resolution
- 1920 x 1200
- Maximum Resolution
- 4096 x 2160p
- Viewing Angle
- 170 deg. Horizontal / 170 deg. Vertical
- Brightness Ratio
- 500 cd/m2
- Contrast Ratio
- 1000:1
- Backlight
- LED

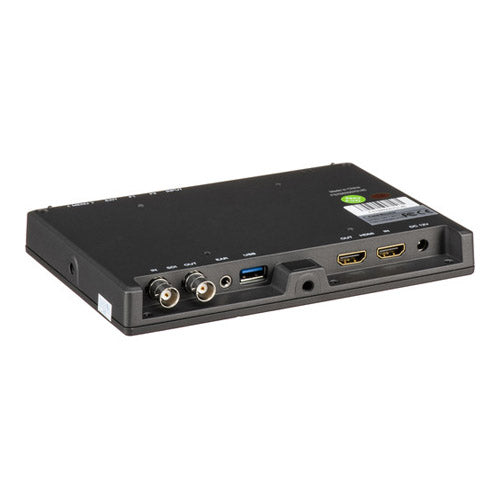

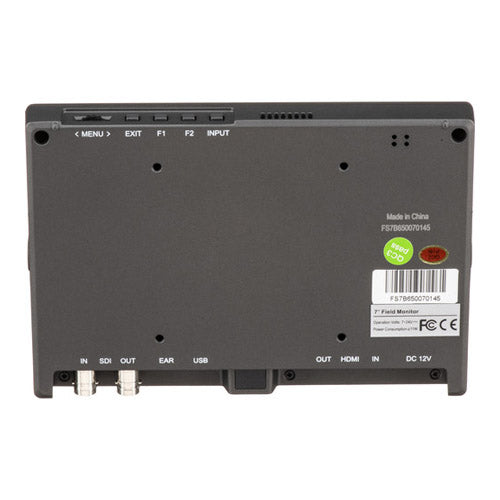

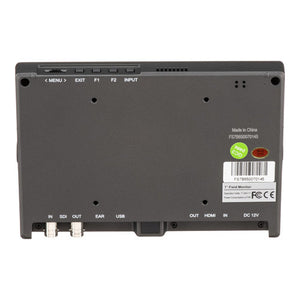

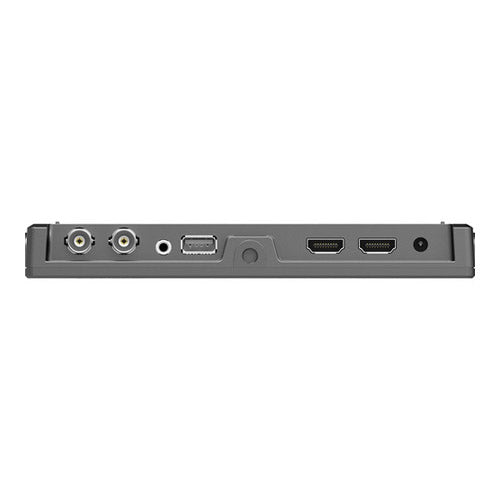

- Video Inputs
- HDMI 1.4, 3G SDI (BNC)
- Video Outputs
- HDMI 1.4, 3G SDI (BNC)
- Audio Outputs
- Speaker Earphone Jack
- Input Power
- 12V DC 1A 12W (Consumption)
- HDMI Format
- 4096x2160 24p / 3840x2160 (23/24/25/29/30p)
- Operating Temperature
- -20 to +60 deg. C (-4 to 140 deg. F)
- Storage Temperature
- -30 to 70 deg. C (-22 to 158 deg. F)

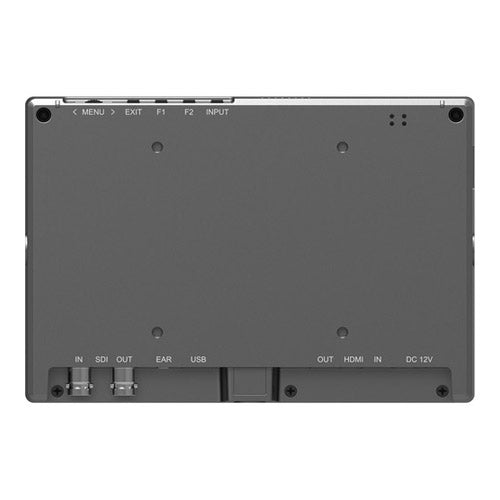

- Mounting Options
- VESA 75 Holes 1/4" BSW Thread
- Dimensions (LxWxD)
- 182 x 124 x 22mm (7.17 x 4.88 x 0.87")
- Weight
- 320g (11.29 oz)
- 7" 1920 x 1200 3G-SDI and HDMI Monitor
- Histogram / Aspect Markers / Peaking
- 500 cd/㎡ Brightness
- 1000:1 Contrast Ratio
- Includes Battery Plate and HDMI Cable
- Wide 7 to 24V Power Input
- 170° Viewing Angle
- False Color / Level Meter / Freeze
- DSLR / Exposure / Image Flip
- Includes Ball Shoe Mount and Sun Hood
- Lilliput FS7 7" 4K HDMI/3G-SDI Monitor with L-Series Type Plate
- AC Adapter (12V)
- HDMI Type A to HDMI Type C Cable
- Shoe Mount Adapter
- Folding Sunshade
- L-Series Type Battery Plate
- Limited 1-Year Manufacturer Warranty
