DESCRIPTION

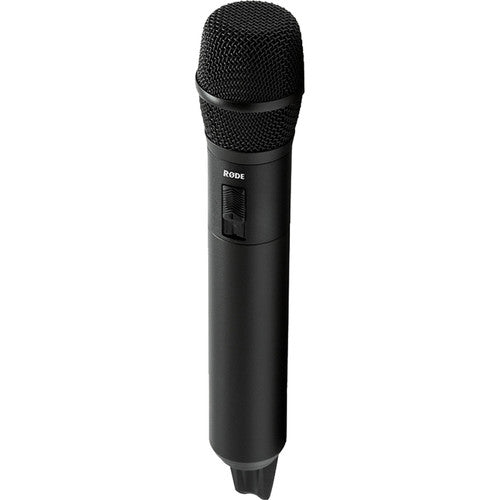

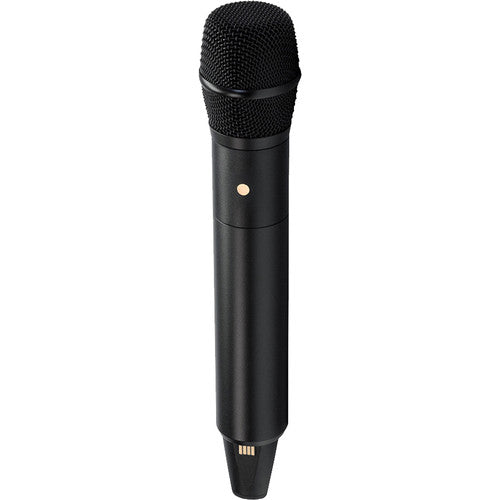

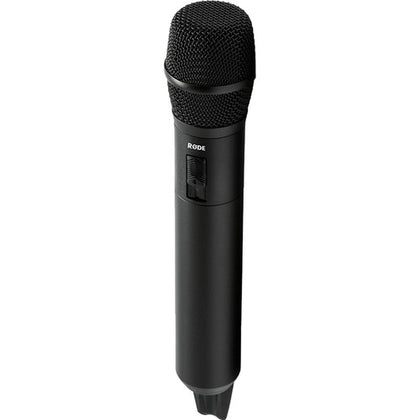

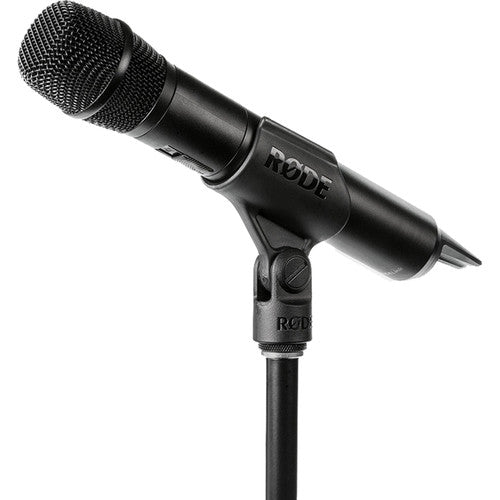

The RODE TX-M2 is a digital wireless microphone that transmits audio over distances of up to 328' to compatible RODE receivers. With its 140 dB SPL and frequency response of 35 Hz to 20 kHz, the microphone provides out-of-the-box functionality for singers, presenters, and DJs, working well for live shows, conferences, special events, ceremonies, and more.
The microphone achieves 128-bit encryption over its 2.4 GHz fixed frequency agile technology to establish a secure transmission. A diversity antenna mounted on the bottom ensures its long-distance range.
Boasting low handling noise that mitigates unwanted rumble, the microphone also sports relatively easy-to-use controls, such as a mute switch and a pair button for one-touch pairing with compatible receivers. Compatible receivers can be found in the RODE Newshooter Kit, Filmmaker Kit, or, if you're looking to assemble your own system, the RX-CAM receiver.
The mic is powered with the included LB-1 lithium-ion rechargeable battery, or by means of two AA batteries, which you can purchase separately. The LB-1 is rechargeable over USB, and a micro-USB cable is provided for this purpose.
SPECIFICATIONS
Rode RODELink TX-M2 Specifications
- Compatibility
- RX-DESK and RX-CAM Receivers
- Transmission type
- 2.4GHz fixed frequency agile system
- System dynamic
- 118dB range
- Range (distance)
- Up to 100m (328') (based on optimal environment)
- Frequency response
- 35Hz - 20kHz
- Max input signal level
- 140dB SPL
- Maximum output level
- +18 dBu
- Latency
- 4 ms (maximum)
- Encryption
- 128-bit
- Power requirement
- 2x AA 1.5V batteries (available separately)
RODE LB-1 4.2V lithium-ion rechargeable battery (included)
USB (5V, cable included)
- Battery life
- Up to 10 hours (LB-1 lithium-ion rechargeable battery)
Up to 6 hours (AA batteries)
- Antenna
- Diversity antenna located at the bottom of microphone
- Dimensions (WxHxD)
- 40 x 256 x 40mm (1.57 x 10.08 x 1.57")
- Weight
- 222g (7.83 oz)
KEY FEATURES
35 Hz to 20 kHz Frequency Range
Range up to 328'
One-Touch Pairing
Mute Switch, Low Handling Noise
128-Bit Encryption
Bottom-Mounted Diversity Antenna
2.4 GHz Fixed Frequency Agile Technology
