DESCRIPTION

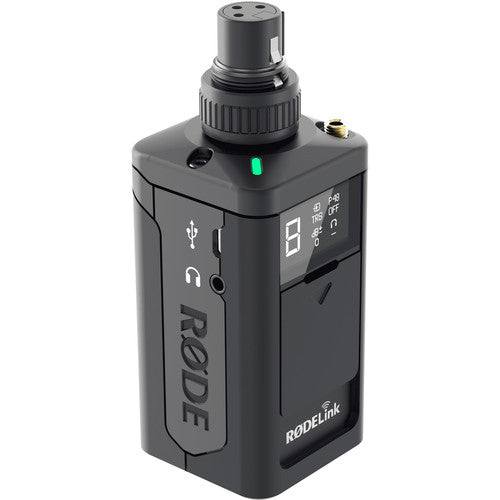

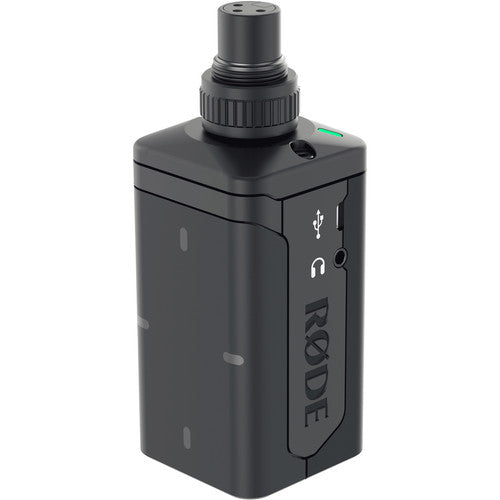

The TX-XLR from Rode is a wireless XLR transmitter for the RodeLink digital wireless system (available separately). It can be used to provide one-touch sync with your wireless system, is capable of supplying 48V of phantom power for microphones through its XLR input, and plug-in power through its TRS input.

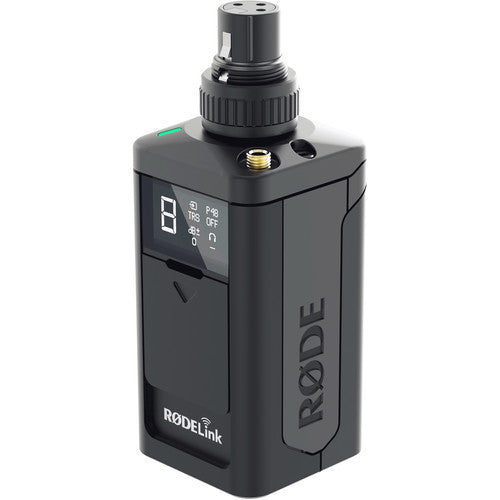

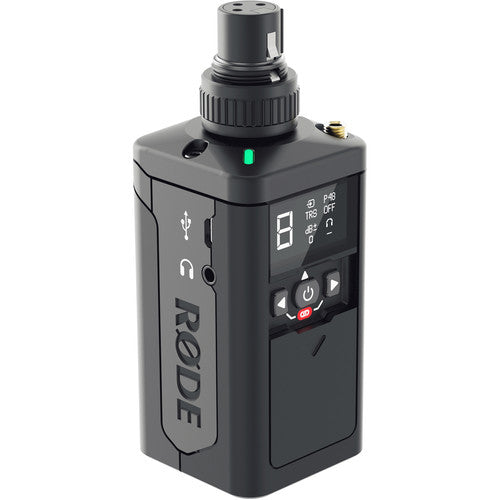

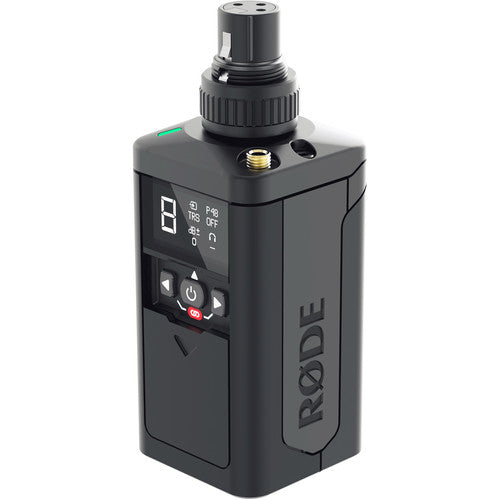

The TX-XLR sports an OLED panel, as well as an XLR input with a locking collar and a 3.5mm TRS locking input jack. This allows you to use various input configurations; though the TX-XLR can switch between its XLR and TRS inputs, you cannot use both at the same time. Whichever input you choose, you can power the unit with two AA batteries, a Sony NP-F battery, or even continuously via a micro-USB connection. While the unit will run up to 7 hours, please note that activating phantom power will reduce the usable running time, depending on the power source you're using. The unit comes with a built-in internal antenna.
Note: Each RODELink system creates a wireless peer-to-peer connection allowing the transmitter and the receiver to operate as a pair. This means that the transmitter can transmit audio to only one receiver at a time. Conversely, the receiver can only receive audio from one transmitter at a time.
SPECIFICATIONS
- Key Specs
- Wireless Technology: Digital 2.4 GHz
- Max Operating Range: 328.1' / 100 m
- Transmitter Type: Plug-On
- Audio I/O:
- 1 x XLR 3-Pin Female Input (Lockable)
- 1 x 1/8" / 3.5 mm TRS Female Input
- 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output
- Max Operating Range: 328.1' / 100 m
- Built-In Recorder: No
- Timecode Support: No
- Encryption: 128-Bit
- Transmitter
- Transmitter Type: Plug-On
- RF Output Power: Not Specified by Manufacturer
- Audio I/O:
- 1 x XLR 3-Pin Female Input (Lockable)
- 1 x 1/8" / 3.5 mm TRS Female Input
- 1 x 1/8" / 3.5 mm TRS Female Unbalanced Output
- Included Cable Connector: None
- Phantom Power: +48 V
- Muting: None
- Audio Input Level: 2.8 V p-p (Max)
- Auto-Level Control: Yes
- Signal Processing: None
- Power Requirements: Battery, Bus Power (USB)
- Battery Type: 2 x AA (Not Included), 1 x NP-F / L-Series (Not Included)
- USB/Lightning I/O: 1 x Micro-USB (Bus Power)
- Display & Indicators: LCD
- Dimensions: 4.7 x 1.8 x 1.8" / 120 x 45 x 45 mm
- Weight: 7.8 oz / 222 g
- Packaging Info
- Package Weight: 0.89 lb
- Box Dimensions (LxWxH): 6.95 x 5 x 2.55"
KEY FEATURES
For RODELink Digital Wireless Systems
One-Touch Sync
48V Phantom Power via XLR Jack
Plug-In Power via TRS
Powered by AA or Sony NP-F Batteries
Micro-USB Continuous Power
Internal Antenna
XLR Input with Locking Collar
3.5mm TRS Locking Input Jack
