DESCRIPTION

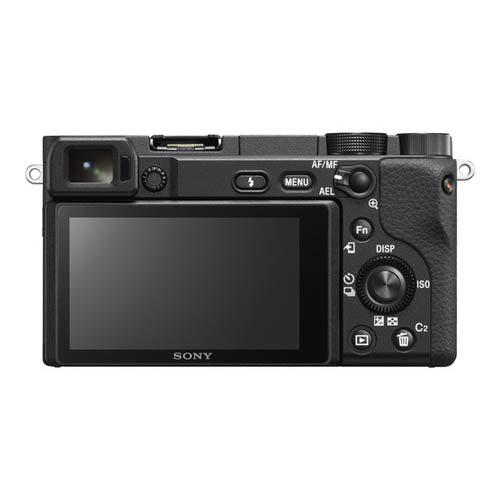

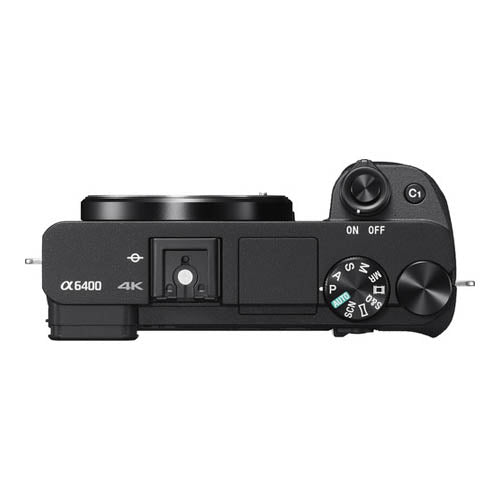

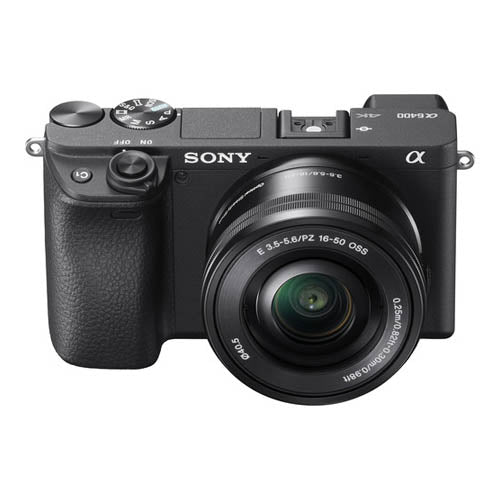

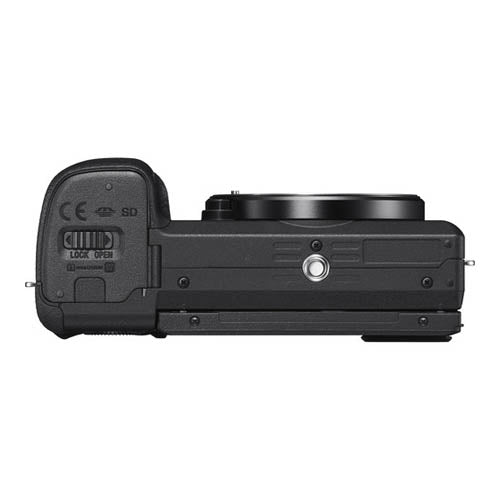

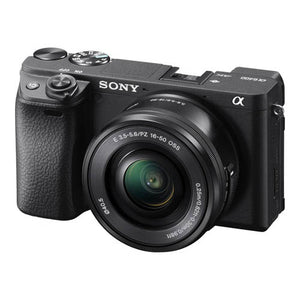

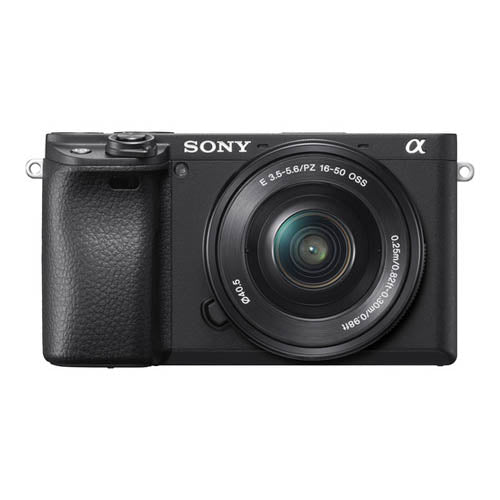

Sony a6400 Mirrorless Camera
Grab the Best of Life
The Sony a6400 is a stylish APS-C-format mirrorless camera with well-rounded photo and video capabilities. It has a solid design and appropriate performance to support creativity. This camera is the perfect companion for shooting your everyday moments and once-in-a-lifetime adventures thanks to a tried-and-true sensor design, quick and accurate AF performance, and smart operability.
24.2MP APS-C Exmor CMOS Sensor and BIONZ X Processor
The APS-C-format 24.2MP Exmor CMOS sensor realizes smooth, nuanced image quality with minimal noise and high sensitivity from ISO 100-32000, which can further be expanded to ISO 102400 for working in low-light conditions. The sensor features a unique design that utilizes thin copper wiring, enhanced circuit processing, and an enhanced front-end LSI to boost light-gathering abilities, reduce noise, and increase readout speeds to benefit video recording. The sensor and BIONZ X processor combination also avails a top continuous-shooting rate of 11 fps with AF and AE, or up to 8 fps with a silent shutter, and permits 14-bit raw file output for a wide tonal and color scale.
UHD 4K Video Recording in XAVC S Format
- Internal recording of UHD 4K video is possible in multiple frame rates up to 30 fps using the full width of the sensor with 8-bit 4:2:0 color sampling using the 100Mbps XAVC S codec.
- Oversampled 4K recording is also possible, which uses a 6K capture area within the Super 35 area, for greater detail. This full pixel readout is void of pixel binning for higher quality imagery with reduced moiré and aliasing.
- Affording extensive customizable color and gamma controls, the ZV-E10 allows users to adjust the gamma, black level, knee, color level, and more. Use the same S-Log2 Gamma Curve that is found on high-end Sony Cinema cameras, which squeezes up to 1300% more dynamic range into the video signal then traditional Rec. 709, for increased post-production flexibility. HLG (Hybrid Log-Gamma) support is also available, along with the BT.2020 color space, for recording within a wide color gamut and, in addition to S-Log2, S-Log3 is also available for producing an effective 14-stop dynamic range with increased grading control in the shadow to mid-tone regions of the image.
- In addition to high-resolution internal recording, uncompressed HDMI output also enables the use of an optional external recorder for clean 4K recording with 4:2:2 sampling.
- Interval shooting mode is ideal for creating time-lapse movies with the aid of Imaging Edge software. Intervals can be selected between 1-60 seconds for recording up to 9999 sequential frames.
- 4K video recording also avails the ability to produce 8MP stills during playback by taking a frame grab from a movie and storing it as a separate file.
- Slow & Quick (S&Q) mode allows shooters to capture Full HD video at specified steps between 1-120 fps. These settings will allow you to slow down action as well as speed up a slow-moving scene.
4D FOCUS
A strong 4D FOCUS system that nearly covers the full sensor surface uses 425 on-chip phase-detection points and 425 contrast-detection areas to provide fine focusing in as low as 0.02 seconds. High-density Tracking AF Technology, which is skilled at tracking moving targets in a variety of lighting settings, is made possible by the hybrid AF system's density of focusing points.
- Real-time Eye AF can be used to base focus on recognized human subjects' eyes for portraits and is available in both AF-S and AF-C modes and for both stills and video.
- Eye AF can be used when photographing animal subjects, too, with any focusing mode when shooting stills.
- Lock-on AF maintains focus on moving subjects throughout the use of a configurable frame that is set over the desired moving subject
- Expand Flexible Spot employs neighboring focus points to retain focus on moving subjects even if the originally selected point loses focus
- The Focus Magnifier function can be used for critical focus when homing in on minute subject details

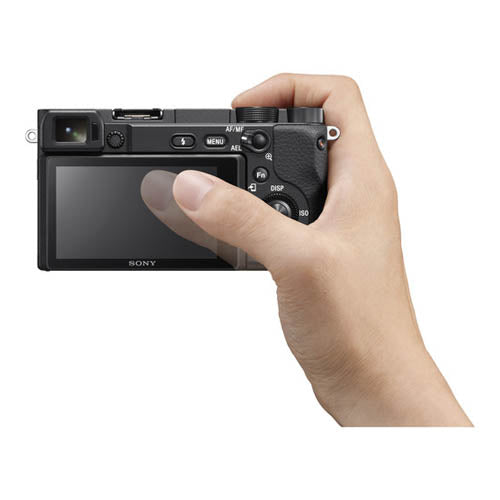

- Rear touchscreen can be used for Touch Focus and Touch Tracking control and a Touchpad Focus Control mode lets you use the rear screen intuitively while keeping your eye to the viewfinder
- In addition to autofocus, the a6400 also features a Peaking MF function to benefit manual focus control by highlighted sharp edges of contrast for a more objective means of acquiring sharp focus
Body Design and Connectivity
- Tru-Finder 2.36m-dot OLED electronic viewfinder offers a bright, high-resolution means for eye-level monitoring.

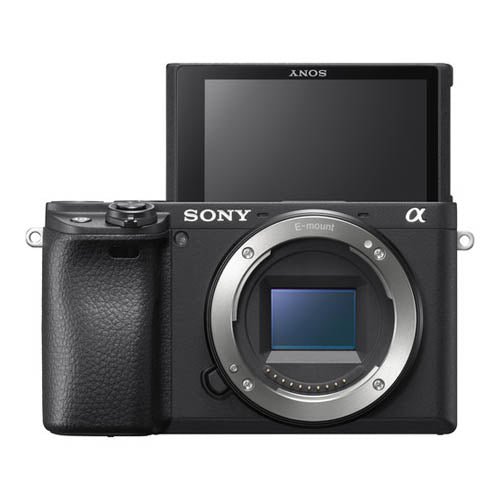

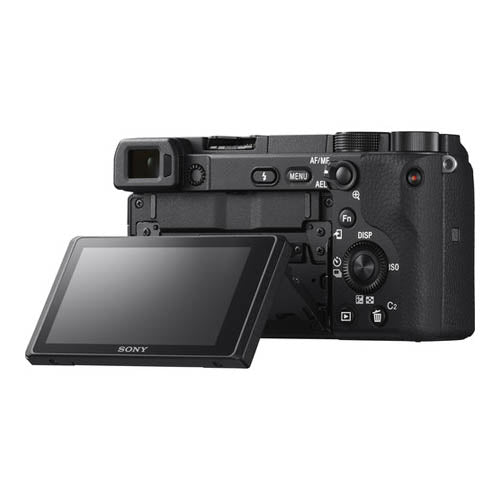

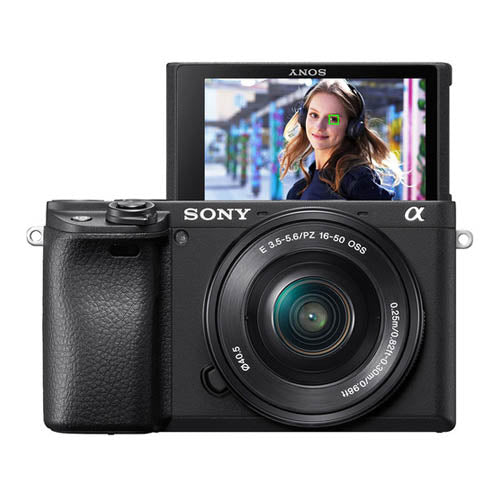

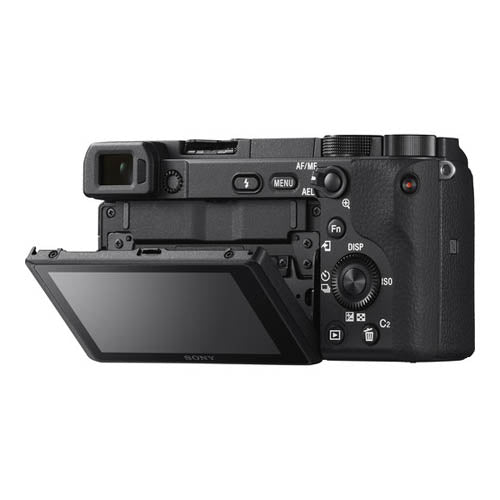

- A 3.0" 921.6k-dot LCD touchscreen can be tilted 180° upward or 74° downward to suit working from high and low angles. The screen also incorporates White Magic technology with an RGBW pixel structure for increased brightness to support use in daylight conditions.
- The touchscreen design avails access to Touch Focus control, for immediate focus point selection, as well as a Touchpad function which lets you smoothly and intuitively select a focus point on the screen while you're looking into the viewfinder.

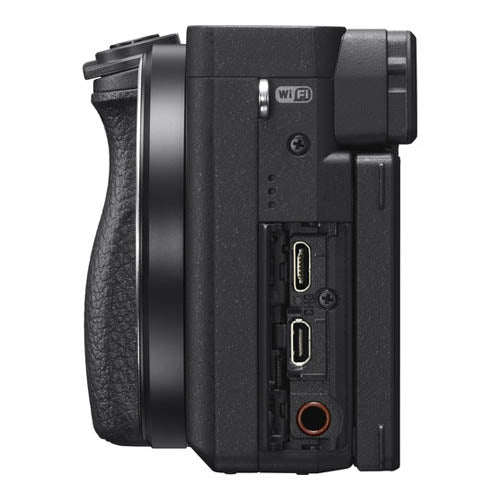

- Integrated 3.5mm microphone ports afford greater control over audio during video recording.
- The included NP-FW50 rechargeable lithium-ion is rated for approximately 410 shots per charge when working with the LCD screen or 360 shots when using the viewfinder.
- In addition to the battery, the a6400 can also be powered via a USB connection to a computer or mobile battery. This connection can also be used to charge the battery.
- Built-in Wi-Fi enables the a6400 to instantly share imagery to mobile devices for direct sharing online to social networking, via email, and to cloud storage sites. NFC (Near Field Communication) is also supported, which allows for one-touch connection between the camera and compatible mobile devices; no complex set-up is required. Once connected, the linked mobile device can also display a live view image on its screen and remotely control the camera's shutter.
- Bluetooth connectivity allows for location data acquisition.

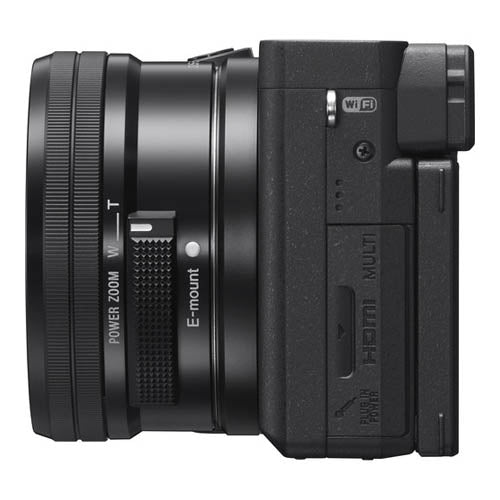

Sony E PZ 16-50mm f/3.5-5.6 OSS Lens
Sleek and Retractable Standard Zoom
The E PZ 16-50mm f/3.5-5.6 OSS Lens from Sony is the perfect accessory for your small, APS-C mirrorless camera. It features a versatile equivalent zoom range of 24-75mm and a retractable construction that makes your system much more manageable when not in use. This is a go-to lens while travelling or for daily general shooting needs because of the practical focal length range and portable form factor.
Form Factor and Optical Design
- A variable aperture of f/3.5-5.6 helps keep the lens' overall size and weight to a minimum
- Due to a retractable design, this lens can be made to be extremely compact when not in use
- One extra-low dispersion glass element is featured in the lens design to help reduce chromatic aberrations and color fringing for improved clarity and color neutrality
- Four aspherical elements are incorporated in the lens design to reduce astigmatism, field curvature, coma, and other monochromatic aberrations.
- Rounded seven-blade diaphragm contributes to a pleasing bokeh quality when employing selective focus techniques.
Power Zoom, Image Stabilization, and AF
- Power Zoom mechanism enables making smooth zoom movements, suitable for video recording, via the on-lens switch or via camera-based controls on select camera bodies
- Optical SteadyShot image stabilization helps to minimize the appearance of camera shake for sharper imagery when shooting handheld with slower shutter speeds. This stabilization system can also be combined with select camera's sensor-shift type image stabilization for more effective control of camera blur
- An internal focus design contributes to fast autofocus speeds and the minimum focus distance is just 9.8", suiting working with close-up subjects.
SPECIFICATIONS
Camera: General
- Product Series
- Alpha
- Color
- Black
Camera: Lens
- Lens Mount
- Sony E
- Lens Included
- 16-50mm Power Zoom Lens
Camera: Image Sensor
- Format/Size
- APS-C (1.5x Crop Factor) / 23.5 x 15.6mm
- Type
- CMOS
- Pixels
- Actual: 25 Megapixel
Effective: 24.2 Megapixel
- Aspect Ratio
- 3:2, 16:9
- Dust Reduction System
- Yes
- Image Stabilization
- No
Camera: Recording System
- File Formats
- Still Images: JPEG, RAW
Movies: AVCHD 2.0, MP4, XAVC S
Audio: AC3, Dolby Digital 2ch, Linear PCM
- Raw Output
- 14-Bit
- Video Recording
- 3840 x 2160p at 24/25/30 fps (100, 60 Mb/s XAVC S)
1920 x 1080p at 100/120 fps (100, 60 Mb/s XAVC S)
1920 x 1080p at 24/25/30/50/60 fps (50 Mb/s XAVC S)
1920 x 1080p at 50/60 fps (25 Mb/s XAVC S)
1920 x 1080p at 25/30 fps (16 Mb/s XAVC S)
1920 x 1080i at 50/60 fps (24, 17 Mb/s AVCHD)
- Video Aspect Ratio
- 16:9
- File Size (Video)
- N/A
- Print
- Exif Print, Print Image Matching III, DPOF setting
- Maximum Recording Time
- N/A
- Camera Start-up Time / Shutter Lag
- N/A
- Picture Style
- Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn leaves, Black & White, Sepia, Style Box (1-6), (Contrast (-3 to +3 steps), Saturation (-3 to +3 steps), Sharpness (-3 to +3 steps))
Camera: Audio
- Microphone
- Built-in stereo microphone
Camera: Display Screen
- Touch Screen
- Yes
- Size
- 3.0"
- Technology / Resolution
- TFT / 921,600 dots
- Adjustable Angle
- Up by approx. 180 degrees, Down by approx. 74 degrees
- Brightness Control
- Manual (5 steps between -2 and +2), Sunny Weather mode
- Screen Coverage
- N/A
Camera: Viewfinder
- Type
- XGA OLED, 1.0cm (0.39" type) electronic viewfinder (color)
- Resolution (Pixels)
- 2,359,296 dots
- Viewfinder Size
- 0.39"
- Eye Point
- Approx. 23mm from the eyepiece lens, 21.4mm from the eyepiece frame at -1m-1 (CIPA standard)
- Diopter Adjustment
- -4.0 to +3.0m-1
- Field Coverage
- 1
- Viewfinder Magnification
- Approx. 1.07x (35mm camera equivalent: Approx. 0.70x) with 50mm lens at infinity, -1m-1
Camera: Playback
- Playback Functions
- Single (with or without shooting information Y RGB histogram & highlight/shadow warning), 12/30-frame index view, Enlarged display mode (L: 16.7x, M: 11.8x, S: 8.3x, Panorama (Standard): 19.2x, Panorama (Wide): 29.1x), Auto Review (10/5/2 sec.,Off), Image orientation (Auto/Manual/Off selectable), Slideshow, Panorama scrolling, Folder selection (Date/ Still/ AVCHD/XAVC S HD/XAVC S 4K), Forward/Rewind (movie), Delete, Protect, Rating, Disp Cont Shoot Grp
Camera: Exposure Control
- Shutter Type
- Electronically controlled, vertical-traverse, focal-plane type
- Shutter Speed
- Still images: 1/4000 to 30 sec., Bulb
Movies: 1/4000 to 1/4 (1/3-step)
NTSC: Up to 1/60 in AUTO mode (up to 1/30 in Auto Slow Shutter mode)
PAL: Up to 1/50 in AUTO mode (up to 1/25 in Auto Slow Shutter mode
- ISO Sensitivity / Speed
- Still images: ISO 100-32000 (ISO numbers up to ISO 102400 can be set as expanded ISO range.), AUTO (ISO 100-6400, selectable lower limit and upper limit), Movies: ISO 100-32000 equivalent, AUTO (ISO 100-6400, selectable lower limit and upper limit) (Recommended Exposure Index)
- Continuous Shooting
- Up to 11 fps at 24.2 MP for up to 46 Frames in Raw Format
Up to 11 fps at 24.2 MP for up to 116 Frames in JPEG Format
Up to 11 fps at 24.2 MP for up to 115 Frames in JPEG Format
Up to 11 fps at 24.2 MP for up to 99 Frames in JPEG Format
- Remote Control
- RMT-DSLR2 (Optional)
- Metering Modes
- Multi-segment, Center-weighted, Spot (Standard/Large), Entire Screen Avg., Highlight
- Exposure Modes
- AUTO (iAuto/Superior Auto), Programmed AE (P), Aperture priority (A), Shutter-speed priority (S), Manual (M), Movie (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M)), Slow & Quick Motion (Programmed AE (P) / Aperture priority (A) / Shutter-speed priority (S) / Manual (M)), Sweep Panorama, Scene Selection
- Exposure Compensation
- +/-5.0 EV (in 1/3 EV or 1/2 EV steps)
- Metering Range
- EV -2.0 to EV 20.0
- White Balance Modes
- Auto, Cloudy, Color Temperature, Color Temperature Filter, Custom, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Day White), Fluorescent (Daylight), Fluorescent (Warm White), Incandescent, Shade, Underwater
- Scene Modes
- Portrait, Sports Action, Macro, Landscape, Sunset, Night Scene, Hand-held Twilight, Night Portrait, Anti Motion Blur
- AE Lock
- Available with AE lock button. Locked when shutter button is pressed halfway
- Self Timer
- 10 sec. delay/5 sec. delay/2 sec. delay/Continuous self-timer (3 frames after 10 sec. delay/5 frames after 10 sec. delay/3 frames after 5 sec. delay/5 frames after 5 sec. delay/3 frames after 2 sec. delay/5 frames after 2 sec. delay)/Bracketing self-timer (Off/2 sec. delay/5 sec. delay/10 sec. delay)
- AE Bracket
- Bracket: Single/Bracket: Cont., 3/5/9 frames selectable. With 3 or 5 frames, in 1/3, 1/2, 2/3, 1.0, 2.0 or 3.0 EV increments, with 9 frames, in 1/3, 1/2, 2/3 or 1.0 EV increments
Camera: Focus
- Focus Mode
- Automatic (A), Continuous-Servo AF (C), Direct Manual Focus (DMF), Manual Focus (M), Single-servo AF (S)
- Autofocus Points
- Phase Detection: 425
Contrast Detection: 425
- AF Assist Beam / Illuminator
- Yes (with built-in LED type)
- AF Lock
- N/A
Camera: Flash

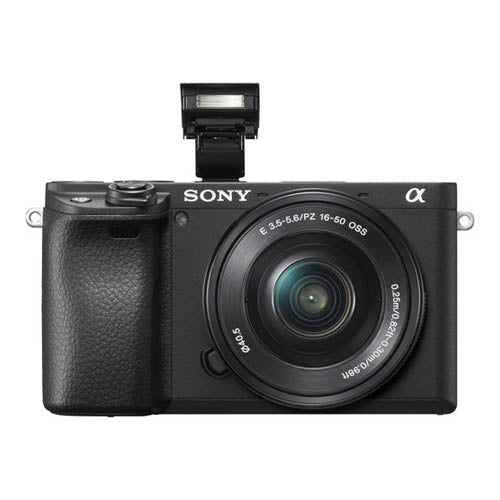

- Built-In Flash
- Yes
- Guide Number
- 6 (in meters at ISO 100)
- Flash Modes
- Flash off, Autoflash, Fill-flash, Slow Sync., Rear Sync., Red-eye reduction (On/Off selectable), Wireless control, Hi-speed sync
- Flash Range
- N/A
- Flash Coverage
- 16mm (focal-length printed on the lens body)
- Flash Control
- Pre-flash TTL
- Flash Exposure Compensation
- +/-3.0 EV (switchable between 1/3 and 1/2 EV steps)
- Max Flash Sync Speed
- 1 / 160 Second
- External Flash Connection
- Hot Shoe, Wireless
Camera: Interface
- Microphone Jack
- 3.5mm Stereo minijack
- Headphone
- No
- HDMI
- HDMI micro connector (Type-D), BRAVIA Sync (Control for HDMI), PhotoTV HD, 4K movie output/4K still image PB
- USB
- USB 2.0
- Wi-Fi
- Wi-Fi Compatible, IEEE 802.11b/g/n (2.4 GHz band), View on Smartphone, Remote control via Smartphone, Send to Computer, View on TV
- NFC
- Yes (NFC forum Type 3 Tag compatible),One-touch remote, One-touch sharing
Camera: Power
- Battery
- Rechargeable battery pack NP-FW50
- Battery Life
- Still Images: Approx. 360 shots (Viewfinder) / Approx. 410 shots (LCD monitor) (CIPA standard)
Movie, Actual Recording: Approx. 70 min (Viewfinder) / Approx. 75 min (LCD monitor) (CIPA standard)
Movie, Continuous Recording: Approx. 125 min (Viewfinder)/Approx. 125 min (LCD monitor) (CIPA standard)
- AC Adapter
- AC-PW20
Camera: Storage Media
- Compatible Media
- Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro (M2), SD memory card, SDHC memory card (UHS-I compliant), SDXC memory card (UHS-I compliant), microSD memory card, microSDHC memory card, microSDXC memory card
Camera: Additional Features
- Face Detection
- Face Priority in AF (On/Off), Face Priority in Multi Metering (On/Off), Registered face priority (On/Off) , Face registration (Max. number of detectable faces: 8)
Lens: General
- Lens Series
- N/A
- Color
- Black
- Lens Type
- N/A
- Lens Mount
- Sony E
- Format Compatibility
- APS-C
Lens: Focus
- Focus Type
- Autofocus
- Focusing Technology
- N/A
- Closest Focus Distance
- 0.25m - 0.3m (0.82' - 0.98')
- Distance Information
- N/A
- Built-In Motor
- N/A
Lens: Optics
- Focal Length
- 16 to 50mm
- Angle Of View
- 83 deg. to 32 deg.
- 35mm Equivalent Focal Length
- 24 to 75mm
- Coverage
- N/A
- Minimum Aperture
- f/22 to 36
- Maximum Aperture
- f/3.5 to 5.6
- Maximum Magnification
- 0.215x
- Lens Coating
- N/A
- Aspherical Elements
- 4
- ED Glass Elements
- 1
- Filter Size
- 40.5mm (Front)
Lens: Construction
- Lens Elements / Groups
- 9 Elements in 8 Groups
- Diaphragm Blades
- 7, Rounded
Lens: Features
- Image Stabilization Type
- Optical SteadyShot
- Tripod Collar
- N/A
- Waterproof / Water Resistant
- N/A
- Dust Resistant
- N/A
Dimensions and Weight
- Dimensions
- Camera (WxHxD):
Approx. 120 x 66.9 x 59.7mm (4.72 x 2.63 x 2.35")
Approx. 120 x 66.9 x 49.9mm (4.72 x 2.63 x 1.96") (from grip to monitor)
Lens (Dia.xL): 64.7 x 29.9mm (2.55 x 1.18")
- Weight
- Camera: Approx. 14.3 oz (405.40g) (With Battery and Memory Card Included)
Lens: 116g (4.09 oz)
KEY FEATURES
- 24.2MP APS-C Exmor CMOS Sensor
- BIONZ X Image Processor
- Real-Time Eye AF & Real-Time Tracking
- XGA Tru-Finder 2.36m-Dot OLED EVF
- 3.0" 921.6k-Dot 180° Tilting Touchscreen
- Internal UHD 4K Video, S-Log3, and HLG
- Built-In Wi-Fi with NFC
- 425 Phase- & Contrast-Detect AF Points
- Up to 11 fps Shooting and ISO 102400
- E PZ 16-50mm f/3.5-5.6 OSS Lens
BOX CONTENTS
Sony a6400 Mirrorless Camera
- Sony NP-FW50 Lithium-Ion Rechargeable Battery (1020mAh)
- Sony AC Adapter
- Sony ALC-B1EM Body Cap for E-Mount Cameras
- Micro-USB Cable
- Shoulder Strap
- Eyepiece Cup
- Accessory Shoe Cap
Sony E PZ 16-50mm f/3.5-5.6 OSS Lens - Sony ALC-F405S 40.5mm Front Lens Cap
- Sony ALC-R1EM Rear Lens Cap
