DESCRIPTION
Use the DJI wearable Action 2 Dual-Screen Combo to record up to 180 minutes of your daily activities, athletic endeavours, or travel experiences. The Action 2's varied recording options include 32GB of internal storage, up to DCI 4K60, UHD 4K120, and 1080p240 video, as well as up to 12MP raw and JPEG still photographs. It also has an unique snap-together, modular magnetic design. Although the Action 2 is waterproof up to 33', the Touchscreen Module requires a separately sold case in order to be waterproof.
This kit includes a front-facing, 1.76" OLED touchscreen module, a magnetic lanyard for hands-free use, a magnetic 3-prong mount, and a ball joint adaptor in addition to the 4K Action 2 camera. Additionally increasing your lifespan to 160 minutes, this magnetic snap-on module adds 3 mics to create a 4-mic array with sonic zoom for better sound capture. Check out the separately sold DJI Mic, which uses a 3.5mm to USB Type-C converter to input audio to the Action 2 camera, to add wireless audio to your video recording.
Compact Action Camera

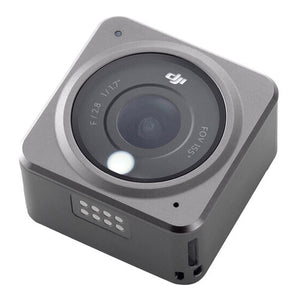

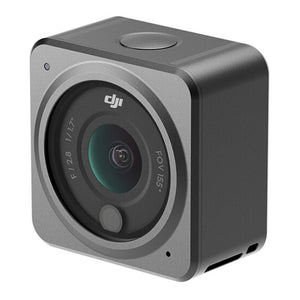

- Compact action camera with 1/1.7" CMOS sensor and wide 155°, f/2.8 lens
- Voice commands in English and Mandarin (traditional) Chinese
- Distortion correction
Supported Video Resolutions
- Record up to DCI 4K60 in 4:3, DCI 4K120 in 16:9, and 1080p240 in 16:9
- Supports slow motion and time-lapse
- Up to 12MP raw and JPEG photos
Front Touchscreen Module

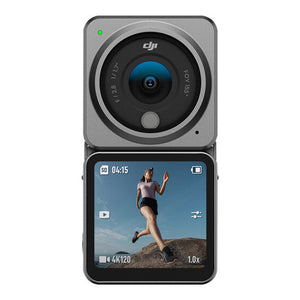

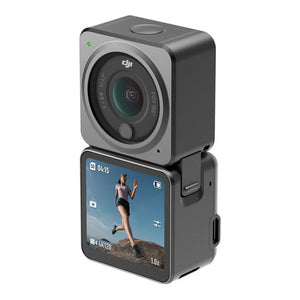

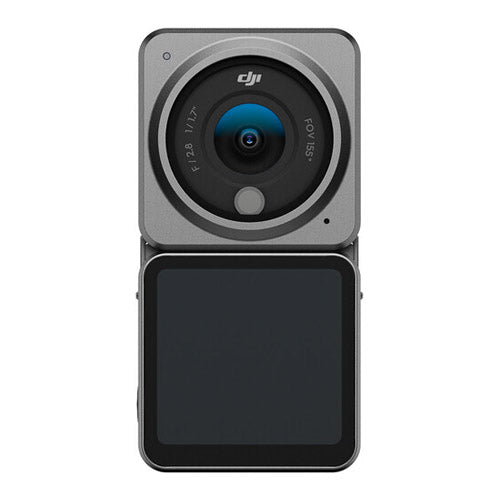

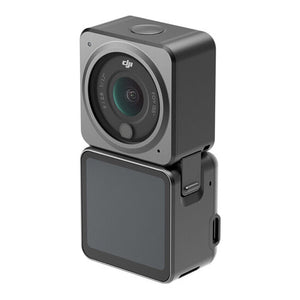

- Adds a front-facing 1.76" touchscreen OLED ideal for vloggers and selfies
- Built-in 4-microphone matrix stereo audio
- Extends runtime to 160 minutes
- Provides a microSD card slot for extended recording
- Quick snap-on, magnetic mounting
Creative Modes
- Add eye-catching effects to your content using Action 2's creative options, including:
- Time-lapse with selectable intervals from 0.5 to 40 seconds
- Selectable time-lapse duration of 5 to 30 minutes, 1 to 5 hours, or continuous
- Up to 8x slow motion
- Digital zoom
Magnetic Mounting
- Magnetic housing makes it easy to add and detach accessories quickly and without tools
- Includes a magnetic lanyard for hands-free capture and a magnetic 3-prong mount
- Separately available components include: Magnetic headband, ball joint mount, and 3-prong mount Macro lens, RC selfie stick, waterproof case, and floating grip

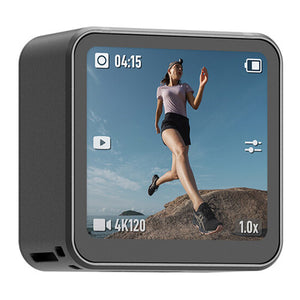

Rear Touchscreen Display

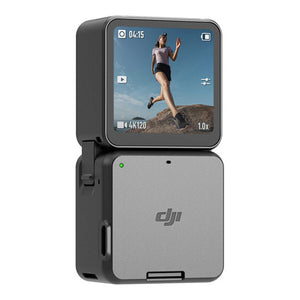

- Rear 1.76" touchscreen display with 446 x 424 resolution
Image Stabilization and Leveling
- RockSteady Electronic Image Stabilization (EIS) technology stabilizes footage at rates up to 100 fps
- HorizonSteady keeps your view level, even during extreme sports capture
Intelligent Audio
- 4-Mic Matrix Stereo audio using the single in-camera microphone and the three touchscreen module microphones
- Audio Zoom: the audio capture focuses in as you zoom with the camera
- Directional Audio: front, rear and side mics let you select the direction of your audio capture
- Dual-channel audio is available via the separately available DJI wireless mic two transmitter/single receiver set
Waterproof Camera
- The Action 2 camera is waterproof to 33', making it ideal for snorkeling, the beach, and poolside capture
- The Touchscreen Module is not waterproof unless used with a separately available housing
Internal Recording
- Records to 32GB of internal storage
Mimo App
- Use the intuitive Mimo app to edit and share your content
- An Artificial Intelligence (AI) editing feature can be used to add transitions and music to your videos
SPECIFICATIONS
Camera Unit: Camera
- Sensor
- 1/1.7" CMOS
- Lens
- FOV: 155 Degree f/2.8
- ISO Range
- Photo: 100-6400
Video: 100-6400
- Electronic Shutter Speed
- Photo: 1/8000-30 s
Video: 1/8000 s to the limit of frames per second
- Max Photo Resolution
- 4000 x3000
- Zoom
- Digital Zoom
Photo: 4x
Video: 2x (> 60fps); 4x (<= 60fps)
Slow Motion: 2x
Timelapse: Not available
- Still Photography Modes
- Single: 12 MP
Countdown: Off/0.5/1/2/3/5/10 seconds
- Video
- 4K (4:3): 4096 x3072 @ 24/25/30/48/50/60 fps
4K (16:9): 3840 x2160 @ 100/120 fps
4K (16:9): 3840 x2160 @ 24/25/30/48/50/60 fps
2.7K (4:3): 2688 x2016 @ 24/25/30/48/50/60 fps
2.7K (16:9): 2688 x1512 @ 100/120 fps
2.7K (16:9): 2688 x1512 @ 24/25/30/48/50/60 fps
- Video (Contd.)
- 1080p (16:9): 1920 x1080 @ 100/120/200/240 fps
1080p (16:9): 1920 x1080 @ 24/25/30/48/50/60 fps
- Slow Motion
- 4K: 4x (120fps)
2.7K: 4x (120fps)
1080p: 8x (240fps), 4x (120fps)
- Timelapse
- 4K/2.7K/1080p
Intervals: 0.5/1/2/3/4/5/6/7/8/10/13/15/20/25/30/40 seconds
Duration: 5/10/20/30 minutes, 1/2/3/5 hours, Infinite
- Stabilization
- EIS: Rocksteady 2.0+HorizonSteady##EIS is not supported when recording at 100fps or above. Horizon Steady is only available when the video resolution is 1080p (16:9) or 2.7K (16:9)
- Max Video Bitrate
- 130 Mbps
- Supported File Formats
- exFAT
- Photo Format
- JPEG / RAW
- Video Formats
- MP4 (H.264 / HEVC)
- Supported SD Cards
- microSD (Max. 256GB)
- Recommended microSD Cards
- DJI Action 2 supports up to 256GB SDHC/SDXC UHS-I Speed Grade 1 or Speed Grade 3 microSD cards
Recommended models:
Samsung EVO 32GB UHS-I Speed Grade 1 microSDHC
Samsung EVO Plus 32GB UHS-I Speed Grade 1 microSDXC
SanDisk Extreme 64GB V30 A2 UHS-I Speed Grade 3 microSDXC
- Recommended microSD Cards (Contd.)
- SanDisk High Endurance 32GB UHS-I Speed Grade 3 microSDXC
SanDisk Extreme Pro 32GB UHS-I Speed Grade 3 microSDXC
SanDisk Extreme 16GB UHS-I Speed Grade 3 microSDXC
Lexar 633x 16GB UHS-I Speed Grade 1 microSDHC
Camera Unit: Connection
- Operating Time
- 70 minutes Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only
- Wi-Fi Operation Frequency Range
- 2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
- Wi-Fi Protocol
- 802.11 a/b/g/n/ac
- Wi-Fi Transmit Power (EIRP)
- 2.4 GHz: <16 dBm (FCC/CE/SRRC/MIC)
5.1 GHz: <14 dBm (FCC/CE/SRRC/MIC)
5.8 GHz: <14 dBm (FCC/CE/SRRC)
- Bluetooth Operation Frequency Range
- 2.400-2.4835 GHz
- Bluetooth Transmit Power (EIRP)
- <4 dBm
- Bluetooth Protocol
- BLE 5.0
Camera Unit: Audio
- Audio Output
- 48 KHz; AAC
Camera Unit: Environmental
- Operating Temperature
- 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
- Charging Temperature
- 41 Degree to 140 Degree F (5 Degree to 60 Degree C)
Camera Unit: Battery
- Type
- LiPo 1S
- Capacity
- 580 mAh
- Energy
- 2.23 Wh
- Voltage
- 3.85 V
- Battery Info
- Required, included
- Battery Material
- Lithium Polymer
- Battery Quantity
- 1
- Battery Type
- -
Camera Unit: General
- Waterproof
- 10m without Waterproof Case, 60m with Waterproof Case
Front Touchscreen Module: Not waterproof without Waterproof Case, 60 m with Waterproof Case
Power Module: Not waterproof without Waterproof Case, 60 m with Waterproof Case
- Number of Microphones
- 1
- Touchscreen
- 1.76" 350 ppi
500 +/-50 cd/sq. m 446 x424
- Dimensions
- 1.53 x 1.53 x 0.87" (39 x 39 x 22.3mm)
- Weight
- 1.97 oz (56g)
Front Touchscreen Module: Environmental
- Operating Temperature
- 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
- Charging Temperature
- 41 Degree to 140 Degree F (5 Degree to 60 Degree C)
Front Touchscreen Module: Battery
- Battery
- LiPo 2S
- Capacity
- 1300 mAh
- Energy
- 5 Wh
- Voltage
- 3.85 V
- Operating Time
- Camera Unit + Front Touchscreen Module: 160 minutes Tested in a laboratory environment while recording 1080p/30fps (Power Reserve) video with electronic image stabilization disabled. This figure should be used for reference only
- Charging Time
- Camera Unit + Front Touchscreen Module: 90 minutes Tested in a laboratory environment when using a 5V/2A USB adapter
Front Touchscreen Module: General
- Touchscreen
- 1.76" 350 ppi
500 +/-50 cd/sq. m 446 x424
- Dimensions
- 1.53 x 1.63 x 0.96" (39 x 41.6 x 24.6mm)
- Weight
- 2.25 oz (64g)
KEY FEATURES
Action 2 Magnetic 4K Camera
1.76" Front-Facing Touchscreen OLED
Up to DCI 4K60, UHD 4K120, 1080p240
4-Mic Matrix Stereo Audio with Zoom
32GB Internal Storage
Module Extends Runtime to 160 Minutes
Magnetic Adapter Mount & Lanyard
1/1.7" CMOS Sensor, Wide 155° FOV
Camera is Waterproof to 33'
Image Stabilization & Horizon Leveling

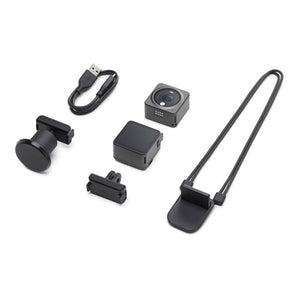

BOX CONTENTS
- Get Free DJI Action 2 Magnetic Protective Case
- DJI Action 2 Dual-Screen Combo
- DJI Action 2 Camera
- DJI Action 2 Front Touchscreen Module
- Magnetic Lanyard
- DJI Magnetic Ball-Joint Adapter Mount for Action 2
- DJI Action 2 Magnetic Adapter Mount
- Power Cable
- Limited 1-Year Manufacturer Warranty
