Sensor
1/1.7" CMOS
Lens
FOV: 155 Degree
f/2.8
ISO Range
Photo: 100-6400
Video: 100-6400
Electronic Shutter Speed
Photo: 1/8000-30 s
Video: 1/8000 s to the limit of frames per second
Max Photo Resolution
4000 x3000
Zoom
Digital Zoom
Photo: 4x
Video: 2x (> 60fps); 4x (<= 60fps)
Slow Motion: 2x
Timelapse: Not available
Still Photography Modes
Single: 12 MP
Countdown: Off/0.5/1/2/3/5/10 seconds
Video
4K (4:3): 4096
x3072 @ 24/25/30/48/50/60 fps
4K (16:9): 3840 x2160 @ 100/120 fps
4K (16:9): 3840 x2160 @ 24/25/30/48/50/60 fps
2.7K (4:3): 2688 x2016 @ 24/25/30/48/50/60 fps
2.7K (16:9): 2688 x1512 @ 100/120 fps
2.7K (16:9): 2688 x1512 @ 24/25/30/48/50/60 fps
Video (Contd.)
1080p (16:9): 1920
x1080 @ 100/120/200/240 fps
1080p (16:9): 1920 x1080 @ 24/25/30/48/50/60 fps
Slow Motion
4K: 4x (120fps)
2.7K: 4x (120fps)
1080p: 8x (240fps), 4x (120fps)
Timelapse
4K/2.7K/1080p
Intervals: 0.5/1/2/3/4/5/6/7/8/10/13/15/20/25/30/40 seconds
Duration: 5/10/20/30 minutes, 1/2/3/5 hours, Infinite
Stabilization
EIS: Rocksteady
2.0+HorizonSteady##EIS is not supported when recording at 100fps or above.
Horizon Steady is only available when the video resolution is 1080p (16:9) or
2.7K (16:9)
Max Video Bitrate
130 Mbps
Supported File Formats
exFAT
Photo Format
JPEG / RAW
Video Formats
MP4 (H.264 / HEVC)
Supported SD Cards
microSD (Max.
256GB)
Recommended microSD Cards
DJI Action 2
supports up to 256GB SDHC/SDXC UHS-I Speed Grade 1 or Speed Grade 3 microSD
cards
Recommended models:
Samsung EVO 32GB UHS-I Speed Grade 1 microSDHC
Samsung EVO Plus 32GB UHS-I Speed Grade 1 microSDXC
SanDisk Extreme 64GB V30 A2 UHS-I Speed Grade 3 microSDXC
Recommended microSD Cards (Contd.)
SanDisk High
Endurance 32GB UHS-I Speed Grade 3 microSDXC
SanDisk Extreme Pro 32GB UHS-I Speed Grade 3 microSDXC
SanDisk Extreme 16GB UHS-I Speed Grade 3 microSDXC
Lexar 633x 16GB UHS-I Speed Grade 1 microSDHC
Operating Time
70 minutes Tested
in a laboratory environment while recording 1080p/30fps (Power Reserve) video
with electronic image stabilization disabled. This figure should be used for
reference only
Wi-Fi Operation Frequency Range
2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Wi-Fi Protocol
802.11 a/b/g/n/ac
Wi-Fi Transmit Power (EIRP)
2.4 GHz: <16 dBm
(FCC/CE/SRRC/MIC)
5.1 GHz: <14 dBm (FCC/CE/SRRC/MIC)
5.8 GHz: <14 dBm (FCC/CE/SRRC)
Bluetooth Operation Frequency Range
2.400-2.4835 GHz
Bluetooth Transmit Power (EIRP)
<4 dBm
Bluetooth Protocol
BLE 5.0
Audio Output
48 KHz; AAC
Camera Unit:
Environmental
Operating Temperature
32 Degree to 104
Degree F (0 Degree to 40 Degree C)
Charging Temperature
41 Degree to 140
Degree F (5 Degree to 60 Degree C)
Type
LiPo 1S
Capacity
580 mAh
Energy
2.23 Wh
Voltage
3.85 V
Battery Info
Required, included
Battery Material
Lithium Polymer
Battery Quantity
1
Battery Type
-
Waterproof
10m without
Waterproof Case, 60m with Waterproof Case
Waterproof
10m without
Waterproof Case, 60m with Waterproof Case
Number of Microphones
1

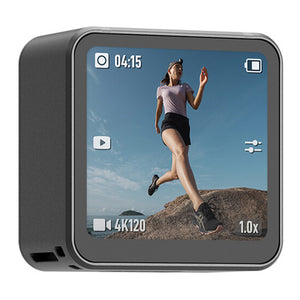

Touchscreen
1.76" 350 ppi
500 +/-50 cd/sq. m 446 x424
Dimensions
1.53 x 1.53 x
0.87" (39 x 39 x 22.3mm)
Weight
1.97 oz (56g)

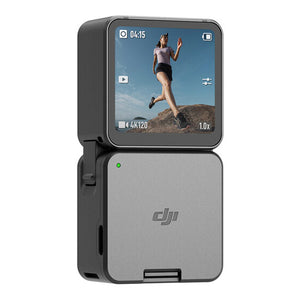

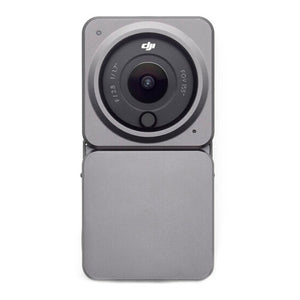

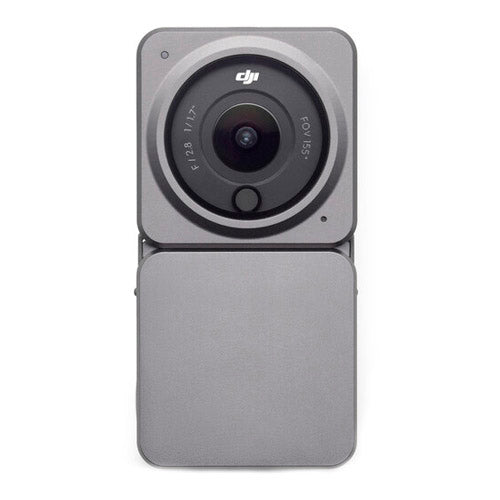

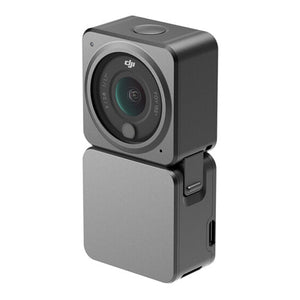

Power Module:
Environmental
Operating Temperature
32 Degree to 104
Degree F (0 Degree to 40 Degree C)
Charging Temperature
41 Degree to 140
Degree F (5 Degree to 60 Degree C)
Battery Type
LiPo 2S
Capacity
1300 mAh
Energy
5 Wh
Voltage
3.85 V
Operating Time
Camera Unit + Power
Module: 180 minutes Tested in a laboratory environment while recording 1080p/30fps
(Power Reserve) video with electronic image stabilization disabled. This figure
should be used for reference only
Charging Time
Camera Unit + Power
Module: 90 minutes Tested in a laboratory environment when using a 5V/2A USB
adapter
Waterproof
Not waterproof
without Waterproof Case, 60 m with Waterproof Case
Dimensions
1.53 x 1.63 x
0.84" (39 x 41.6 x 21.4mm)
Weight
1.99 oz (56.6g)
