DESCRIPTION

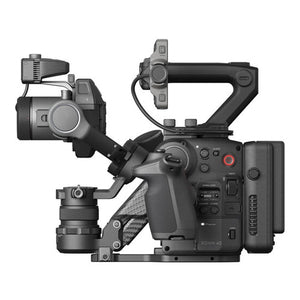

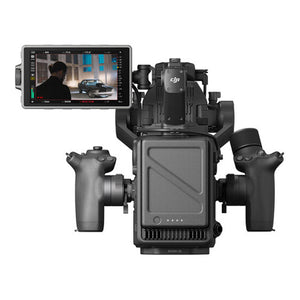

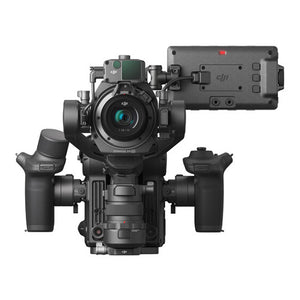

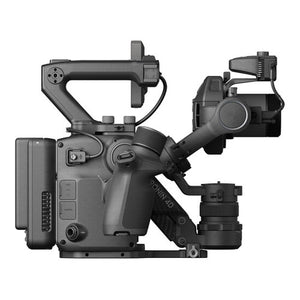

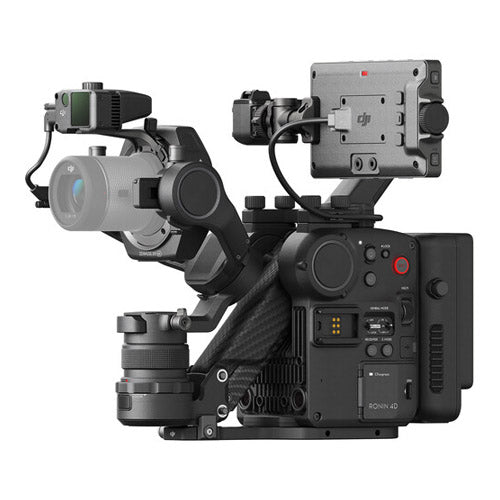

The Ronin 4D from DJI is a cutting-edge all-in-one camera/gimbal solution that is intended for use by independent creators working alone as well as dynamic professional video capture. The Z-axis (vertical) stabilization built into the X9-6K camera and the three-axis gimbal stabilization are referred to as "4D" stabilization. This system is perfect for independent content creators, indie filmmakers, and event videographers because it is made of lightweight carbon fiber and an aluminum/magnesium alloy. The 4D is well-suited as a "B" or second unit camera for larger cine-style productions thanks to its full-frame capture at rates up to 6K60 in Apple ProRes 422 HQ and Ronin's CineCore 3.0 image processing system with ACES workflow support.
All-in-One Camera Gimbal System
- This combo includes the main Zenmuse X9-6K full-frame video camera and a 3-axis gimbal, plus an array of modular monitor, focusing, and control components.
- Kit items include a DL lens mount, a LiDAR range finder, one TB50 battery, a charging hub, and left and right control handgrips.
- This innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig
- Combination design reduces your setup time at the start of the day and in between setups and locations
- Included modular components:
- Left and right control handgrips
- LiDAR range finder
- Top handle
- Baseplate
- Separately available components:
- 7" high-bright, touchscreen monitor
- Wireless video transmitter
- ProSSD 1TB media drive
- X9 focus motor
- Leica M lens mount
- 3-channel FIZ lens control unit
Note: A wireless video transmitter is not included in this combo kit.
v01.04.0200 Firmware Update
- Added support for Leica L-mount lenses.
- Manual calibration added for zoom lenses.
- Playback support for anamorphic de-squeeze on High-Bright monitor.
- Supports applied LUTs for HDMI output in clean output.
- Optimized the camera start-up time.
- Enhanced fine controls in manual focus mode.
- Added playback and zoom control support to handgrips.
- Fixed E-mount lens focus at infinity and manual iris reading.
- Fixed various gimbal settings issues.
- Fixed green tinge on video playback.
- Fixed LiDAR focus issues when waveform appeared normal.
CineCore 3.0 Imaging Processing System
- The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
- The Ronin 4D uses the CineCore 3.0 system to support internal ProRes 422 HQ and H.264 video
- Industry-standard ACES workflow support provides easy compatibility with other cinema cameras
Advanced 4-Axis Stabilization
- Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
- Z-axis stabilization is built into the camera; 3-axis stabilization in the gimbal
- Tilt stabilization uses dual, symmetrical motors
- Pan and X (roll) axes with additional stiffness buffering
- Downward ToF (time of flight) sensor
- Forward and downward-facing dual-vision sensors
- Built-in IMU (inertial measurement unit) and barometer
- New and improved stabilization algorithm

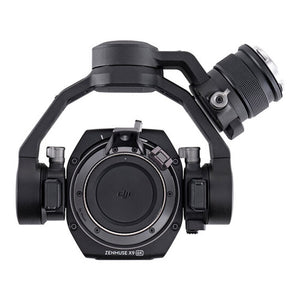

Zenmuse X9-6K Camera with DL Lens Mount
- The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses
- Full-frame capture with all but the 16mm DL lens
- Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses
- Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses
ProRes 422 HQ and H.264 Capture
- Capture up to 6K60 ProRes 422 HQ video in full-frame 2.39:1
- Capture up to 4K120 ProRes 422 HQ video in Super 35 2.39:1
- Capture up to 2K120 ProRes 422 HQ or H.264 in 17:9 full frame
Dual Native ISO
- 800/5000 dual native ISO
- EI 200 to 12800
- 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions
In-Camera ND Filters
- Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
- Especially handy for outdoor shoots with changing cloud cover
- Motorized filter system
- Carry in "built" mode for easy company moves
LiDAR Focus Control
- LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range
- Excellent focusing performance even in low-light environments
- Focus pulling can be viewed graphically, thanks to a built-in depth meter
- Intuitive and highly accurate focusing system
- Modular LiDAR focusing module attached to the front of the D4 rig
Autofocus Features
- Maintains focus, even when motion blur is produced by fast-moving subjects
- Separately available focus motor for use with manual lenses
- Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators
Single User or Crew-Assisted Operation
- Top-notch stabilization in a lightweight form
- Ideal for both solo operators as well as assistant-accompanied shoots
- Designed to counter footsteps from inexperienced gimbal shooters
- Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
- Sport mode is available with the touch of a button, accommodating faster-paced action
- Use in standard, underslung, jib, and crane setups
Automated Manual Focus
- The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
- Operators can grab the focus wheel of the right handgrip at any time to manually focus
- Hand grip focus wheel uses dynamic damping to provide a physical feel for focus changes
ActiveTrack Pro
- DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
- ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system
Dual Focus, Iris, and Control Grips
- Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
- Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode
Media Storage Options
- Requires a ProSSD 1TB drive (not included) to capture raw footage
- USB Type-C port for external recording, no reader needed to offload footage
- Integrated CFexpress Type-B card slot
Built-In 5.5" Touchscreen Monitor
- 5.5" 1920 x 1080 monitor
- 1000 cd/m² display
- Touchscreen control
- Rotates for optimal viewing
Audio Recording
- Integrated stereo microphones capture dual-channel 24-bit audio
- Built-in 3.5mm audio input port and XLR port via expander plate
Power Options
- Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
- Each battery provides up to 2.5 hours of capture time
- Batteries charge fully in approximately 1.5 hours
- Support auto-heating for cold weather use
- AC adapter for uninterrupted shooting
SPECIFICATIONS
Included Items
- Additional Included Items
- 3x 10mm 1/4"-20 Screw
Flat Head Screwdriver
DL Mount Body Cap
X9 Gimbal Base Cap
DX Mount Body Cap
DX Mount Lens Cap
Ronin 4D Gimbal Base Cap
TB50 Intelligent Battery
LiDAR Range Finder/Focus Motor Cable
Left Hand Grip Strap
Right Hand Grip Strap
Ronin 4D Carrying Case
X9 Counterweight (106g)
General
- Max Operating Time
- Approx. 150 minutes
- Intelligent Features
- ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)
- Storage Temperature
- -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
- Operating Temperature
- 14 Degree to 104 Degree F (-10 Degree to 40 Degree C)
Camera
- Sensor Size
- 35mm full-frame CMOS image sensor
- Base Lens Mount
- DX Mount, and support for other mount units
- Supported Lens Mounts
- DL Mount (standard), M Mount, and E Mount
- DL Lens
- DJI DL 24mm F2.8 LS ASPH
DJI DL 35mm F2.8 LS ASPH
DJI DL 50mm F2.8 LS ASPH
- Dynamic Range
- 14+ stops
- White Balance
- Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB
- Gamma
- D-Log, Rec.709, HLG
- EI Range
- X9-6K: EI 200-12800, Dual Native ISO 800/5000
- Shutter Speed
- Electronic Rolling Shutter 1/24s-1/8000s
- ND
- Built-in 9-stop ND filters: Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)
- Focus Control
- Autofocus, Manual Focus, Automated Manual Focus
- Supported File System
- exFAT
- Recording Format
- Apple ProRes RAW HQ/Apple ProRes RAW
Apple ProRes 422 HQ/Apple ProRes 422
H.264 (4:2:0 10-bit)
- Storage Media
- DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD
- DJI PROSSD 1TB Recording Format
- No restriction on recording format
- CFexpress 2.0 Type B Recording Format
- ProRes 422 HQ:
6K: 23.976/24/25/29.97/30fps
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
- USB-C SSD Recording Format
- ProRes 422 HQ:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
- Built-in Mic
- Built-in 2-ch stereo
- Audio Format
- LPCM 2-ch, 24-bit 48kHz
Gimbal
- Mechanical Range
- Pan: +/-330 Degree
Tilt: -75 Degree to 175 Degree
Roll: -90 Degree to 230 Degree
Z-Axis Range: approx 130mm
- Controllable Range
- Pan: +/-285 Degree
Tilt: -55 Degree to +155 Degree
Roll: +/-35 Degree
- Max Control Speed
- DJI Master Wheels or DJI Force Pro:
Tilt: 360 Degree /s
Roll: 360 Degree /s
Pan: 360 Degree /s
Ronin 4D Hand Grips:
Tilt: 120 Degree /s
Roll: 120 Degree /s
Pan: 120 Degree /s
- Maximum Z-Axis Payload
- 4.4 lbs (2kg) (including 2.3 lbs (1.04kg) gimbal)
- Angular Vibration Range
- +/-0.01 Degree
LiDAR Range Finder
- Operating Temperature
- 14 Degree to 104 Degree F (-10 Degree to 40 Degree C)
- LiDAR Range Measurement Precision
- 0.3-1m ( +/-1%)
1-10m ( +/-1.5%¼
- FOV
- 30cm to 3m @>18% reflectivity 60 Degree (horizontal) x 45 Degree (vertical)
30cm to 10m @>18% reflectivity 60 Degree (horizontal) x 7 Degree (vertical)
- Safety Rating
- Class 1 (IEC 60825-1:2014) (safe for human eyes)
- Operating Environment
- Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
DO NOT use in environments with dense fog or aim it at or through glass surfaces.
- Laser Wavelength
- 940 nm
- Single Pulse Width
- Two kinds of pulses emit in circulation: 5ns and 33.4ns.
- Max Laser Power
- 6 W
- Dimensions (L x W x H)
- 2.7 x 1.8 x 1.3" (71 x 47 x 34mm)
- Weight
- 3 oz (88g)
Main Monitor
- Screen Size
- 5.5" (13.9cm) (diagonal)
- Resolution
- 1920080
- Refresh Rate
- 60 Hz
- Max Brightness
- 1000 cd/sq. m
- Screen
- Rotational LCD touchscreen
O3 Pro Video Transmission
- Max Transmission Distance
- 20,000' (approx. 6km, FCC-compliant)
- Max Transmission Resolution & Frame Rate
- 1920080 @60fps
- Minimum End-to-End Latency
- 100 ms or 68 ms
- Wireless Frequency
- Non DFS frequency band:
2.400-2.483 GHz
5.150-5.250 GHz
5.725-5.850 GHz
DFS Frequency Band:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
- Transmitter Power (EIRP)
- 2.400-2.4835 GHz: <=33 dBm (FCC); <=20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz: <23 dBm (FCC/SRRC/MIC)
5.250-5.350 GHz: <30 dBm (FCC); <23 dBm (SRRC/MIC)
5.470-5.600 GHz, 5.650-5.725 GHz: <30 dBm (FCC);<23 dBm (CE/MIC)
5.725-5.850 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
- Max Bandwidth
- 40 MHz
- Max Bitrate
- 50 Mbps
Interface
- Main Body
- 3.5mm TRS Stereo Input Jack (supports mic, plug-in power mic, and line inputs)
3.5mm Stereo Output Jack
USB3.1 Type-C Data Port
6-pin 1B DC-IN (DC 12-30 V)
Battery Mount Power Port (female)
4D Expansion Plate Data Port (female)
High-Bright Main Monitor Port
Hand Grips Port x 2
Top Handle Port
HDMI Type-A Video Output Port
- X9 Gimbal
- LiDAR Range Finder/ Focus Motor Port x 2
- TB50 Battery Mount
- Battery Mount Power Port (male)
TB50 Battery Port
4D Video Transmitter
- 4D Video Transmitter Port
- 4D Expansion Plate Data Port (male)
SMA Antenna Connector x 4
USB 3.1 Type-C Data Port
Battery Mount Power Port (female)
Battery Mount Power Port (male)
- Dimensions
- 3.5 x 0.82 x 5.3" (89 x 21 x 137mm)
Remote Monitor
- Screen Size
- 7" (17.78cm) inches (diagonal)
- Max Brightness
- 1500 cd/sq. m
- Screen Resolution
- 1920 x 1200
- Refresh Rate
- 60 Hz
- Max Battery Life
- Approx. 2 hours
- Operating Temperature
- 32 Degree to 104 Degree F (0 Degree to 40 Degree C)
- Storage Temperature
- -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
- Power System
- DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)
- Remote Monitor Port
- 3.5mm Stereo Jack
microSD Card Slot
HDMI Type-A Video Input Port
Remote Monitor Expansion Plate High-Speed Port (female)
Remote Monitor Accessory Expansion Port
USB 3.1 Type-C Data Port
- Remote Monitor Expansion Port
- Remote Monitor Expansion High-Speed Port (male)
HDMI 1.4 Type-A Video Output Port
6-pin 1B DC-IN (DC 6.8-17.6 V)
3G-SDI (Level A) BNC Video Output Port
- Dimensions
- 8.5 x 2.2 x 6.5" (216 x 58 x 166mm) (includes monitor cage)
Battery
- Battery
- TB50 Intelligent Battery
- Capacity
- 4280 mAh
- Energy
- 97.58 Wh
- Voltage
- 22.8 V
- Max Charging Voltage
- 26.1 V
- Max Charging Power
- 180 W
- Charging Temperature Range
- 41 Degree to 104 Degree F (5 Degree to 40 Degree C)
- Charging Time
- Approx. 1.5 hours (with standard 86W power adapter)
- Battery Info
- Required, included
- Battery Material
- Lithium ion
- Battery Type
- Non-universal
- Battery Quantity
- 1
Physical
- Dimensions (L x W x H)
- Main Body: 9.2 x 4.5 x 6.3" (2351560mm)
Overall: 12 x 11.4 x 10.9" (309 x 290 x 277mm)
- Weight
- Gimbal: 2.3 lbs (1.04kg) (Approx.)
Main Body: 3.2 lbs (1.45kg)
Overall: 10.3 lbs (4.67kg) (Approx.) (after installing all modules in the combo, excluding lens and storage card)
KEY FEATURES
- Zenmuse X9-6K Camera Gimbal Combo
- Z-Axis Camera/3-Axis Gimbal Stabilizing
- ProRes 422 HQ Video up to 6K60
- Right Focus/Control, Left Pan/Tilt Grips
- 5.5" 1000 cd/m² Touchscreen Display
- LiDAR Range Finder/Focus Module
- TB50 Intelligent Battery, Mount, Charger
- Carbon Fiber, Aluminum Magnesium Alloy
- Cables, Tools & Carrying Case
BOX CONTENTS
- DJI Ronin 4D 4-Axis Cinema Camera 6K Combo Kit
- Zenmuse X9-6K Gimbal Camera
- DL Mount
- DL Mount Body Cap
- DL Mount Lens Cap
- X9 Gimbal Base Cap
- Ronin 4D Gimbal Base Cap
- Main Body with Integrated 5.5" Monitor
- 2 x Handgrip
- Handgrip Extended Control Stick
- Top Handle
- TB50 Battery Mount
- TB50 Intelligent Battery
- 2 x Handgrip Strap
- Power Adapter
- 8 x AC Power Cable
- TB50 Charging Adapter
- Baseplate
- LiDAR Range Finder/Focus Motor Cable
- USB Type-A to Type-C Cable
- Ronin 4D Carrying Case
- Ball-End Allen Key (3mm)
- 6 x 1/4"-20 Screw (10mm)
- LiDAR Range Finder
- LiDAR Range Finder Holder
- Counterweight
- C-Shaped DL Mount Ring
- 2 x M2-3 Screw (3mm)
- Ball-End Allen Key (1.5mm)
