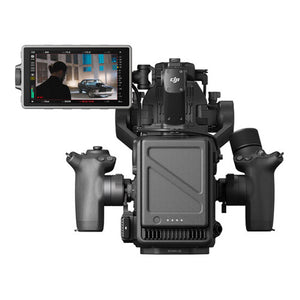

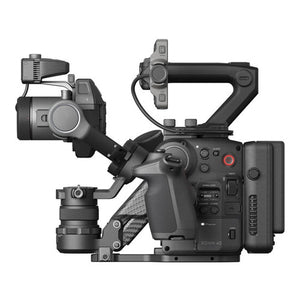

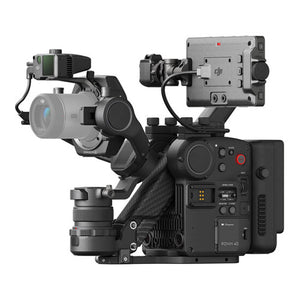

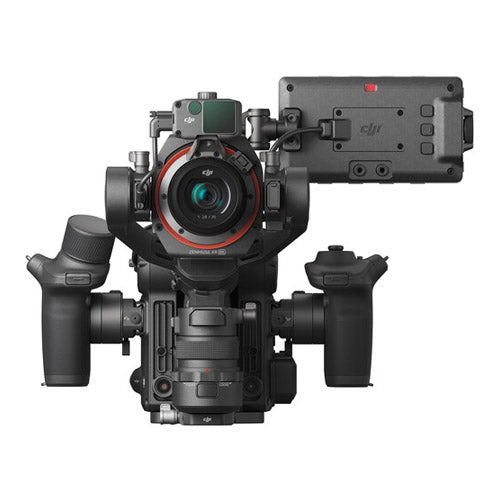

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit

SKU: CP.RN.00000177.01

Availability:In stock

DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
EMI Options
₹1,189,999
MRP: ₹1,350,000
GST Included

Or

EMI starts at

EMI Plans

Available offers

  • Get GST Invoice and Save Upto 18% as Input Tax Credit on Business Purchase
View more offers
  • Get GST Invoice and Save Upto 18% as Input Tax Credit on Business Purchase
View more offers

Delivery

Pickup In-store

  • Warranty: 1 Year Warranty
  • Brand: DJI
  • Product Type: Cine Camera
  • GTIN: 190021047792

DESCRIPTION

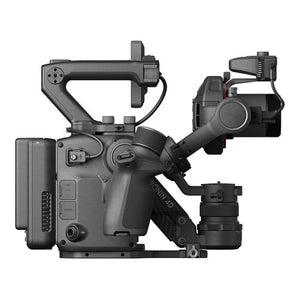

The Ronin 4D from DJI is a cutting-edge all-in-one camera/gimbal solution that is intended for use by independent creators working alone as well as dynamic professional video capture. The "4D" designation refers to the three-axis gimbal stabilization as well as the Z-axis (vertical) stabilization built into the X9-8K camera. This system is perfect for independent content creators, indie filmmakers, and event videographers because it is made of lightweight carbon fiber and an aluminum/magnesium alloy. The 4D is well suited for use as a "B" or second unit camera for larger cine-style productions thanks to its full-frame capture at rates up to 8K30 in ProRes HQ and Ronin's CineCore 3.0 image processing system with ACES workflow support.

The main Zenmuse X9-8K full-frame video camera is included in this package, along with a 3-axis gimbal and a variety of modular monitor, focusing, and control elements. A DL lens mount, a LiDAR rangefinder, a ProSSD 1TB drive, a TB50 battery, a charging hub, and left and right control handgrips are among the kit's included items.

Note: A wireless video transmitter is not included in this combo kit.

All-in-One Camera Gimbal System

  • his innovative camera gimbal combines imaging, stabilization, and focusing in one lightweight, carbon fiber and aluminum/magnesium alloy rig
  • Combination design reduces your setup time at the start of the day and in between setups and locations
  • Included modular components:
    • Left and right control handgrips
    • ProSSD 1TB media drive
    • LiDAR range finder

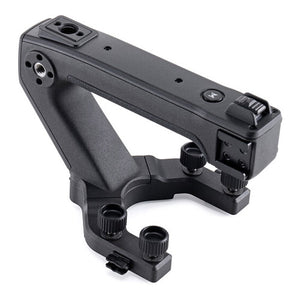

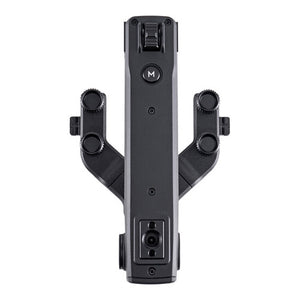

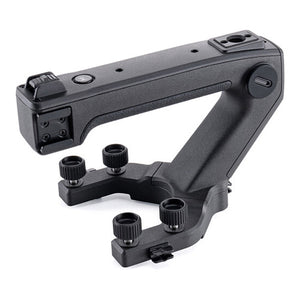

    • Top Handle
    • Baseplate
  • Separately available components:
    • 7" high-bright, touchscreen monitor
    • Wireless video transmitter
    • X9 focus motor
    • Leica M lens mount
    • 3-channel FIZ lens control unit

Firmware Update at Launch

  • Internal Apple ProRes Raw will not be supported as initially planned
  • A Mirror Control Mode will enable the High-Bright Remote Monitor to view and control the main camera monitor
  • The Remote Monitor Expansion Plate will now offer a clean video output for viewing by the director/video village
  • Select third-party lenses will be supported by the LiDAR focus system
  • Apple ProRes 4444 XQ will be available via a firmware update later in 2022

CineCore 3.0 Imaging Processing System

  • The Zenmuse X9, DJI's full-frame camera, uses a proprietary chip for advanced processing and high-performance computing
  • The Ronin 4D uses the CineCore 3.0 system to support internal recording of ProRes 422 HQ and H.264 video
  • Industry-standard ACES workflow support provide easy compatibility with other cinema cameras

Advanced 4-Axis Stabilization

  • Selectable Z-axis stabilization reduces unwanted vertical camera movement, especially during dollying moves
  • Z-axis stabilization built into the camera, 3-axis stabilization in the gimbal
  • Tilt stabilization uses dual, symmetrical motors
  • Pan and X (roll) axes with additional stiffness buffering
  • Downward ToF (time of flight) sensor
  • Forward and downward-facing dual-vision sensors
  • Built-in IMU (inertial measurement unit) and barometer
  • New and improved stabilization algorithm

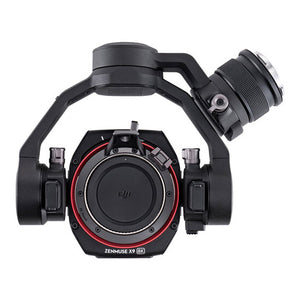

Zenmuse X9-8K Camera with DL Lens Mount

  • The D4's DL lens mount supports DJI's current selection of lightweight, carbon fiber 16, 24, 35, and 50mm lenses
  • Full-frame capture with all but the 16mm DL lens
  • Interchangeable lens mounts available for use with Sony E-mount or Leica M-mount lenses
  • Supports ultra-wide, f/0.95 large-aperture, electronic zoom, macro, and anamorphic cine lenses

ProRes 422 HQ and H.264 Capture

  • Capture up to 8K30 ProRes 422 HQ video in 17:9 full frame
  • Capture up to DCI 4K60 ProRes 422 HQ or H.264 in 17:9 full-frame or Super35

Dual Native ISO

  • 800/5000 dual native ISO
  • EI 200 to 12800
  • 14+ stops of dynamic range produce nuanced imaging under a range of lighting conditions

In-Camera ND Filters

  • Built-in ND.03 to ND2.7 filters let you easily adjust to quickly changing lighting conditions
  • Especially handy for outdoor shoots with changing cloud cover
  • Motorized filter system
  • Carry in "built" mode for easy company moves

LiDAR Focus Control

  • LiDAR (light detection and ranging) system uses up to 43,200 ranging points within a 33' range
  • Excellent focusing performance even in low-light environments
  • Focus pulling can be viewed graphically, thanks to a built-in depth meter
  • Intuitive and highly accurate focusing system
  • Modular LiDAR focusing module attached to the front of the D4 rig

Autofocus Features

  • Maintains focus, even when motion blur is produced by fast-moving subjects
  • Separately available focus motor for use with manual lenses
  • Continuous autofocus is compatible with ActiveTrack Pro, a boon for solo operators

Automated Manual Focus

  • The AMF function (Automated Manual Focus) combines the accuracy of manual focus with the ease of autofocus
  • Operators can grab the focus wheel of the right handgrip at any time to manually focus
  • Handgrip focus wheel uses dynamic damping to provide a physical feel for focus changes

ActiveTrack Pro

  • DJI's ActiveTrack Pro features combine continuous autofocusing with composition adjustment for professional-looking tracking shots out of the gate
  • ActiveTrack Pro is based on computer vision, deep learning technology, and the computing power of DJI's CineCore 3.0 imaging system

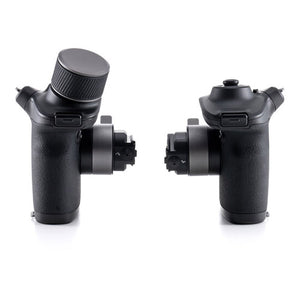

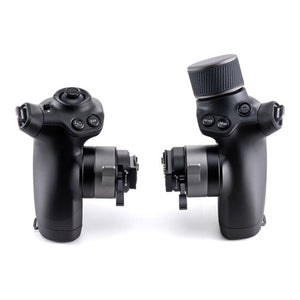

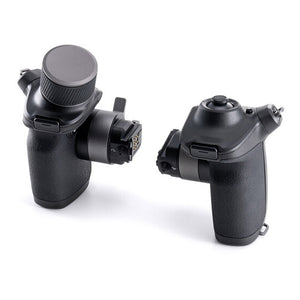

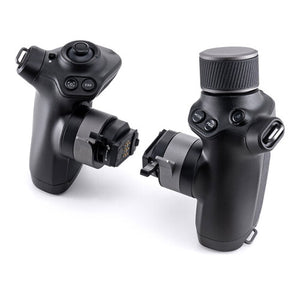

Dual Focus, Iris, and Control Grips

  • Right-hand grip has a focus wheel that doubles as a control for main camera adjustments (menus, exposure, etc.)
  • Left-hand grip has a full-range joystick to control pan/tilt; useful when adjusting headroom and more during follow mode

Single User or Crew-Assisted Operation

  • Top-notch stabilization in a lightweight form
  • Ideal for both solo operators as well as assistant-accompanied shoots
  • Designed to counter footsteps from inexperienced gimbal shooters
  • Works equally well with a single grip, dual grips, shoulder supported, or tripod-mounted
  • Sport mode is available with the touch of a button, accommodating faster-paced action
  • Use in standard, underslung, jib, and crane setups

Media Storage Options

  • Requires a ProSSD 1TB drive (included) to capture raw footage
    • USB Type-C port for external recording; no reader needed to offload footage
  • Integrated CFexpress Type-B card slot

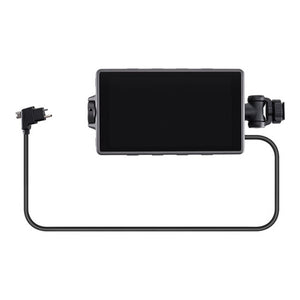

Built-In 5.5" Touchscreen Monitor

  • 5.5" 1920 x 1080 monitor
  • 1000 cd/m² display
  • Touchscreen control

Audio Recording

  • Integrated stereo microphones capture dual-channel 24-bit audio
  • Built-in 3.5mm audio input port and XLR port via expander plate

Power Options

  • Uses the same TB50 intelligent batteries as the Ronin 2 and Inspire 2
  • Each battery provides up to 2.5 hours of capture time
  • Batteries charge fully in approximately 1.5 hours
  • Support auto-heating for cold weather use
  • AC adapter for uninterrupted shooting

SPECIFICATIONS

Included Items

Additional Included Items
3x 10mm 1/4"-20 Screw
Flat Head Screwdriver
DL Mount Body Cap
X9 Gimbal Base Cap
DX Mount Body Cap
DX Mount Lens Cap
Ronin 4D Gimbal Base Cap
TB50 Intelligent Battery
LiDAR Range Finder/Focus Motor Cable
Left Hand Grip Strap
Right Hand Grip Strap
Ronin 4D Carrying Case
X9 Counterweight (106g)

General

Max Operating Time
Approx. 150 minutes
Intelligent Features
ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject)
Storage Temperature
-4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
Operating Temperature
14 Degree to 104 Degree F (-10 Degree to 40 Degree C)

Camera

Sensor Size
35mm full-frame CMOS image sensor
Base Lens Mount
DX Mount, and support for other mount units
Supported Lens Mounts
DL Mount (standard), M Mount, and E Mount
DL Lens
DJI DL 24mm F2.8 LS ASPH
DJI DL 35mm F2.8 LS ASPH
DJI DL 50mm F2.8 LS ASPH
Dynamic Range
14+ stops
White Balance
Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB
Gamma
D-Log, Rec.709, HLG
EI Range
X9-8K: EI 200-12800, Dual Native ISO 800/4000
Shutter Speed
Electronic Rolling Shutter 1/24s-1/8000s
ND
Built-in 9-stop ND filters: Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7)
Focus Control
Autofocus, Manual Focus, Automated Manual Focus
Supported File System
exFAT
Recording Format
Apple ProRes RAW HQ/Apple ProRes RAW
Apple ProRes 422 HQ/Apple ProRes 422
H.264 (4:2:0 10-bit)
Storage Media
DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD
DJI PROSSD 1TB Recording Format
No restriction on recording format
CFexpress 2.0 Type B Recording Format
ProRes 422 HQ:
6K: 23.976/24/25/29.97/30fps
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60/72/96/100/120fps
USB-C SSD Recording Format
ProRes 422 HQ:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps

H.264:
C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps
2K: 23.976/24/25/29.97/30/48/50/59.94/60fps
Built-in Mic
Built-in 2-ch stereo
Audio Format
LPCM 2-ch, 24-bit 48kHz

Gimbal

Mechanical Range
Pan: +/-330 Degree
Tilt: -75 Degree to 175 Degree
Roll: -90 Degree to 230 Degree
Z-Axis Range: approx 130mm
Controllable Range
Pan: +/-285 Degree
Tilt: -55 Degree to +155 Degree
Roll: +/-35 Degree
Max Control Speed
DJI Master Wheels or DJI Force Pro:
Tilt: 360 Degree /s
Roll: 360 Degree /s
Pan: 360 Degree /s

Ronin 4D Hand Grips:
Tilt: 120 Degree /s
Roll: 120 Degree /s
Pan: 120 Degree /s
Maximum Z-Axis Payload
4.4 lbs (2kg) (including 2.3 lbs (1.04kg) gimbal)
Angular Vibration Range
+/-0.01 Degree

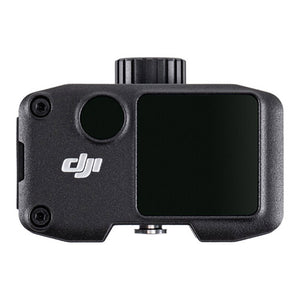

LiDAR Range Finder

Operating Temperature
14 Degree to 104 Degree F (-10 Degree to 40 Degree C)
LiDAR Range Measurement Precision
0.3-1m ( +/-1%)
1-10m ( +/-1.5%¼
FOV
30cm to 3m @>18% reflectivity 60 Degree (horizontal) x 45 Degree (vertical)
30cm to 10m @>18% reflectivity 60 Degree (horizontal) x 7 Degree (vertical)
Safety Rating
Class 1 (IEC 60825-1:2014) (safe for human eyes)
Operating Environment
Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.)
DO NOT use in environments with dense fog or aim it at or through glass surfaces.
Laser Wavelength
940 nm
Single Pulse Width
Two kinds of pulses emit in circulation: 5ns and 33.4ns.
Max Laser Power
6 W
Dimensions (L x W x H)
2.7 x 1.8 x 1.3" (71 x 47 x 34mm)
Weight
3 oz (88g)

Main Monitor

Screen Size
5.5" (13.9cm) (diagonal)
Resolution
1920080
Refresh Rate
60 Hz
Max Brightness
1000 cd/sq. m
Screen
Rotational LCD touchscreen

O3 Pro Video Transmission

Max Transmission Distance
20,000' (approx. 6km, FCC-compliant)
Max Transmission Resolution & Frame Rate
1920080 @60fps
Minimum End-to-End Latency
100 ms or 68 ms
Wireless Frequency
Non DFS frequency band:
2.400-2.483 GHz
5.150-5.250 GHz
5.725-5.850 GHz

DFS Frequency Band:
5.250-5.350 GHz
5.470-5.600 GHz
5.650-5.725 GHz
Transmitter Power (EIRP)
2.400-2.4835 GHz: <=33 dBm (FCC); <=20 dBm (SRRC/CE/MIC)
5.150-5.250 GHz: <23 dBm (FCC/SRRC/MIC)
5.250-5.350 GHz: <30 dBm (FCC); <23 dBm (SRRC/MIC)
5.470-5.600 GHz, 5.650-5.725 GHz: <30 dBm (FCC);<23 dBm (CE/MIC)
5.725-5.850 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
Max Bandwidth
40 MHz
Max Bitrate
50 Mbps

Interface

Main Body
3.5mm TRS Stereo Input Jack (supports mic, plug-in power mic, and line inputs)
3.5mm Stereo Output Jack
USB3.1 Type-C Data Port
6-pin 1B DC-IN (DC 12-30 V)
Battery Mount Power Port (female)
4D Expansion Plate Data Port (female)
High-Bright Main Monitor Port
Hand Grips Port x 2
Top Handle Port
HDMI Type-A Video Output Port
X9 Gimbal
LiDAR Range Finder/ Focus Motor Port x 2
TB50 Battery Mount
Battery Mount Power Port (male)
TB50 Battery Port

4D Video Transmitter

4D Video Transmitter Port
4D Expansion Plate Data Port (male)
SMA Antenna Connector x 4
USB 3.1 Type-C Data Port
Battery Mount Power Port (female)
Battery Mount Power Port (male)
Dimensions
3.5 x 0.82 x 5.3" (89 x 21 x 137mm)

Remote Monitor

Screen Size
7" (17.78cm) inches (diagonal)
Max Brightness
1500 cd/sq. m
Screen Resolution
1920 x 1200
Refresh Rate
60 Hz
Max Battery Life
Approx. 2 hours
Operating Temperature
32 Degree to 104 Degree F (0 Degree to 40 Degree C)
Storage Temperature
-4 Degree to 140 Degree F (-20 Degree to 60 Degree C)
Power System
DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter)
Remote Monitor Port
3.5mm Stereo Jack
microSD Card Slot
HDMI Type-A Video Input Port
Remote Monitor Expansion Plate High-Speed Port (female)
Remote Monitor Accessory Expansion Port
USB 3.1 Type-C Data Port
Remote Monitor Expansion Port
Remote Monitor Expansion High-Speed Port (male)
HDMI 1.4 Type-A Video Output Port
6-pin 1B DC-IN (DC 6.8-17.6 V)
3G-SDI (Level A) BNC Video Output Port
Dimensions
8.5 x 2.2 x 6.5" (216 x 58 x 166mm) (includes monitor cage)

Battery

Battery
TB50 Intelligent Battery
Capacity
4280 mAh
Energy
97.58 Wh
Voltage
22.8 V
Max Charging Voltage
26.1 V
Max Charging Power
180 W
Charging Temperature Range
41 Degree to 104 Degree F (5 Degree to 40 Degree C)
Charging Time
Approx. 1.5 hours (with standard 86W power adapter)
Battery Info
Required, included
Battery Material
Lithium ion
Battery Type
Non-universal
Battery Quantity
1

Physical

Dimensions (L x W x H)
Main Body: 9.2 x 4.5 x 6.3" (2351560mm)
Overall: 12 x 11.4 x 10.9" (309 x 290 x 277mm)
Weight
Gimbal: 2.3 lbs (1.04kg) (Approx.)
Main Body: 3.2 lbs (1.45kg)
Overall: 10.3 lbs (4.67kg) (Approx.) (after installing all modules in the combo, excluding lens and storage card)

KEY FEATURES

  • Zenmuse X9-8K Camera Gimbal Combo
  • Z-Axis Camera/3-Axis Gimbal Stabilizing
  • ProRes 422 HQ Video up to 8K30
  • Right Focus/Control, Left Pan/Tilt Grips
  • 5.5" 1000 cd/m² Touchscreen Display
  • LiDAR Range Finder/Focus Module
  • 1 x ProSSD 1TB Media Card
  • TB50 Intelligent Battery, Mount, Charger
  • Carbon Fiber, Aluminum Magnesium Alloy
  • Cables, Tools & Carrying Case

BOX CONTENTS

  • DJI Ronin 4D 4-Axis Cinema Camera 8K Combo Kit
  • Zenmuse X9-8K Gimbal Camera
  • DL Mount
  • DL Mount Body Cap
  • DL Mount Lens Cap
  • X9 Gimbal Base Cap
  • Ronin 4D Gimbal Base Cap
  • Main Body
  • 2 x Handgrip
  • Handgrip Extended Control Stick
  • Top Handle
  • High-Bright Main Monitor
  • TB50 Battery Mount
  • TB50 Intelligent Battery
  • 2 x Handgrip Strap
  • Power Adapter
  • 8 x AC Power Cable
  • TB50 Charging Adapter
  • Baseplate
  • LiDAR Range Finder/Focus Motor Cable
  • USB Type-A to Type-C Cable
  • Ronin 4D Carrying Case
  • Ball-End Allen Key (3mm)
  • 6 x 1/4"-20 Screw (10mm)
  • LiDAR Range Finder
  • LiDAR Range Finder Holder
  • Counterweight
  • C-Shaped DL Mount Ring
  • 2 x M2-3 Screw (3mm)
  • Ball-End Allen Key (1.5mm)

RELATED PRODUCTS

BACK TO TOP
