DJI RS 3 Gimbal Stabilizer

Rs. 43,500.00 Rs. 56,990.00
Inclusive of all taxes.

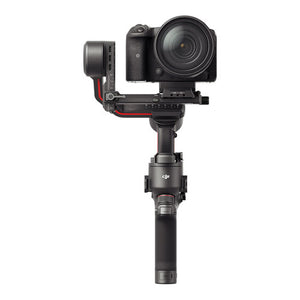

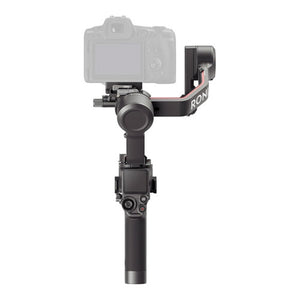

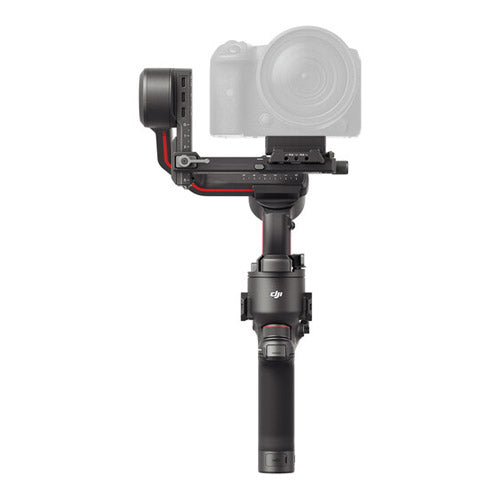

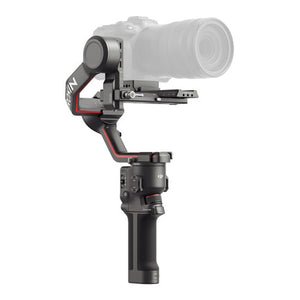

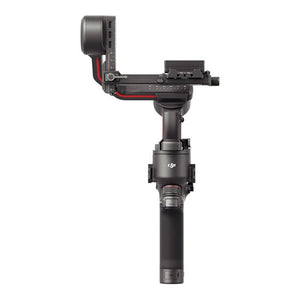

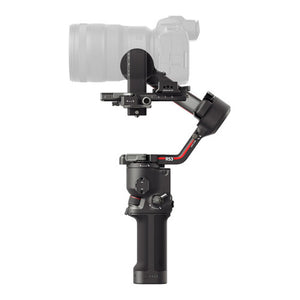

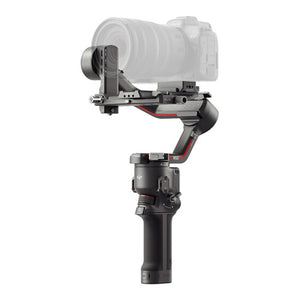

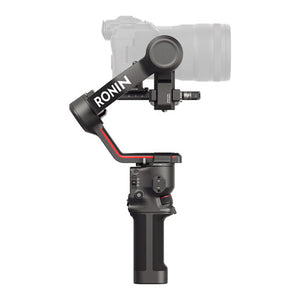

The DJI RS 3 Gimbal Stabilizer has been redesigned to be even lighter and sleeker than the Ronin RSC 2 gimbal at only 2.8 lb with a payload of up to 6.6 lb. This tiny gimbal is tough enough to support and stabilize a Sony a7S III or Canon R5 with a 24-70mm zoom lens attached. With a larger full-color OLED display, a new fine-tuning knob, and greater stability, the RS 3 can become an essential part of your compact camera kit.

Quick Release Plates

With dual-layered quick release plates, mounting a camera onto RS 3 is fast and convenient. There is no need to rebalance the gimbal after swapping out a new battery or memory card.

Automated Axis Locks

When the gimbal is powered off, you can press and hold the power button, and the three axes unlock while the gimbal expands automatically, allowing you to start working in just two seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making a move or storage significantly more efficient.

Wireless Shutter Control

By implementing Dual-Mode Bluetooth, the RS 3 supports wireless shutter control, saving time and effort with every use. After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabilizer. Previously paired cameras can automatically reconnect after the first use, eliminating the need for a camera control cable.

Integrated Controls

  • With a newly added fine-tuning knob on the tilt axis, the camera can slide forward or backward with millimeter-grade precision adjustments to achieve accurate balancing more easily when changing the lens.
  • By simply sliding the new gimbal mode switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started as fast as possible.
  • Rotating the front dial allows you to control zoom or focus. It can also be customized to control the camera's shutter, aperture, ISO, or gimbal movements, making it exceptionally convenient for single-handed operation.

Third-Gen RS Stabilization Algorithm

Empowered by a next-generation stabilization algorithm, the RS 3 provides 20% enhanced stability over the RSC 2, effortlessly managing low-angle shots, running scenarios, or switching between high and low positions.

Get SuperSmooth Results

When SuperSmooth mode is enabled, RS 3 increases motor torque to further enhance stabilization, delivering stable footage even in fast-moving scenarios or with 100mm-equivalent focal lenses.

1.8" OLED Touchscreen

Compared with the black-and-white screen of RSC 2, RS 3 is equipped with a 1.8" OLED full-color touchscreen with an 80% larger display. It also supports most Ronin app settings, providing intuitive and precise control together with the redesigned user interface.

Monitoring on Smartphone

RS 3 supports the Ronin Image Transmitter (previously known as the Ronin RavenEye Image Transmitter) to transmit 1080p30 HD live feeds directly to a mobile device. The maximum transmission distance is 656 feet, and the end-to-end transmission latency is as low as 60 ms. A smartphone can also be attached to the NATO port on the RS 3 with the phone holder for wireless monitoring.

Integrated Monitoring and Control

Remotely adjust camera exposure directly in the Ronin app, or control the gimbal with the virtual joystick to get an integrated monitoring and control experience. With the Ronin Image Transmitter, a smartphone can be used as a motion controller to remotely control the RS 3 gimbal for more flexible and dynamic camera movements.

Enhanced Battery and Fast Charging

The new RS 3 battery grip features a cartridge design, making it easier to swap batteries and smaller for storage compared with RSC 2. It can even be charged separately from the gimbal. The new battery grip provides an extended runtime of up to 12 hours, enough for continuous shooting all day. It supports 18W PD fast charging with a charge time of just 2.5 hours. It can even be used while charging to keep RS 3 powered almost indefinitely.

Intelligent Functions

The camera retains all the intelligent motion functions such as Dolly Zoom, Motionlapse, Track, Time Tunnel, and Panorama.

Peripheral

Accessory Port
NATO Ports
1/4"-20 Mounting Hole
Cold Shoe
Video Transmission/Focus Motor Port (USB-C)
RSS Camera Control Port (USB-C)
Focus Motor Port (USB-C)

Battery
Model: BHX711
Type: 2S
Capacity: 3000 mAh
Energy: 21 Wh
Max. Runtime: 12 hours
Charging Time: Approx. 2.5 hours when using 18W quick charging (supports PD protocol)
Suggested Charging Temperature: 41 Degree to 104 Degree F (5 Degree to 40 Degree C)

Connections
Bluetooth 5.0
Charging Port (USB-C)

Ronin App Requirements
iOS 11.0 or above
Android 7.0 or above

Languages Supported by the Touchscreen
English, Simplified Chinese, Traditional Chinese, German, French, Korean, Japanese, Spanish, Portuguese (Brazil), Russian, Thai

Working Performance

Tested Payload
6.6 lbs (3kg)

Maximum Controlled Rotation Speed
Pan: 360 Degree/s
Tilt: 360 Degree/s
Roll: 360 Degree/s

Mechanical Range
Pan axis: 360 Degree continuous rotation
Roll axis: -95 Degree to +240 Degree
Tilt axis: -112 Degree to +214 Degree

Mechanical & Electrical Properties

Operating Frequency
2.400-2.484 GHz

Bluetooth Transmitter Power
<8 dBm

Operating Temperature
-4 Degree to 113 Degree F (-20 Degree to 45 Degree C)

Battery

Battery Info
Required, included

Battery Material
Lithium ion

Battery Type
Non-universal

Battery Quantity
1

Physical

Dimensions (L x W x H)
Folded: 10 x 9.05 x 2.67" (254 x 230 x 68mm) (Excluding camera, grip, and the Extended Grip/Tripod)
Unfolded: 14.33 x 7.36 x 6.69" (364 x 187 x 170mm) (Height includes the grip and excludes the Extended Grip/Tripod)

Weight
Approx. 2.18 lbs (990g)
Grip: Approx. 7.04 oz (200g)
Extended Grip/Tripod (Plastic): Approx. 6.4 oz (183g)
Upper and Lower Quick-Release Plates: Approx. 3.68 oz (107g



• Lightweight Design with 6.6 lb Payload
• Supports Sony a7S III/Canon R5 Cameras
• Advanced 1.8" OLED Touchscreen
• Instant Mode Switching
• Supports Wireless Image Transmitter
• Motion Control with Smartphone
• 12-Hour Operation Time, PD Fast Charging
• Fine-Tuning Knob on Tilt Axis
• Creative Functions Such as Time Tunnel

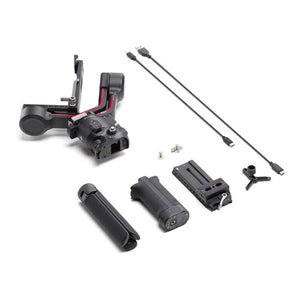

• DJI RS 3 Gimbal Stabilizer
• DJI BG21 Grip for RS 3 Gimbal
• USB Type-C Charging Cable (15.7")
• Lens Support
• Extended Grip/Tripod
• Quick Release Plate (Arca-Type/Manfrotto)
• USB Type-C Multi-Control Cable (11.8")
• Screw Kit
• Limited 1-Year Warranty on Gimbal
• Limited 6-Month Warranty on Motors
