DESCRIPTION

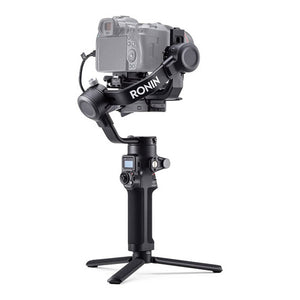

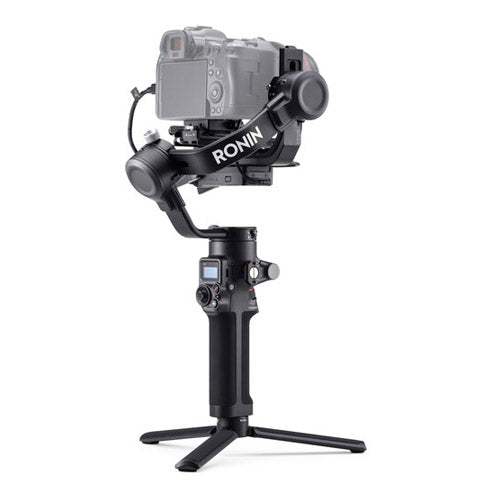

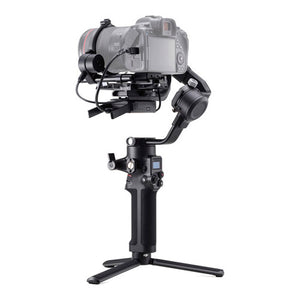

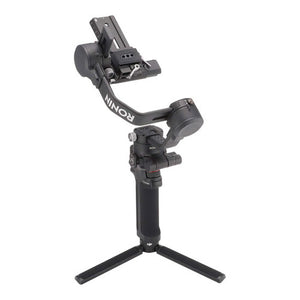

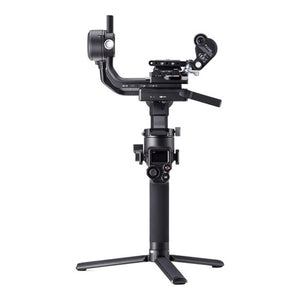

The DJI RSC 2 Pro Combo includes more accessories in addition to the RSC 2 gimbal, enabling a more thorough workflow. The DJI Ronin RavenEye Image Transmission System is a significant upgrade that enables 330' of 1080p video transmission from the gimbal with a latency of just 50ms for on-set collaboration. A focus motor, phone holder, two focus gears, and three HDMI cables are among the additional extras included with the RavenEye. A carry case and a small metal tripod are also included.
The Ronin-SC, this redesigned gimbal's predecessor, had motors that were only 25% as powerful as those of the RSC 2. The RSC 2's foldable design, which enables conversion to underslung mode, is a key feature. The DJI RSC 2 is made for mirrorless and DSLR cameras, and it can handle loads of up to 6.6 pounds of camera gear.
Without having to attach or remove anything, you can flip the gimbal around and use it underslung for low-angle shots because the gimbal head folds down from the gimbal handle. The integrated gimbal handle still has built-in batteries that can last up to 14 hours. Additionally, the batteries can be charged while the gimbal is in use by using the handle (barring extremely cold or extremely hot temperatures). The handle can be recharged in about two hours using an 18W fast charger, which is not included. It supports PD and QC 2.0 fast-charging protocols. The gimbal's foldable design makes it simpler to transport and store.
The RSC 2 has a 1" OLED black-and-white screen as well as a horizontal dial on the front for adjusting focus while holding the gimbal in the same hand. An M4 NATO mount for specialized accessories, such as an optional briefcase handle, is located on each side of the gimbal handle.
The DJI Titan stabilization algorithm, an upgrade over the prior one that offers better stabilization and fluidity, is used by the RSC 2. When using zoom lenses up to 100mm, a built-in feature called SuperSmooth complements the algorithm. To achieve smooth motion with long lenses, SuperSmooth increases torque and accounts for micromovements.
A dual-layer Manfrotto plus Arca-Swiss camera mounting system with two detachable quick release plates is included with the gimbal. By pressing a button, you can put your camera into portrait mode for social media content. A companion iOS/Android app that is included with the RSC 2 gives you access to features like time-lapse, panorama, and Roll 360, which continuously rotates your camera along the roll axis. The RSC 2 supports a total of six different configurations. You can also access the ActiveTrack 3.0 feature for subject tracking from the gimbal and the improved Force Mobile function, which improves responsiveness and reduces latency while offering a live view, with the included RavenEye transmission system.
For certain shots, the included metal mini tripod can be used as a stand or extension handle by screwing it onto a 1/4"-20 thread on the bottom of the RSC 2 grip handle. Additionally, cables are provided for controlling specific cameras and camera functions directly from the gimbal controls.
Note:
DJI recommends using only the dedicated Ronin quick release plates for mounting a camera and an 18W USB charger for fast charging of the built-in battery.
Features
- RSC 2 gimbal with the RavenEye 1080p transmitter, a focus motor, phone holder, two focus gears, and three HDMI cables
- Designed for mirrorless and DSLR cameras
- 6.6 lb payload for camera and accessories
- Foldable into underslung mode
- 1" OLED black-and-white display
- DJI Titan stabilization algorithm
- SuperSmooth stabilization feature for long zoom lenses
- Two NATO mounts for dedicated accessories such as a briefcase handle
- Integrated grip handle with built-in 14-hour batteries
- iOS 11+/Android 7.0+ companion app
- Time-lapse, panorama, Roll 360, and other creative functions
- Dual-layer Manfrotto plus Arca-Swiss camera mounting system
- Single-tap switching to portrait mode
SPECIFICATIONS
- Grip Design
- Single Handgrip (Slanted)
- Load Capacity
- 6.6 lb / 3 kg
- Number of Axes
- 3: Pitch (Tilt), Roll, Yaw (Pan)
- Wireless Frequency
- 2.4 GHz (2.4 - 2.483)
- Wireless Protocol
- Bluetooth 5.0
- Mounting
-
1 x 1/4"-20 Female
1 x Cold Shoe Mount
2 x NATO Rail
4 x M4 Female
- Weight
-
2.681 lb / 1.216 kg (without Battery)
2.906 lb / 1.318 kg (with Camera Plate)
- Gimbal
-
Load Capacity: 6.6 lb / 3 kg
Number of Axes: 3: Pitch (Tilt), Roll, Yaw (Pan)
Rotation Range:
- Yaw (Pan): 360°
- Pitch (Tilt): 335° (-240 to 95°)
- Roll: 326° (-112 to 214°)
Follow Speed:
- Pan: 360°/s
- Tilt: 360°/s
- Roll: 360°/s
- Compatibility
- Camera Control: On Compatible Models (See Full Compatibility List)
- Connectivity
-
Inputs/Outputs: 3x USB-C
Wireless Frequency: 2.4 GHz (2.4 - 2.483)
Wireless Protocol: Bluetooth 5.0
- Battery
-
Battery Type: 2x 18650
Battery Capacity: 3400 mAh / 24.48 Wh
Battery Runtime: 14 Hours
Battery Charging Time: 2 Hours
- Environmental
- Operating Temperature: -4 to 113°F / -20 to 45°C
- General
-
Display Type: Fixed OLED
Materials: Aluminum
Mounting:
- 1 x 1/4"-20 Female
- 1 x Cold Shoe Mount
- 2 x NATO Rail
- 4 x M4 Female
Dimensions:
- 15.7 x 7.3 x 6.9" / 40 x 18.5 x 17.5 cm
- 10.2 x 8.3 x 3" / 26 x 21 x 7.5 cm (Folded)
Weight:
- 2.681 lb / 1.216 kg (without Battery)
- 2.906 lb / 1.318 kg (with Camera Plate)
- Packaging Info
-
Package Weight: 7.57 lb
Box Dimensions (LxWxH): 13.3 x 10.9 x 6.6"
KEY FEATURES
- RSC 2 + 1080p Transmitter, Servo & More
- Designed for Mirrorless & DSLR Cameras
- 6.6 lb Payload for Camera & Accessories
- Foldable into Underslung Mode
- 1" OLED Screen; 2 x NATO Mounts
- DJI Titan Stabilization Algorithm
- Built-In Focus Dial
- SuperSmooth Feature for Long Lenses
- Standard & Portrait Modes
- Creative Functions Such as Roll 360

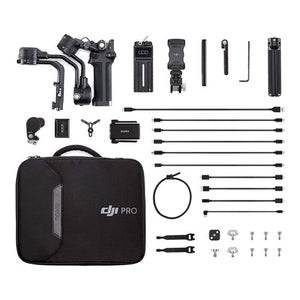

BOX CONTENTS
- DJI RSC 2 Gimbal Stabilizer Pro Combo
- DJI Ronin-S Extended Grip/Tripod
- DJI Ronin RavenEye Image Transmission System
- DJI Ronin Focus Motor
- DJI R Phone Holder
- DJI Ronin-S Focus Gear Strips (2-Pack)
- DJI R Mini-HDMI to HDMI Cable (7.9")
- DJI R Mini-HDMI to Mini-HDMI Cable (7.9")
- DJI R Mini-HDMI to Micro-HDMI Cable (7.9")
- Carry Case
- DJI R Multicamera Control Cable (USB Type-C)
- DJI R Multicamera Control Cable (Sony Multi)
- DJI R Multicamera Control Cable (Micro-USB)
- DJI R Multicamera Control Cable (Mini-USB)
- DJI R Quick Release Plate (Lower)
- DJI R Quick Release Plate (Upper)
