DESCRIPTION
AI Enabled Webcam
The Link UHD 4K AI Webcam from Insta360 uses AI technology to capture high-definition UHD 4K video at 30 frames per second in various modes. The audience will be able to see your Zoom work presentation or virtual lesson thanks to a 1/2" sensor equipped with autofocus and auto exposure tools. This webcam has PTZ-like movements thanks to AI tracking and controls, a 3-axis gimbal, and a 4x zoom.
AI Tracking and Gimbal Design
The Link's 3-axis gimbal design and embedded AI tracking facilitates automatic zooming, framing, and lens rotation to follow your every movement.
HDR mode is supported in 1080p and 720p resolutions, balancing the highlights and shadows in your image and ensuring the background isn't blown out.
True focus with Phase Detection Auto Focus (PDAF) and auto exposure technology adjust faster for an optimized image.
Intuitive, Gesture Controlled Modes
You can manage calls, zoom, and toggle modes using gesture controls. Simply extend your palm in front of the camera to activate AI tracking, form an 'L' to activate zoom, or raise your hand in the peace sign to activate Whiteboard Mode.
Whiteboard Mode: focuses and squares off whiteboard to give the audience a clearer view during presentations
- DeskView Mode: mount the camera to the computer using the built-in clip and let it automatically adjust to your tabletop by tilting down
- Overhead Mode: capture a bird's eye view with a separately available stand for squared-off, level footage
- Portrait Mode: shoots in uncropped 9:16 aspect ratio by rotating gimbal head for improved image in mobile viewing
Easy Setup with Plug-and-Play Capabilities

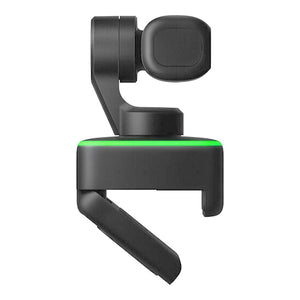

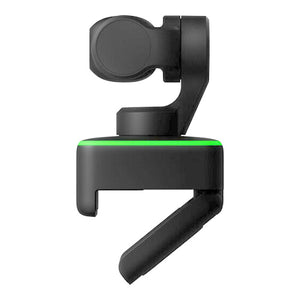

- An integrated clip allows you to place Link directly onto your laptop or desktop computer

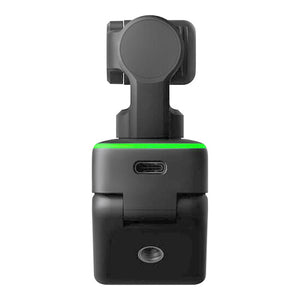

- A USB Type-C port at the rear of the camera delivers power while outputting your video signal to your personal computer using a separately available USB cable.
- At the bottom of the camera, you'll find a 1/4"-20 thread for attachment to desktop tripods or other accessories.
Other Integrated Features
- Once inactive for 10 seconds, the gimbal-style lens automatically points downwards
- Dual noise-cancelling microphones reduce background noise with automatic gain control and de-reverberation to amplify voice.
- Manually adjust brightness, exposure, gimbal position, and more with Link Controller desktop software.
SPECIFICATIONS
- Video Resolution
- 4K@24/25/30fps, 1080p@24/25/30/50/60fps, 720p@24/25/30/50/60fps
- Video Coding Format
- H.264 (all resolutions and frame rates), MJPEG (4K@24/25fps, 1080p all frame rates, 720p all frame rates)
- ISO
- 100-3200
- Exposure Compensation
- +/-3 EV
- Shutter Speed
- 1/8000-1/30s
- White Balance
- 2000-10000K
- Aperture
- F1.8
- 35mm Equivalent Focal Length
- 26mm
- Fixed FOV
- DFOV 79.5 Degree , HFOV 67 Degree
- Digital Zoom
- Up to 4 x
- Autofocus
- Supported at a distance of 10cm (4in) to Infinite
- Audio
- Dual noise-canceling microphones
- AI Tracking
- Supports with and without AI zoom
- UAC
- 1
- UVC
- 1.1
- Power Consumption
- 5V/1A
- Button
- 1x Touch Key
- Connectivity
- Via USB-C to USB-C cable (USB 2.0) or Type-C to Type-A adapter
- Operating Temperature
- 32 Degree F to 104 Degree F (0 Degree C to 40 Degree C)
- Modes
- Portrait, Whiteboard, DeskView, Overhead
- Mounting Options
- 1/4" mounting point for tripod mounting and a built-in clip for computer screen mounting
- HDR
- Supported for 1080p@24/25/30fps and 720p@24/25/30fps
- Battery
- None
- System Requirements
- Operating System:
Windows 8 or later (Windows 8.1 or higher required for 4K)
macOS 10.10 or later
RAM: 2GB RAM or more for 1080p or higher, 1GB for 720p.
- Dimensions
- 2.71 x 1.61 x 1.77" (69 x 41 x 45mm)
- Weight
- 3.73oz (106g)
