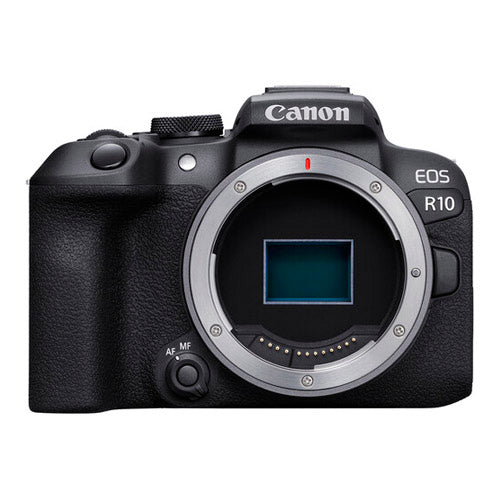

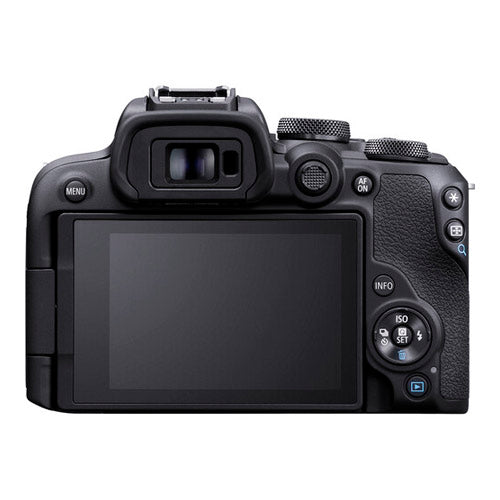

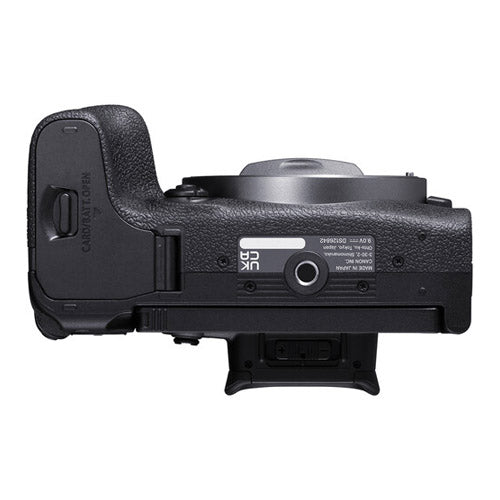

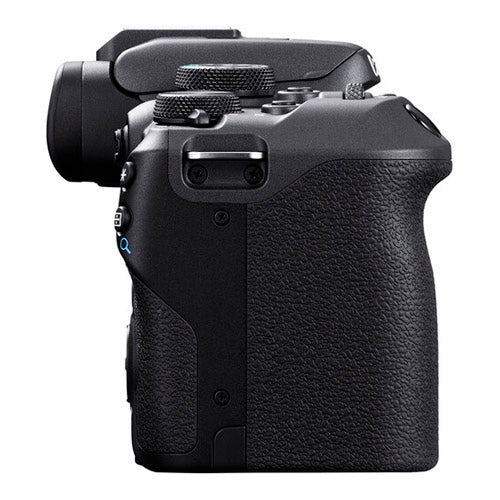

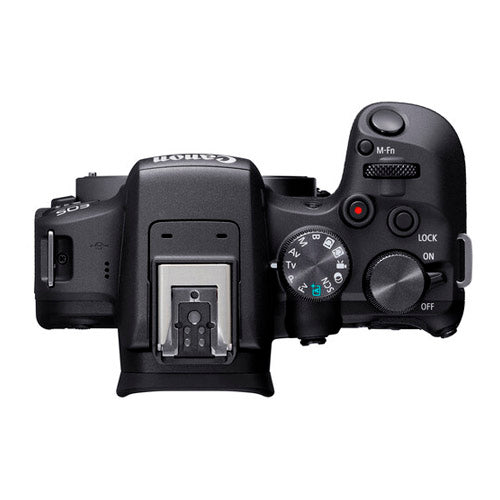

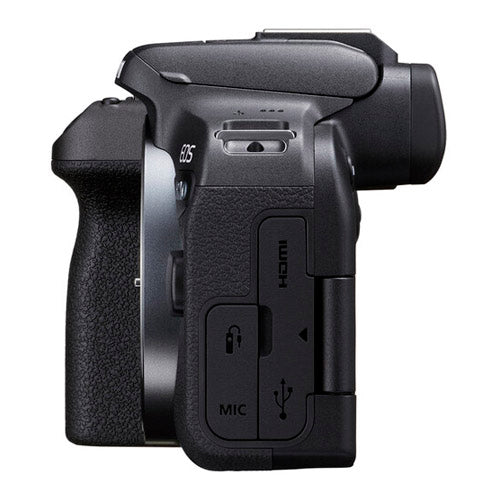

Canon EOS R10 Mirrorless Camera (Body Only)

SPECIFICATIONS

General

Type

Digital single-lens non-reflex AF/AE camera

Image Processor

DIGIC X

Recording Media

SD card
SD card speed class-compatible.
Compatible with UHS-II
Eye-Fi cards and Multimedia cards (MMC) are not supported.

Compatible Lenses

Canon RF-S/RF lens group (excluding EF, EF-S and EF-M lenses)
When using Mount Adapter EF-EOS R: Canon EF or EF-S lenses (excluding EF-M lenses)

Lens Mount

Canon RF mount

Image Sensor

Type

CMOS sensor (compatible with Dual Pixel CMOS AF)

Effective pixels

Approx. 24.2 megapixels

Sensor Size

Approx. 22.3 x 14.9 mm

Pixel Size

Approx. 3.72 microm square

Total Pixels

Approx. 25.5 megapixels

Aspect Ratio

3:2 (Horizontal: Vertical)

Color Filter System

RGB primary color filters

Low Pass Filter

Installed in front of the image sensor, non-detachable

Recording System

Recording Format

Compliant to Design rule for Camera File system 2.0 and Exif 2.31.

Image Format

Still: JPEG, HEIF, RAW, Dual Pixel RAW, Raw Burst, C-RAW (CR3); Movies: ALL-I, IPB, IPB Light

HDR Mode-Continuous Shooting

(1) 1 shot only
(2) Every shot

Advanced shooting operations

(1) Focus Bracketing
(2) Interval Timer
(3) Bulb Timer
(4) Multi-Shot NR

File Size

3:2 Aspect Ratio
Large/HEIF/RAW: 6000 x 4000
Medium: 3984 x 2656
Small 1: 2976 x 1984
Small 2: 2400 x 1600

4:3 Aspect Ratio
Large: 5328 x 4000
Medium: 3552 x 2664
Small 1: 2656 x 1992
Small 2: 2112 x 1600
RAW: 6000 x 4000

File Size (Contd.)

16:9 Aspect Ratio
Large: 6000 x 3368
Medium: 3984 x 2240
Small 1: 2976 x 1680
Small 2: 2400 x 1344
RAW: 6000 x 4000

1:1 Aspect Ratio
Large: 4000 x 4000
Medium: 2656 x 2656
Small 1: 1984 x 1984
Small 2: 1600 x 1600
RAW: 6000 x 4000

RAW + JPEG / HEIF Simultaneous Recording

Simultaneous recording of any combination of RAW/C-RAW and JPEG/HEIF image-recording quality is supported.

Color Space

Selectable between sRGB and Adobe RGB

Picture Style

Auto
Standard
Portrait
Landscape
Fine Detail
Neutral
Faithful
Monochrome
User Defined 1-3

White Balance

Settings

Auto (Ambience priority/White priority)
Day Light
Shade
Cloudy
Tungsten light
White fluorescent light
Flash
Custom (Custom WB)
Color temperature

Auto White Balance

Option between ambience priority and white priority settings.

White Balance Shift

Blue/amber bias: +/-9 levels
Magenta/green bias: +/-9 levels
Corrected in reference to the current WB mode's color temperature.
Blue/amber and magenta/green shift can be set at the same time.

Viewfinder

Type

OLED color electronic viewfinder; approx. 2.36 million dots resolution

Coverage

Approx. 100% vertically and horizontally relative to the shooting image area (with image quality L, at approx. 22mm eyepoint).

Magnification / Angle of View

Approx. 0.95x / Approx. 28 degrees (with 3:2 display, a 50mm lens at infinity, -1 m--1)

Eye Point

Approx. 22mm (at -1 m-1 from the eyepiece lens end)

Dioptric Adjustment Range

Approx. -3.0 to + 1.0 m-1 (dpt)

Autofocus

Focus Method

Dual Pixel CMOS AF

Number of AF zones

AF area: Horizontal: Approx. 100% x Vertical: Approx. 100%
Stills: Max. 651 zones (31 x 21)
Movies: Max. 527 zones (31 x 17)

AF Working Range

EV -4 to 20 (f/1.2 lens, center AF point, One-Shot AF, at room temperature, ISO 100)

Focusing brightness range (in movie)

Full HD 29.97fps : EV -3.5 to 20
With an f/1.2 lens, center AF point, One-Shot AF,at room temperature, ISO 100

AF Methods

Whole area AF
Spot AF
1-point AF
Expand AF Area (Above, below, left and right/Around)
Expand AF Area: Around
Flexible Zone AF 1,2,3

Subject to Detect

People, Animals, Vehicles, No Priority

Focus mode switch

AF / MF
Applies when an RF or RF-S lens without a focus mode switch is attached.
When lenses with a focus mode switch are attached, the setting on the lens takes precedence.

Flash

Built-in Flash

Yes

Exposure Control

Metering Modes

Real-time metering with image sensor (384 [24x16 zone metering])
Evaluative metering
Partial metering (approx. 5.8% of the area at the center of the screen)
Spot metering (approx. 2.9% of the area at the center of the screen)
Center-weighted average metering

Metering Range

Still Photo Shooting : EV -2 to 20 (at room temperature, ISO 100)
Movie Recording: EV 0 to 20 (at room temperature, ISO 100)

AE Lock

Auto AE lock
The metering mode for AE lock after one-shot focus can be customized in the AE lock meter menu.
User-applied AE lock
In the Fv, P, Tv, Av and M modes, enabled with the AE lock button. (Press again to update.)
Enabled in all metering modes.

Shutter

Type

Mechanical
Electronic 1st-Curtain
Electronic Shutter (1st and 2nd curtain - silent)

Shutter Speeds

When [Mechanical] or [Elec. 1st- curtain] is set: 1/4000-30 sec, bulb
When [Electronic] is set: 1/4000-30 sec.

X-sync Speed

Mechanical Shutter: 1/200 sec.
Elec. 1st-curtain: 1/250 sec.

Shutter Release

Soft-touch electromagnetic release

Self Timer

10-sec. delay, 2-sec. delay

External Speedlite

E-TTL balance

Ambience priority, standard, flash priority

Compatible E-TTL Speedlites

Canon EX- and EL-series Speedlites

E-TTL II Flash Meterings

Evaluative (Face Priority)
Evaluative
Average

Slow Sync (P/Av modes)

Mechanical Shutter
1/200-30 sec. auto
1/200-1/60 sec. auto
1/200 sec. (fixed)

Electronic 1st curtain
1/250-30 sec. auto
1/250-1/60 sec. auto
1/250 sec. (fixed)

Flash Function Menu

Provided for EX- and EL-series Speedlites

Flash Exposure Compensation

+/-3 stops in 1/3- or 1/2-stop increments

Continuous flash control

E-TTL each shot
E-TTL 1st shot

Video Shooting

Focusing

Dual Pixel CMOS AF II

Movie Digital IS

Supported

Exposure Compensation

+/-3 stops in 1/3- or 1/2-stop increments

Canon Log

Not supported

Temperature Warning

The camera warns of rising internal temperatures by means of icons and indicators.

Estimated Camera Recovery Time

Estimated recovery times are indicated below. These are affected by various factors such as ambient temperature, continued camera operation and the selected shooting resolution. The time until full record time is available, will vary with ambient temperature.

LCD Screen

Type

TFT color, liquid-crystal monitor

Monitor Size

3.0-inch (screen aspect ratio of 3:2)

Dots

Approx. 1.04 million dots

Coverage

Approx. 100% vertically/horizontally

Brightness Control

Manually adjustable to one of seven brightness levels

Interface Languages

29 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Ukraine, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Vietnamese, Hindi, Romanian, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Malay, Indonesian, Japanese)

Playback

Highlight Alert

The white areas with no image data will blink.

Histogram

Brightness and RGB

Quick Control Function

Function

The Quick Control screen is accessed by pressing the Quick Control button during still photo shooting.

Image Protection and Erase

Protection

Single image (select image)
Select range
All images in a folder
All images on card
Unprotect all images on card
All found images (only during image search)
Unprotect all found images

Erase

Except protected images
Select images to erase
Select range
All images in folder
All images on card
All found images

Direct Printing

Wireless Communications

Images can be sent via Wi-Fi to a PictBridge-compatible (Wireless LAN) printer and printed.

DPOF: Digital Print Order Format

DPOF

Compliant to DPOF Version 1.1

Wi-Fi

Standards Compliance

IEEE 802.11b/g/n

Transmission Method

DS-SS modulation (IEEE 802.11b)
OFDM modulation (IEEE 802.11g/n)

Transition Frequency (Central Frequency)

2.4 GHz band
Frequency: 2412 to 2462 MHz Channels: 1 to 11 channels

Communication with a Smartphone

Images can be viewed, controlled, and received using a smartphone.
Remote control of the camera using a smartphone is possible depending on the Camera Connect specifications.
Images can be sent to a smartphone.
Firmware can be downloaded and saved to a card in the camera using Camera Connect.

Remote Operation Using EOS Utility

The camera can be controlled via Wi-Fii using EOS Utility.

Print from Wi-Fi Printers

Supported.

Send Images to a Web Service

Still photos (RAW, C-RAW, HEIF, and JPEG) and movies (MP4) can be uploaded to image.canon server album.
With the image.canon server, images can be sent to social media or a photo album link can be sent (by the image.canon specifications).

Bluetooth

Standards Compliance

Bluetooth Specification Version 4.2 compliant (Bluetooth low energy technology)

Transmission Method

GFSK modulation

Interface

USB Terminal

Hi-Speed USB (USB 2.0) equivalent
Terminal type: USB Type-C
For computer communication / smartphone communication
USB battery charging / camera power supply

Video Out Terminal

HDMI micro OUT terminal Type D (Resolution switches automatically) / CEC not compatible
Images can be displayed through the HDMI output and on screen at the same time.
Images will not be displayed unless (NTSC) or (PAL) is properly set according to the video system of the TV set.

Clean HDMI output

Provided

Microphone Input Terminal

3.5mm diameter stereo mini jack

Headphone Terminal

Not Supported

Remote control terminal

Remote Switch RS-60E3 type terminal supported

Wireless remote control

Compatible with the Wireless Remote Control BR-E1

Multi-function shoe

Supported

Power Source

Battery

LP-E17
With the USB Power Adapter PD-E1, in-camera charging is possible when camera is off.

Battery Check

Automatic battery check when the power switch is turned ON.
Displayed in 4 levels

Start-up Time

Approx. 0.4 sec.
Based on CIPA testing standards.

Operating Environment

Working Temperature Range

32-104 Degree F (0-+40 Degree C)

Working Humidity

85% or less

Battery

Battery Info

Required, included

Battery Material

Lithium-ion

Battery Type

Non universal

Battery Quantity

1

Physical

Dimensions (W x H x D)

Approx. 4.82 x 3.46 x 3.28" (122.5 x 87.8 x 83.4mm)

Weight

Approx. 13.48 oz (382.15g) (Body Only)
Approx. 15.14 oz (429.2g) (With battery and Memory Card)

KEY FEATURES

• 24.2MP APS-C CMOS Sensor
• Dual Pixel CMOS AF II
• 4K30 Video, 4K60 with Crop; HDR-PQ
• 23 fps E. Shutter, 15 fps Mech. Shutter
• 2.36m-Dot OLED EVF
• 1.04m-Dot Vari-Angle Touchscreen LCD
• Multi-Function Shoe, Wi-Fi and Bluetooth

BOX CONTENTS

• Canon EOS R10 Mirrorless Camera
• Canon LP-E17 Lithium-Ion Battery Pack
• Canon LC-E17 Charger for LP-E17 Battery Pack
• Battery Pack Cover
• AC Cable
• Canon R-F-5 Camera Cover
• ER-R10 Camera Strap
• ER-SC2 Shoe Cover
